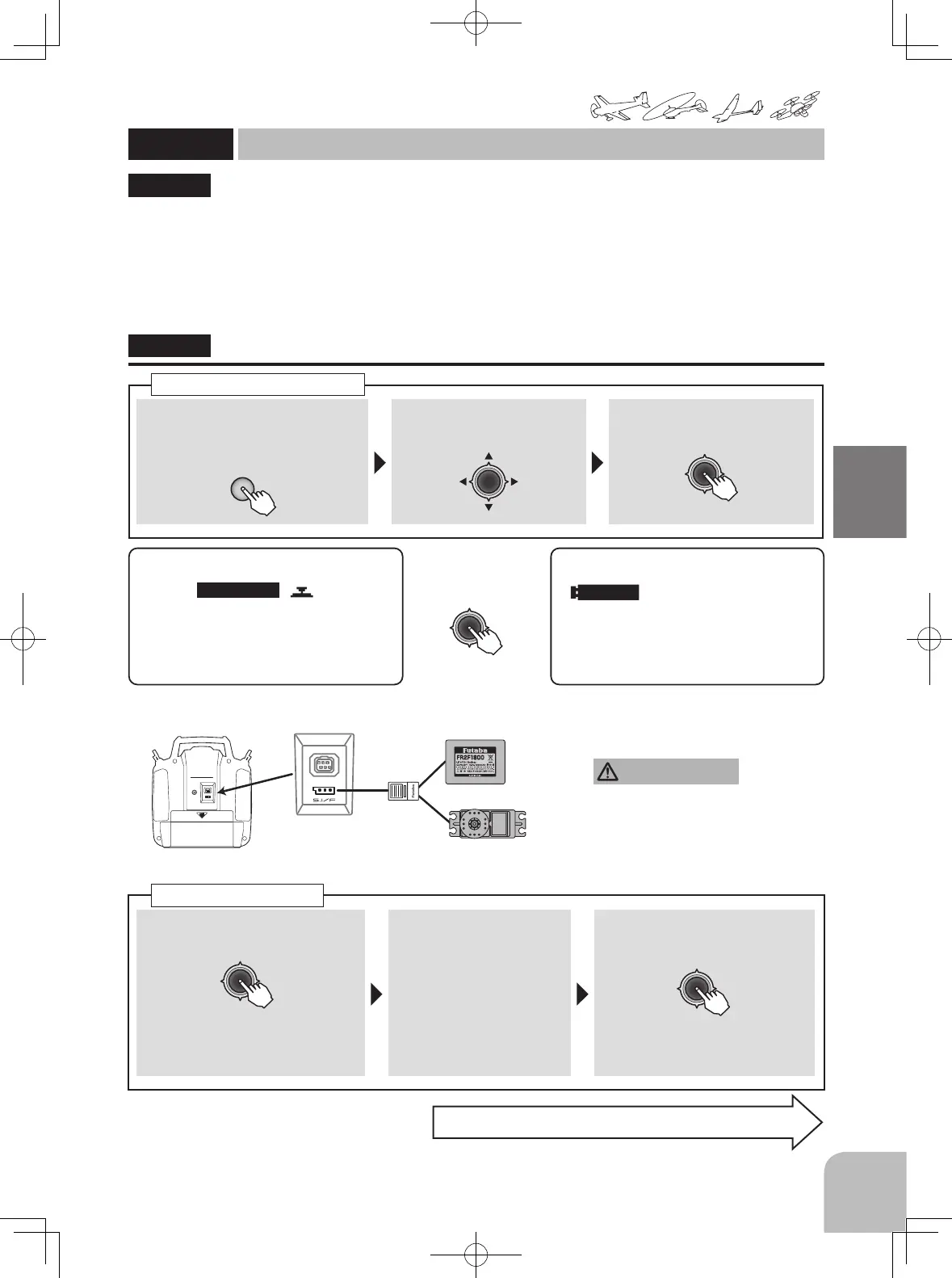

FUTABA T10J - S.BUS Servo Link

89
Common function
Function
Method
① Call the menu screen from the
home screen by pressing the + key
for 1 second.
＋
② Select
from the menu with the Jog
key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
⑤ "READ" is chosen by Jog key, Press
the Jog key for 1 second.
⑥ READ is completed and
the item in which data of
S.BUS servo and a setup
are possible is displayed.
* "COMU-ERROR" :
It is failure of READ. Check a
servo and connection.
⑦ S.BUS servo is set up.
⑧ "WRITE" is chosen and Jog key
is pressed for 1 second.
The writing is done when
"COMPLETE" is shown.
S.BUS Servo setting
SBUS LINK
S.BUS servo link
(Common)
An S.BUS servo can memorize the channel and
various settings you input. Servo setting can be
performed on the T10J screen by wiring the servo
as shown in the gure.
* With some S.BUS(2) servos, there are some functions with
cannot be used. If a function cannot be used, the display
screen will change. (Only the function which can be used by
a servo is displayed.)
* After reading completion, with connection of the above gure,
if a stick is moved, the test of operation of the servo can be
operated and carried out.
"SBUS LINK"
S.BUS/
S.BUS2 Servo
HUB
T10J
Receiver battery
S.BUS SX
PLEASE DO NOT YET
CONNECT A SERVO
MODE IN
S.BUS SX6
(NO LINK)
READ
Next page S.BUS servo function
●
Don't connect a servo until
"MODE IN".
■Otherwise, a servo will vibrate and
break down.
CAUTION
④ Press the Jog key
for 1 second.
⑤ Connect a S.BUS servo to set up.
（1 second）
