FUTABA T10J - Camber Flap Mixing

159
Glider
Function
Method

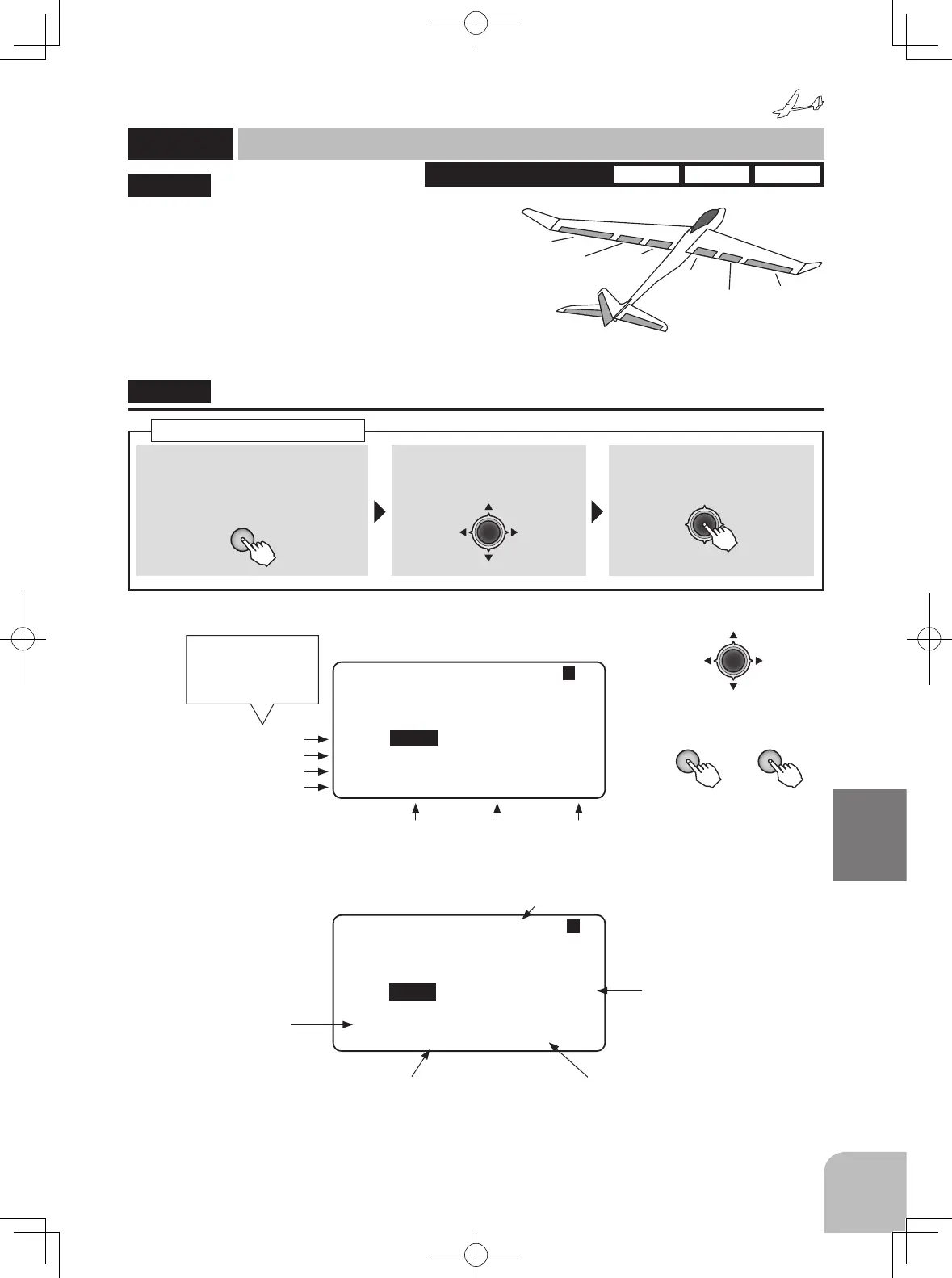

① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
1AIL 2AIL 2AIL+1F 2AIL+2F 2AIL+4FWING TYPE
The up/down travel of each ap (camber aps:
FLP1/2, brake flaps: FLP3/4) can be adjusted
independently for each servo according to the
wing type. The camber aps operates by DT5 and
the brake aps operates by DT6.
●The axis of each ap can be shifted
●The control switch can be changed by AUX
channel
"CAMBR FLP"
CAMBR FLP
Camber ap
(GLIDER)
● Select the setting item
with the Jog key.
● The number is changed
by + key or – key.
● O󱐯set rate● Up side rate
● Selection of whether or
not mixing from brake
FLP to camber FLP is
performed
● Brake FLP to camber FLP
mixing rate and offset
(axis shift)
● Brake FLP to camber FLP
mixing switch selection
● Brake FLP to camber FLP mixing
switch operation direction
● Down side rate
● Flap1
DT5 and DT6 set
the amount of
movement when
the ap is operated.
● Flap2
● Flap3
● Flap4
Camber FLP ２page
[Brakeap → Camberap]
（Currently selected condition）
Aileron1
(CH1)
Aileron2
(CH7)
Flap4
(Brake Flap)
(CH9)
Flap3
(Brake Flap)
(CH8)
Flap2
(Camber Flap)
(CH6)
Flap1
(Camber Flap)
(CH5)
CAMBR FLP 1 2
CAMBER FLAP
(UP) (DN) (OFS)
F1 ▶ +100 ▶ +100 ▶ +0
F2 ▶ +100 ▶ +100 ▶ +0
F3 ▶ +100 ▶ +100 ▶ +0
F4 ▶ +100 ▶ +100 ▶ +0
CAMBR FLP （NORM) 1 2
BRAKE FLAP → CAMBER
(UP) (DN) (OFS)
FL ▶ +100 ▶ +100 ▶ +0
MIX ▶ INH
SW ▶ SwA ▶ DOWN
＋ －
