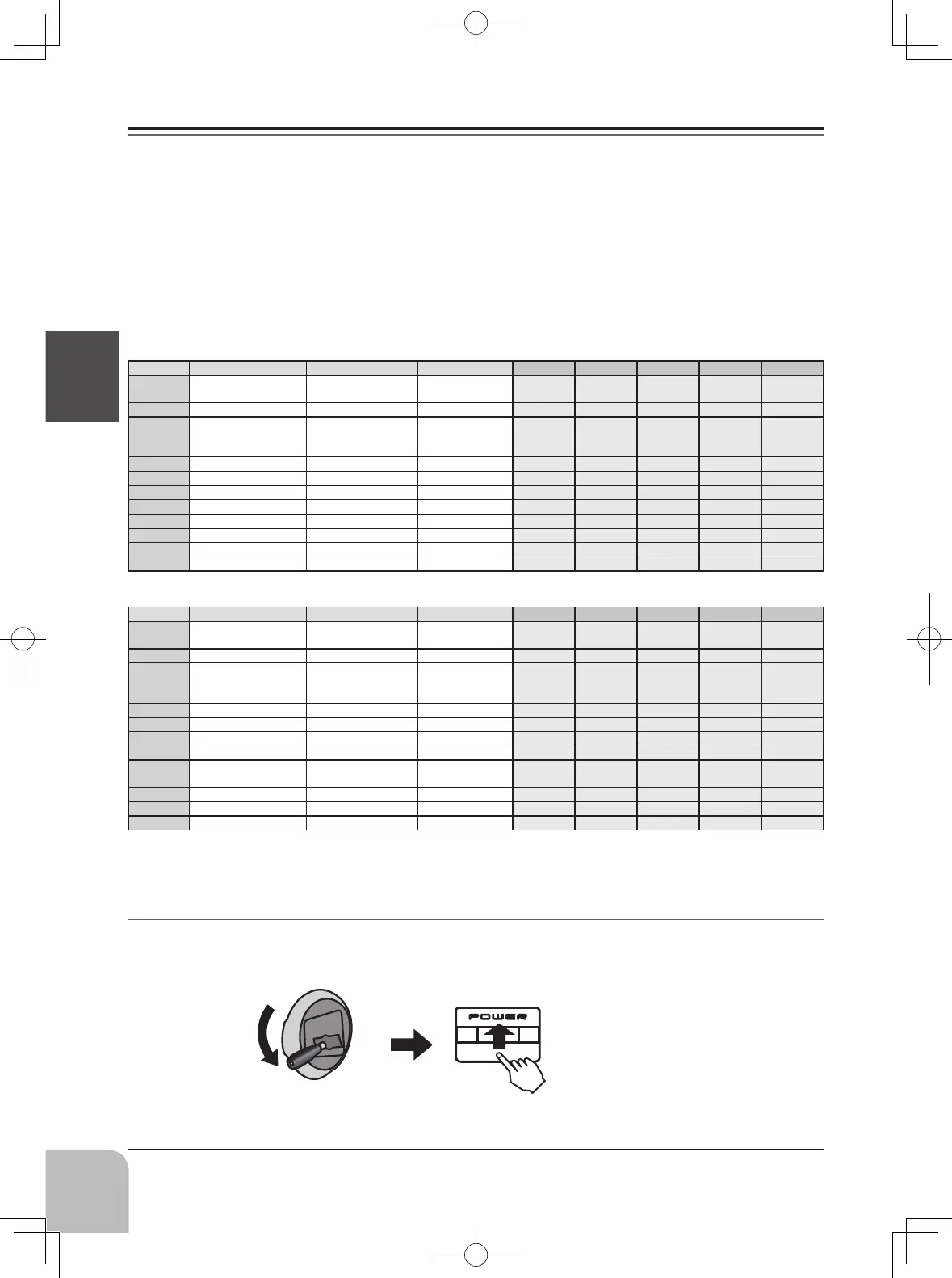

SWITCH ASSIGNMENT TABLE
• The factory default functions activated by the switches and VR for an 10JA Mode 2 for USA
transmitter are shown below.
• Most 10J functions may be reassigned to non-default positions quickly and easily.
• Basic control assignments of channels 5-10 are quickly adjustable in AUX-CH.
• Note that most functions need to be activated in the programming to operate.
• 10JH,10JA and 10JA Mode 2 for USA transmitter functions are similar but reverse certain
switch commands. Always check that you have the desired switch assignment for each function
during set up.
*On the 10JA Mode 2 for USA transmitters, the TOP LEFT SWITCHES are spring-loaded and 2-position; on the 10JA
Mode 1, 10JH, those switches are on the right side. For consistency, the switch position’s designation remains the
same (upper left is F, etc), but the functions are moved to match the switch type.
TO TURN ON THE 10J SYSTEM
First make sure the throttle stick is in the low throttle position.
Push up to turn on.
*If the throttle stick is not in the low position,
you'll have an alarm until the stick is in the low position.
Switch ／ VR ACRO HELI MULTICOPTER Glider A-1 Glider A-2 Glider AF1 Glider AF2 Glider AF4
Switch A Elevator D/R ／ CH9 Elevator D/R ／ CH9 Elevator D/R ／ CH9 Elevator D/R
／ CH9
Elevator D/R
／ CH9
Elevator D/R
／ CH9
Elevator D/R
／ CH9
Elevator D/R
Switch B Rudder D/R Rudder D/R Rudder D/R Rudder D/R Rudder D/R Rudder D/R Rudder D/R Rudder D/R
Switch C (UP) ELE → FLP
(Center/Down) Idle down
(Down) Air brake
Governor ／ 7CH 6CH
Switch D Aileron D/R ／ CH10 Aileron D/R ／ CH10 Aileron D/R ／ CH10 Aileron D/R Aileron D/R Aileron D/R Aileron D/R Aileron D/R
Switch E Idle up1,2 5CH
Switch F Idle up3 ／ Gyro ／ 5CH
Switch G Gear ／ 5CH Throttle hold 6CH 6CH 6CH
Switch H Snap roll ／ Trainer Throttle cut ／ Trainer Trainer Trainer Trainer Trainer Trainer Trainer
VR Flap ／ 6CH Hovering pitch ／ CH8 7CH 10CH 10CH 10CH 10CH 10CH
DT5 7CH 5CH 5CH Flap(5CH) Flap(5/6CH) Flap(5/6CH)
DT6 8CH 8CH 8CH 8CH 8CH 8CH Flap(8/9CH)
Switch ／ VR ACRO HELI MULTICOPTER Glider A-1 Glider A-2 Glider AF1 Glider AF2 Glider AF4
Switch A Elevator D/R ／ CH9 Elevator D/R ／ CH9 Elevator D/R ／ CH9 Elevator D/R
／ CH9
Elevator D/R
／ CH9
Elevator D/R
／ CH9
Elevator D/R
／ CH9
Elevator D/R
Switch B Rudder D/R Rudder D/R Rudder D/R Rudder D/R Rudder D/R Rudder D/R Rudder D/R Rudder D/R
Switch C (UP) ELE → FLP
(Center/Down) Idle down
(Down) Air brake
Governor ／ 7CH 6CH
Switch D Aileron D/R ／ CH10 Aileron D/R ／ CH10 Aileron D/R ／ CH10 Aileron D/R Aileron D/R Aileron D/R Aileron D/R Aileron D/R
Switch E Gear ／ 5CH Throttle hold 5CH
Switch F Snap roll ／ Trainer Trainer Trainer Trainer Trainer Trainer Trainer Trainer
Switch G Idle up1,2 6CH 6CH 6CH
Switch H Throttle cut ／ Idle up3
／ Gyro ／ 5CH
VR Flap ／ 6CH Hovering pitch ／ CH8 7CH 10CH 10CH 10CH 10CH 10CH
DT5 7CH 5CH 5CH Flap(5CH) Flap(5/6CH) Flap(5/6CH)
DT6 8CH 8CH 8CH 8CH 8CH 8CH Flap(8/9CH)
10JA Mode 2 transmitters for USA, the TOP LEFT SWITCHES are spring-loaded and 2-position
10JA , 10JH, the TOP RIGHT SWITCHES are spring-loaded and 2-position
