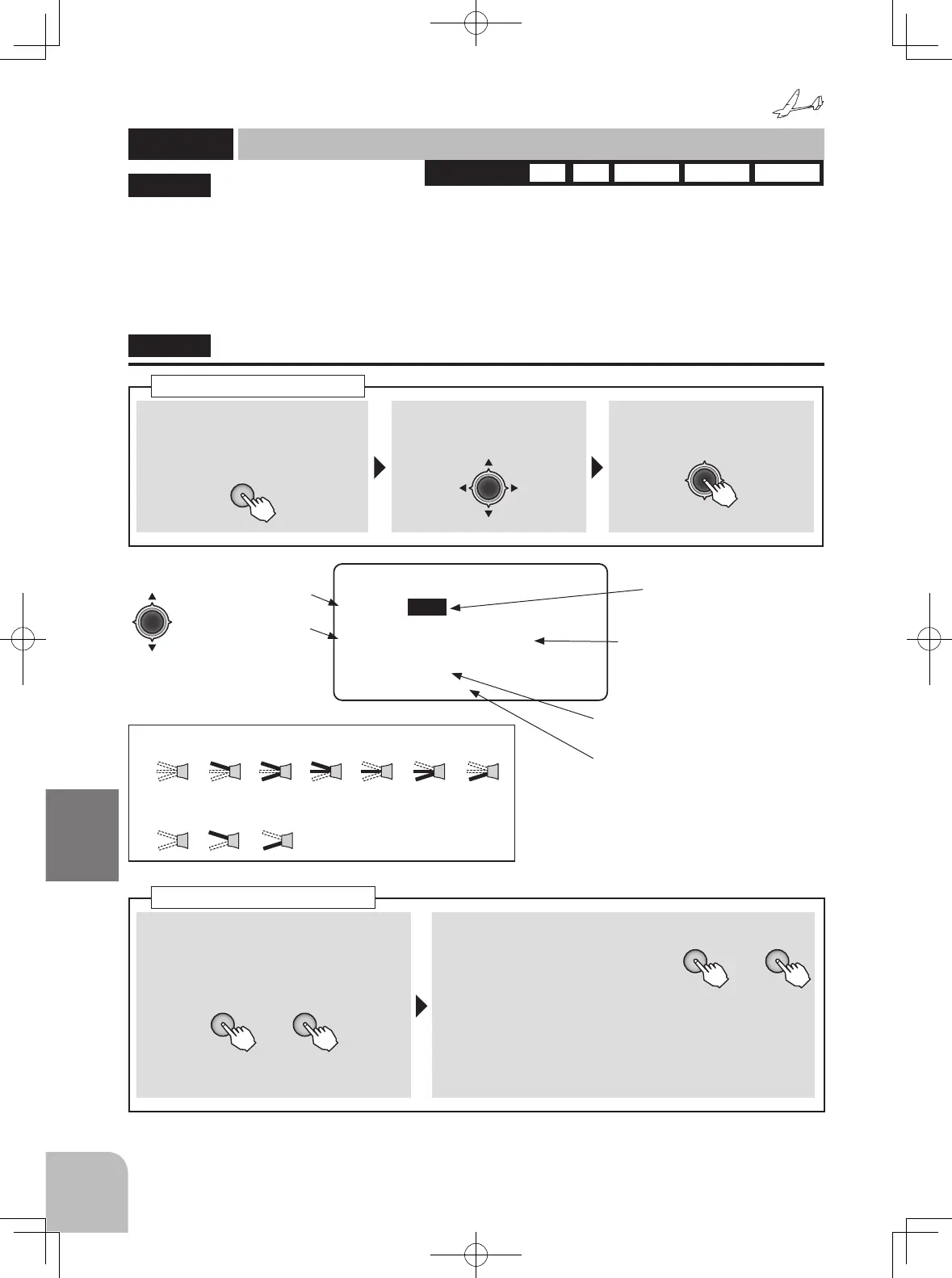

① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
1AIL 2AIL 2AIL+1F 2AIL+2F 2AIL+4FWING TYPE
■ Activating the function
① Select the "MIX" item and then select
the "ON" by pressing the + key or –
key.
＋ －
or
● When you do not use a function, set
to the "INH" side.
■ Mixing rate
＋ －
or
② Select the "RATE" item and
then adjust the mixing rate by
pressing the + key or – key.
Range：-100 ～ +100%
Default：0%
● When you want to return the set value to the initial value,
press the + key and – key simultaneously.However,
polarity does not return.
RUD → AIL
This function is used when you want to mix
the ailerons with rudder input. It is used when
rudder is applied during roll maneuvers such
as, knife edge flight. It can be used to turn or
bank scale models, large models, etc. like a full-
size aircraft.
●When the mixing direction is reversed by the
linkage, adjustments can be made by changing
the rate polarity.
"RUD → AIL"
RUD → AIL
Rudder → Aileron
(GLIDER)
Activating the function
Mixing rate
● When not using this function,
select INH.
● Select the setting item
with the Jog key.
● The ON/OFF switch can be changed.
(Selected by Jog key and changed by
+ key.)
● Sets the ON/OFF direction of the
selected switch.
● When condition was used, the display
can be switched and each connection
can be set by switching the condition
switch.
ON
ON
ON
ON
OFF
OFF
ON
ON
OFF
ON
ON
OFF
ON ON
OFF
OFF
ON
OFF
ON
OFF
OFF
NULL UP UP&DWN UP&CNT CENTER CNT&DN DOWN
● Switch ON/OFF 表示
3 Position Switch
ON
ON
ON
OFF
OFF
NULL UP DOWN
2
Position Switch
RUD→AIL
MIX ▶ INH
RATE ▶ 0% (NORM)
POSI▶ DOWN
SW ▶ SWA
