FUTABA T10J - Telemetry:temp

75
Common function
TEMP : Display of SBS-01T(Option), and alarm setup
TEMP
(ALARM) (VIB) (LIMIT)
UP▶INH ▶OFF ▶ 30 ℃
DN▶INH ▶OFF ▶ -20 ℃
SPEECH▶ INH SW▶ NULL
15 ℃
10 ℃ / 30 ℃MIN/MAX=
ON
2 Position 3 Position
OFF
ON
OFF
OFF

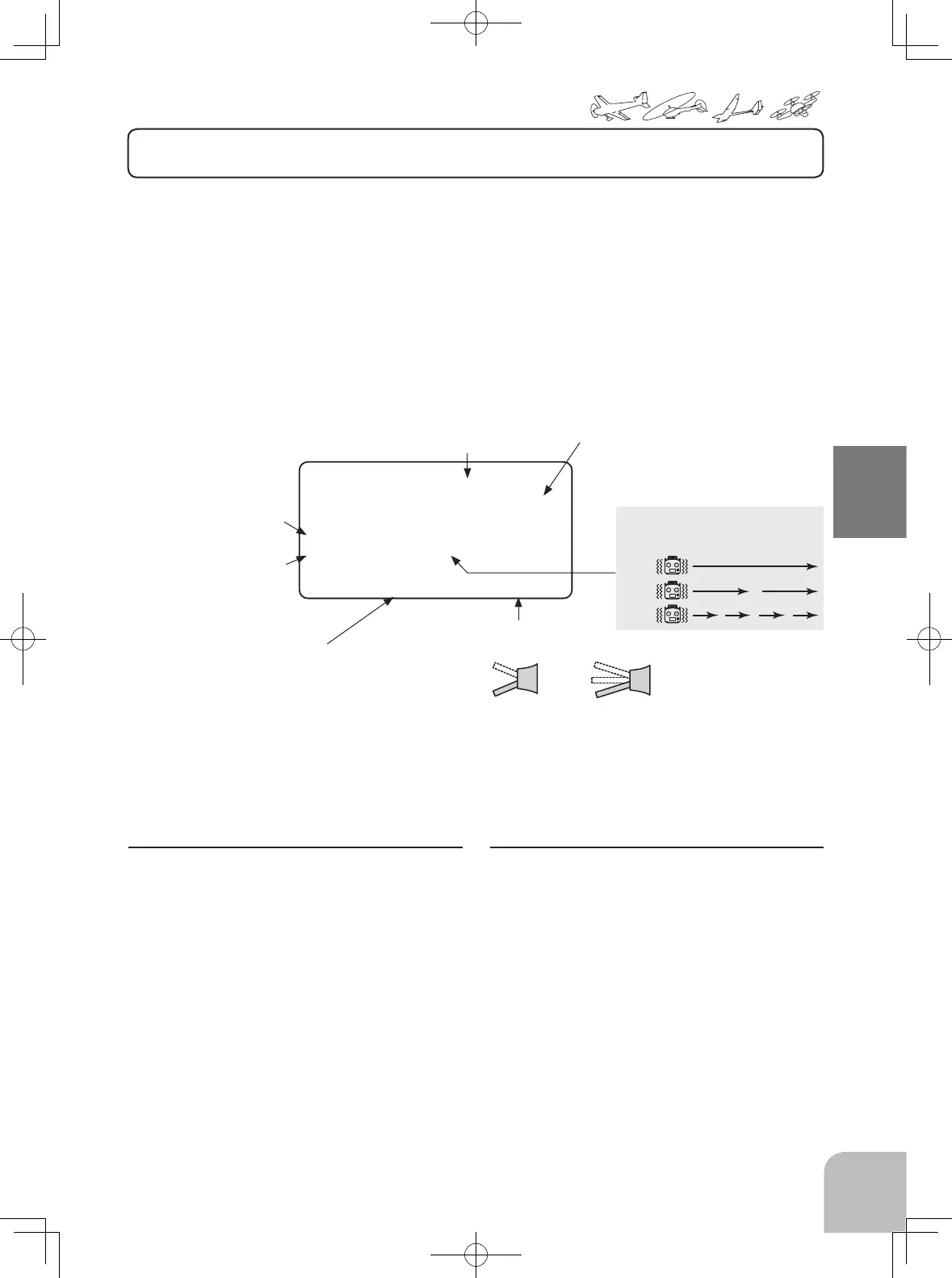

TEMP is a screen which displays/sets up
the temperature information from an optional
temperature sensor.
The temperature of the model (engine, motor,
battery etc.) which is ying can be displayed.
If it becomes higher or lower than the setting an
alarm and/or vibration will alert you.
● Conversion of a display unit is performed by "TELEMETRY
UNIT" of "PARAMETER".
● Select [TEMP] in the TELEMETRY screen and access
the setup screen shown below by press the Jog
key.
● Temperature
● The maximum and the minimum
when powering ON are shown.
● Maximum and minimum
date reset
by pressing the Jog key for 1 second.
● "DN" will show that an
alarm will start when
the temperature
drops below the set
value.
●You can hear the
temperature through an
earphone or headset, by
activating the Speech
function.
● Switch selection
● "UP"will show that an
alarm will start when
the temperature rises
above the set value.
Alert set : Hot warning
1. Move the cursor to the UP:(ALERT) item.
2. Select the ACT mode by press the +-key.
3. Move the cursor to the UP:(LIMIT)[value]item.
4. Ajust the rate by press the +-key.
Initial value: +100
℃
Adjustment range: -20
℃
~200
℃
(UP:(LIMIT)
≧
DN:(LIMIT))
*When the + - key simultaneous press, the rate is reset to the
initial value.
(To terminate the input and return to the
original state, touch the END key.)
Alert set : Low-temperature warning
1. Move the cursor to the DN:(ALERT) item.
2. Select the ACT mode by press the +-key.
3. Move the cursor to the DN:(LIMIT)[value]item.
4. Ajust the rate by press the +-key.
Initial value: 0
℃
Adjustment range: -20
℃
~200
℃
(UP:(LIMIT)
≧
DN:(LIMIT))
*When the + - key simultaneous press, the rate is reset to the
initial value.
(To terminate the input and return to the
original state, touch the END key.)
TYPE 1
TYPE 2
TYPE 3
"VIB" type
If the following types are selected, the
transmitter will vibrate during the warning.
*A temperature sensor must be installed in the aircraft.
