ADJUSTING DISPLAY CONTRAST

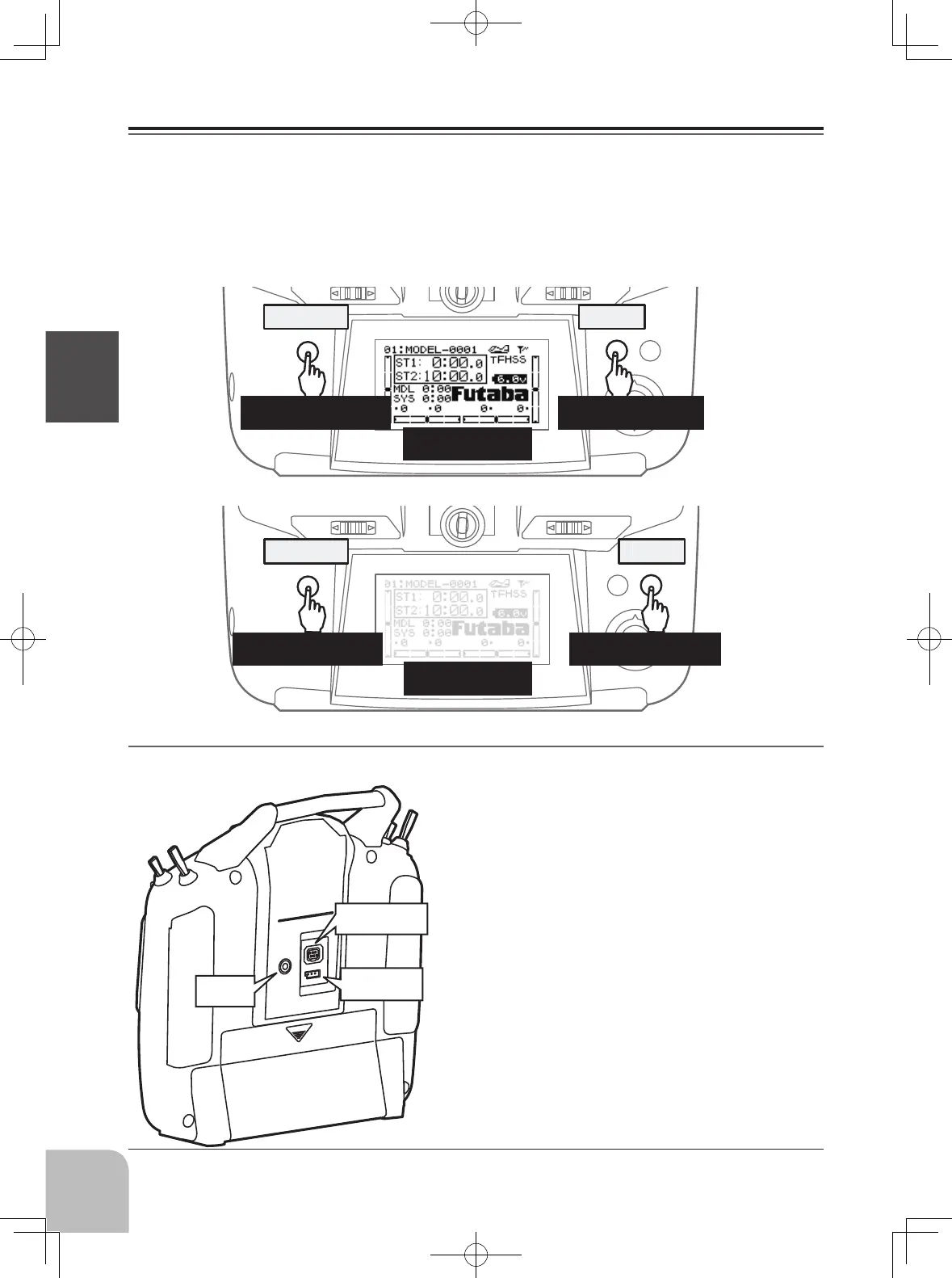

To adjust the display contrast, from the home menu press and hold the END BUTTON.
Push the
＋－
KEY while still holding the END BUTTON:
＋
KEY to brighten
－
KEY to darken the display
CONNECTOR / PLUG
END Key
＋ Key
1.Press and hold 2.Push the +key
Bright
END Key
－ Key
Dark
1.Press and hold 2.Push the －key
Connector for trainer function
When you use the trainer function, connect the
optional trainer cable between the transmitters
for teacher and student.
*You can set the trainer function on the Trainer Function
screen.
S.BUS connector (S.I/F)
When setting an S.BUS servo and telemetry
sensor, connect them both here.
(Supply power by 3-way hub or 2-way cord.)
Earphone plug
The telemetry data can be listened to by
plugging in commercial 3.5mm earphones. (See
the telemetry item for the detailed setting.)
Trainer function
connector
S.BUS (S.I/F)
connector
Earphone
Plug
