FUTABA T10J - Telemetry:battery

82
Common function
●Battery voltage
●EXT voltage
*SBS-01V must be installed in the aircraft.

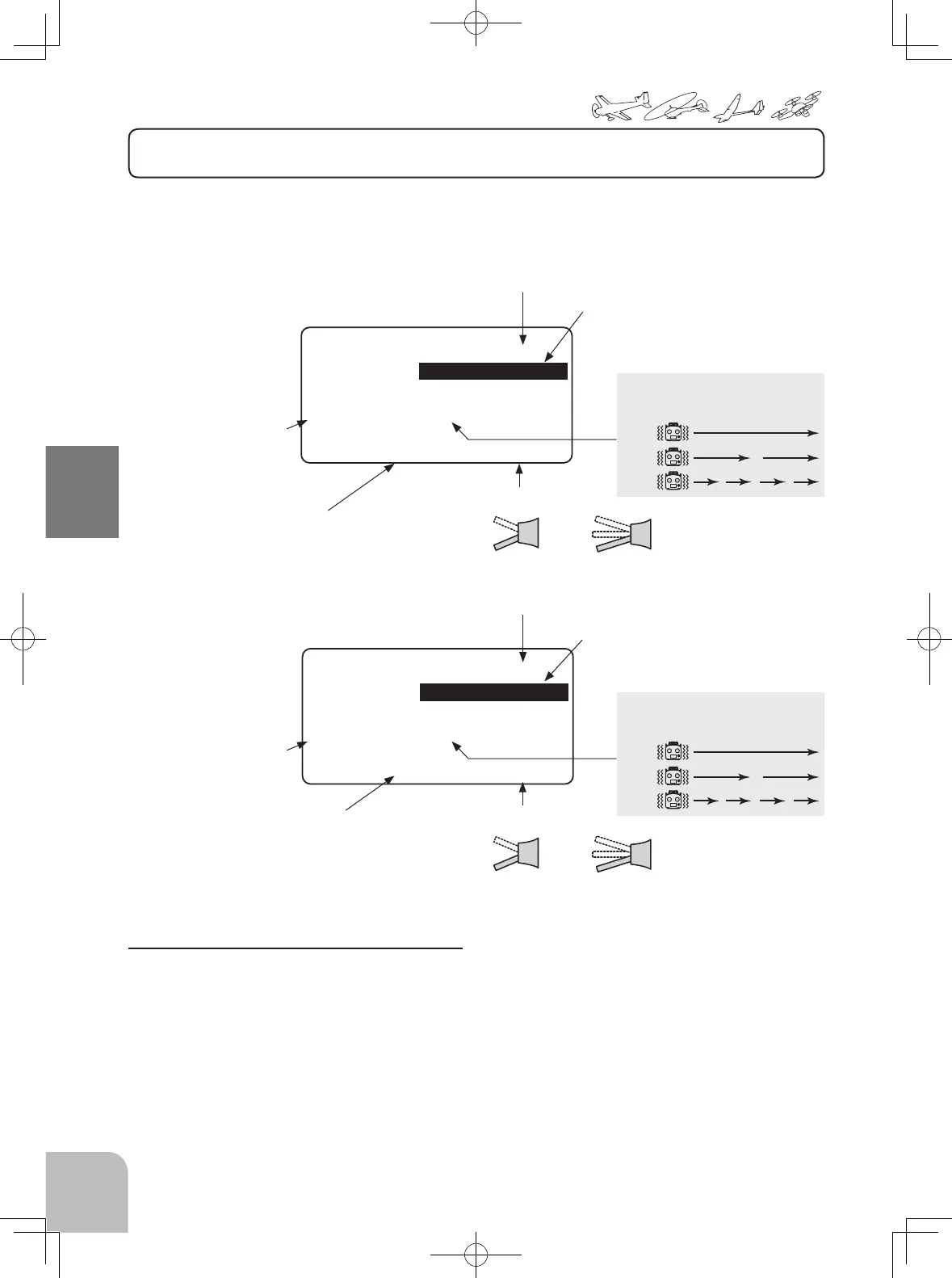

BATTERY / EXT-VOLT: Display of SBS-01V(Option), and alarm setup
BATTERY
(ALARM) (VIB) (LIMIT)
DN▶INH ▶OFF ▶ 6.0V
SPEECH▶ INH SW▶ NULL
0.0V
MIN/MAX= 0.0V / 0.0V
EXT-VOLT
(ALARM) (VIB) (LIMIT)
DN▶INH ▶OFF ▶ 0.0V
SPEECH▶ INH SW▶ NULL
0.0V
MIN/MAX=
0.0V / 0.0V
ON
2 Position 3 Position
OFF
ON
OFF
OFF
ON
2 Position 3 Position
OFF
ON
OFF
OFF
In this screen, the battery voltage is displayed.
In order to use this function, it is necessary to
connect of R3008SB
⇔
SBS-01V
⇔
Battery
SBS-01V measures two batteries. The drive
battery connected to two lines is displayed on EXT-
VOLT. The battery for receivers connected to 3P
lines is displayed here.
●Select [BATTERY] in the TELEMETRY screen and
access the setup screen shown below by press the
Jog key.
●Select [EXT-VOLT] in the TELEMETRY screen and
access the setup screen shown below by press the
Jog key.
●"DN" will show that an
alarm will start when
the EXT-VOLT drops
below the set value.
●"DN" will show that an
alarm will start when
the EXT-VOLT drops
below the set value.
●You can hear the Battery
data through an earphone or
headset, by Activating the
Speech function.
●You can hear the Extra
Voltage data through an
earphone or headset, by
Activating the Speech
function.
●Switch selection
● Switch selection
Alert set : Low-temperature warning
1. Move the cursor to the DN:(ALERT) item.
2. Select the ACT mode by press the +-key.
3. Move the cursor to the DN:(LIMIT)[value]item.
4. Ajust the rate by press the +-key.
Initial value: 5.0V
Adjustment range: 3.5~8.4V(BATTERY)
Adjustment range: 0~70V(EXT-VOLT)
*When the + - key simultaneous press, the rate is reset to the
initial value.
(To terminate the input and return to the
original state, touch the END key.)
TYPE 1
TYPE 2
TYPE 3
"VIB" type
If the following types are selected, the
transmitter will vibrate during the warning.
TYPE 1
TYPE 2
TYPE 3
"VIB" type
If the following types are selected, the
transmitter will vibrate during the warning.
●The maximum and the minimum
when powering ON are shown.
● Maximum and minimum
date reset
by pressing the Jog key for 1 second.
●The maximum and the minimum
when powering ON are shown.
● Maximum and minimum
date reset
by pressing the Jog key for 1 second.
