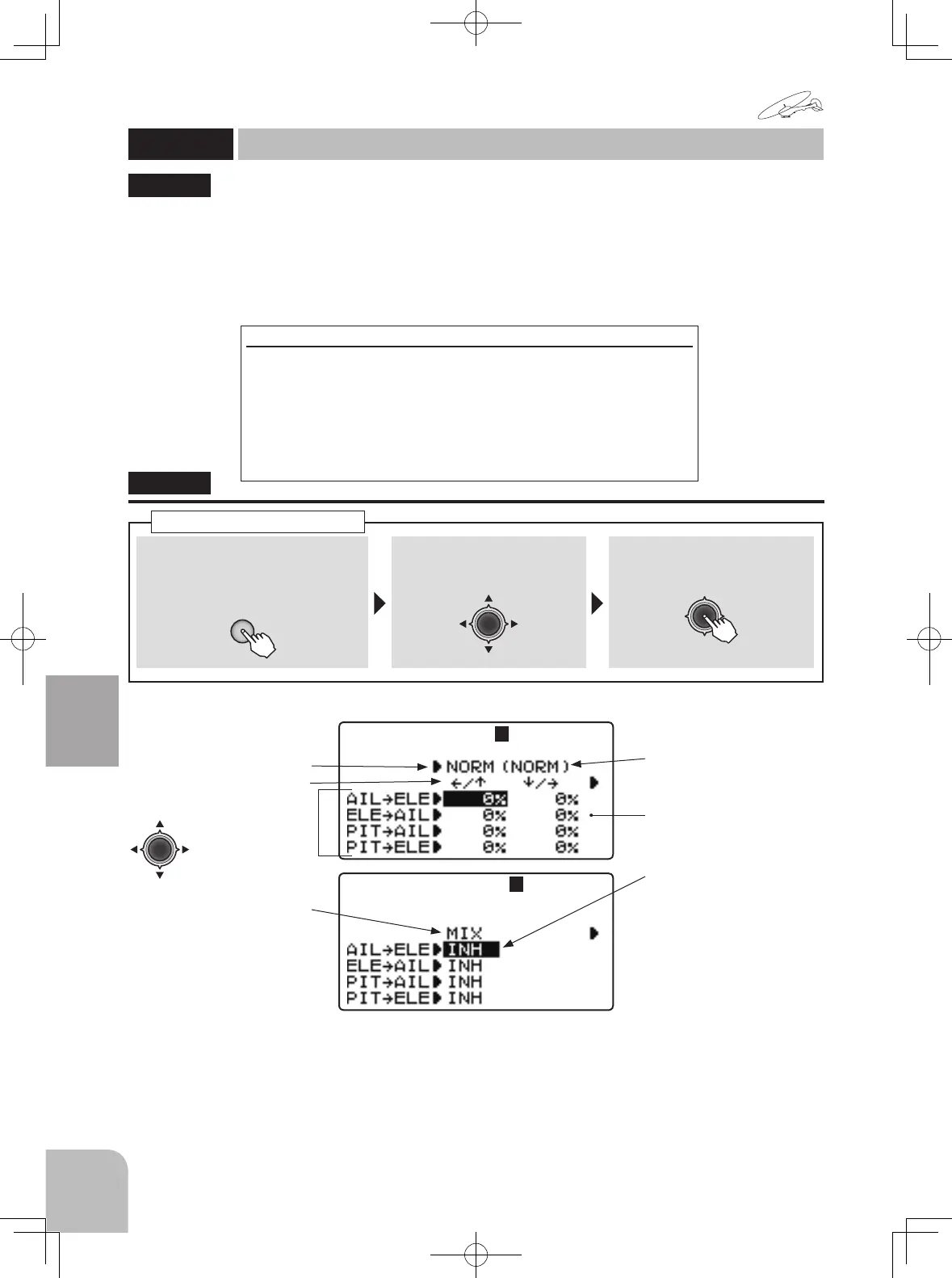

124
① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
This mixing is used to correct the bad tendencies
of the swash plate in the aileron direction and
elevator direction relative to aileron, elevator, and
pitch operations. It adjusts the rate of the direction
that requires correction so that the servo operates
smoothly in the proper direction relative to each
operation.
●The correction amount of each condition can be
set.
●The left and right (up and down) correction
amount can be set for each condition.
"SWH.MIX"
● Select the setting item
with the Jog key.
Condition
Mixing master direction
Mixing rate
Activating the function
（Present condition）
（Rate）
● When not using this function,
select INH.
Example of use: Using to correct bad roll tendencies
① AIL → ELE is set to ON.
② ACTION/ON is common to all conditions. The rate of unused conditions is set to 0%.
③ When the nose drops at right roll and the right side rate is adjusted in the "+"
direction, the elevators move to the up side when the right aileron is deected.
Left roll can be adjusted by left side rate.
However, since the left and right ailerons polarity and elevators operating direction
relationship is reversed; check the correction direction by swash plate operation.
SWH. MIX
Swash mixing
(HELICOPTER)
SWH.MIX 1 2
SWH.MIX 1 2
