FUTABA T10J - S.BUS Wiring Example

Before use
34

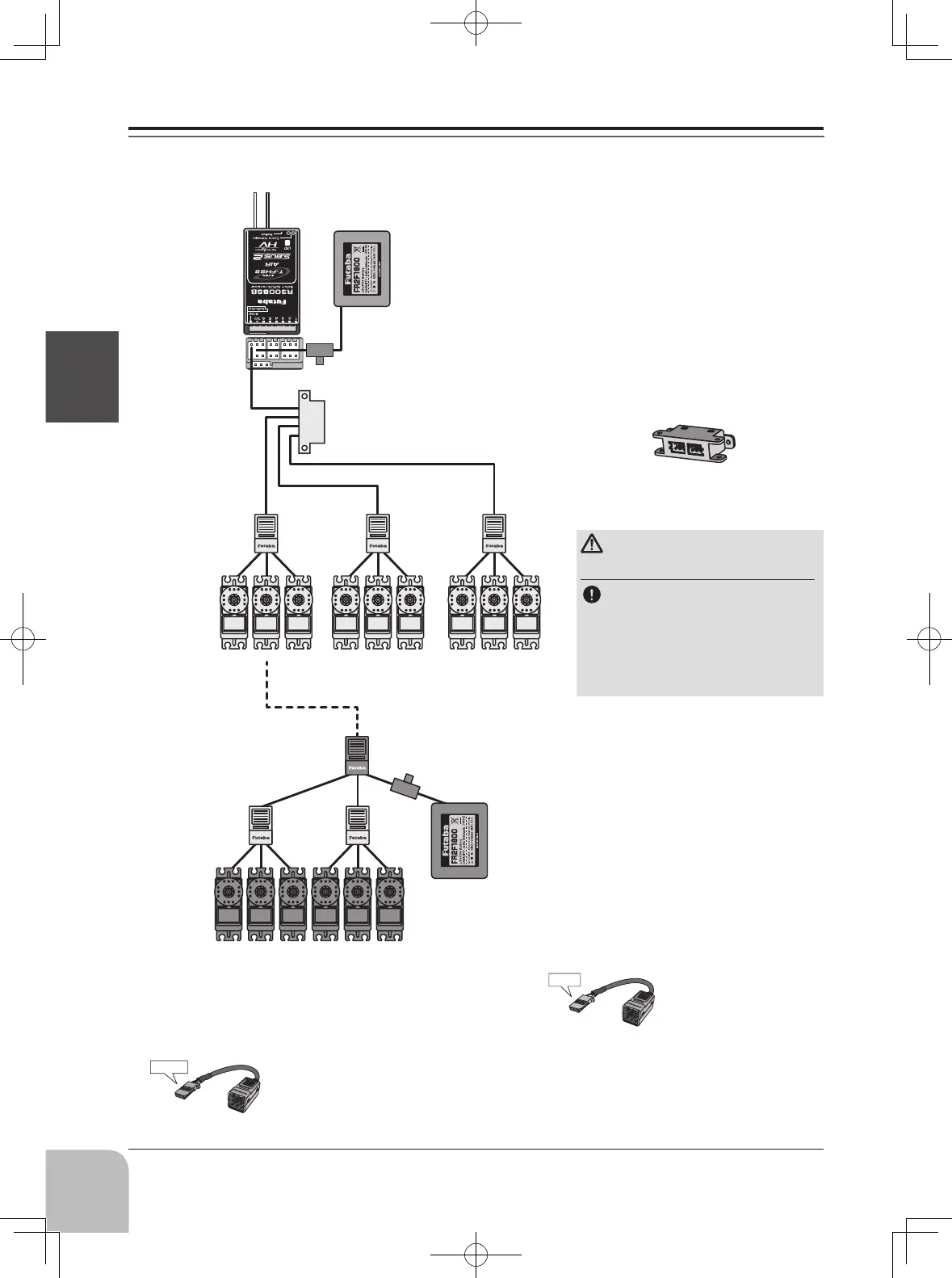

S.BUS WIRING EXAMPLE
Battery
Battery
GY520
Extension
cord
Switch
Switch
Terminal box
HUB
HUB HUB
HUB
HUB
HUB
HUB
（Another power supply）
HUB
S.BUS Servo
S.BUS Servo
Receiver
●S.BUS Servo
Since the channel number is memorized by
the S.BUS itself, any connector can be used.
When the SBD-1 Decoder (sold separately) is
used, ordinary servos can be used with the
S.BUS system.
●When separate power supply used
When a large number of servos are used or
when high current servos are used, the servos
can be driven by a separate power supply by
using a separate Power Supply 3-way Hub.
●
Terminal box
Four connectors can be inserted
Three connectors can be
inserted.
Used when using a separate
power supply battery.
S.BUS
Port
(8/SB)
Orange
Green
Warning
Power supply
Please make sure that you
use a battery that can deliver
enough capacity for the
number and kind of servos
used. Alkaline batteries
cannot be used.
