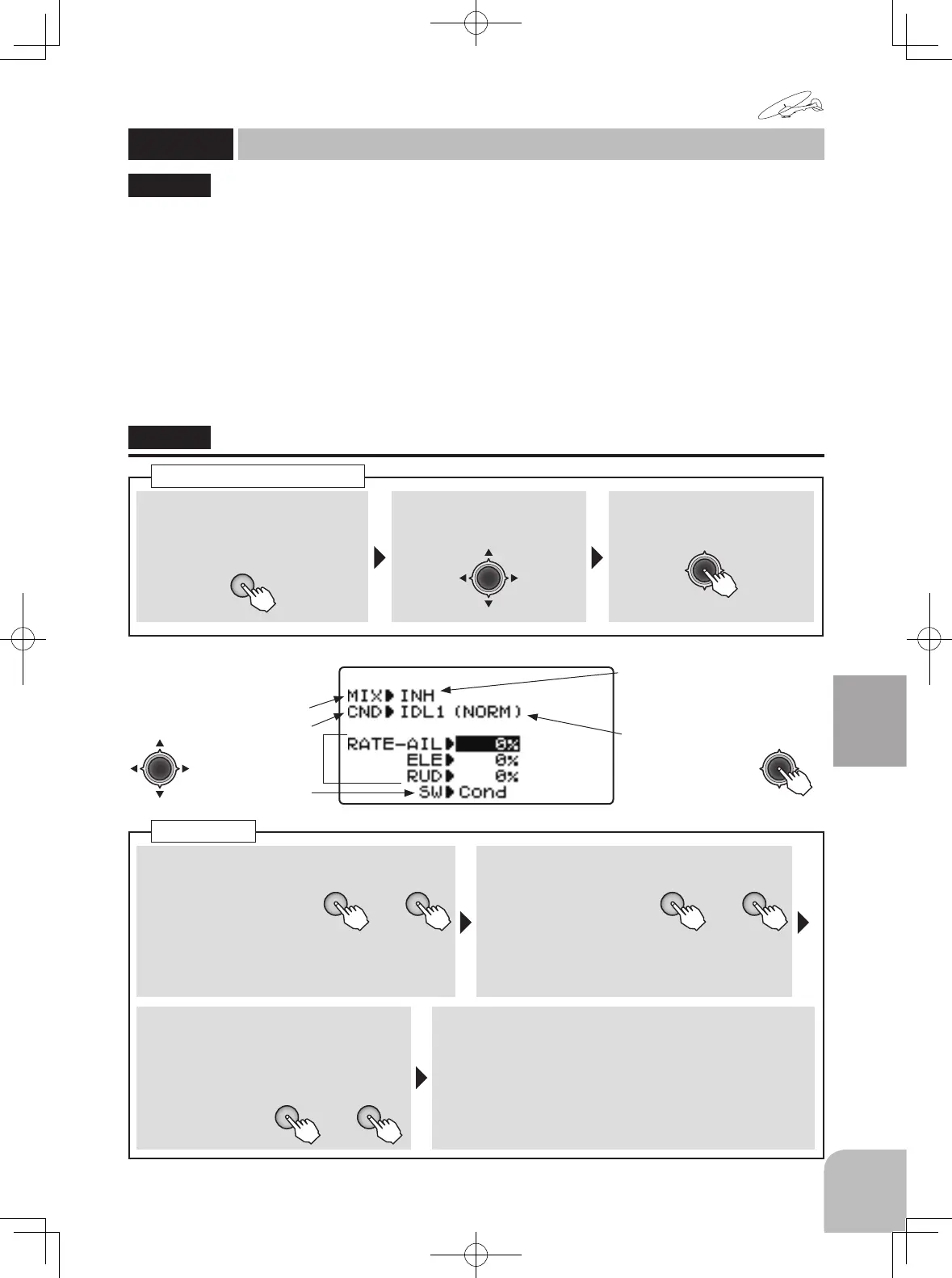

FUTABA T10J - Trim Offset

127
Helicopter
Function
Method
① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
If this trim offset function is used, independent
trim adjustments can be made during hovering and
in the air. This function can offset the ailerons,
elevators, and rudder neutral position by linking
to the set switch or condition. A habit that tends
to appear from the standpoint of helicopter
characteristics when flying at high speed is
possible. This function can correct this habit.
●For a clockwise rotation rotor, since the helicopter
tilts to the right during ight, use the offset function
to set the swash plate so that the helicopter tilts
to the left. Since the direction of the elevators is
different depending on adjustment of the aircraft,
decide the setting direction after ight. When the
gyro is used in the AVCS mode at the rudder, etc.,
the offset rate is made 0% (initial setting) to make
corrections at the gyro side.
●When the switch was selected 1 offset system can
be set for a 2 position switch and 2 offset systems
can be set for a 3 position switch. Linking to
conditions (IDL1
〜
3, HOLD) is also possible.
●When the offset function is on, data adjustment is
possible even by digital trim. The trim adjusted rate
is input in the air. (When the offset function is ON,
the initial screen trim display is linked.)
"OFFSET"
OFFSET
Trim o󱐯set
(HELICOPTER)
■ Activating the function
＋ －
or
① Select the "MIX" item
and then select the
"ON" or "OFF" b y
pressing the + key or –
key.
● When you do not use a function, set to the
"INH" side.
■ Switch selection
＋ －
or
② Select the "SW" item
and then select the
switch by pressing the
+ key or – key.
Range：Cond, SwA ～ SwH
■ Switch direction and condition
selection
③ Select the switch direction and
condition you want to set at the switch
direction and
condition items.
■ O󱐯set rate
④ Select the "RATE" item and then adjust the o󱐯set rate
by pressing the + key or – key.
Range：-120 ～ +120%
Default：0%
● When you want to return the set value to the initial
value, press the + key and – key simultaneously.
Trim o󱐯set
● Select the setting item with
the Jog key.
Activating the function
Switch direction,
Selection of condition
O󱐯set rate
Switch selection
● When not using this Function
select INH. The display of On/O󱐯 is
shown when active and assigned
to a switch.
（Present condition ）
●When "Cond" is chosen,
if Jog key is pushed for
1 second, it will change
to each condition
setting screen.
＋ －
or
OFFSET
