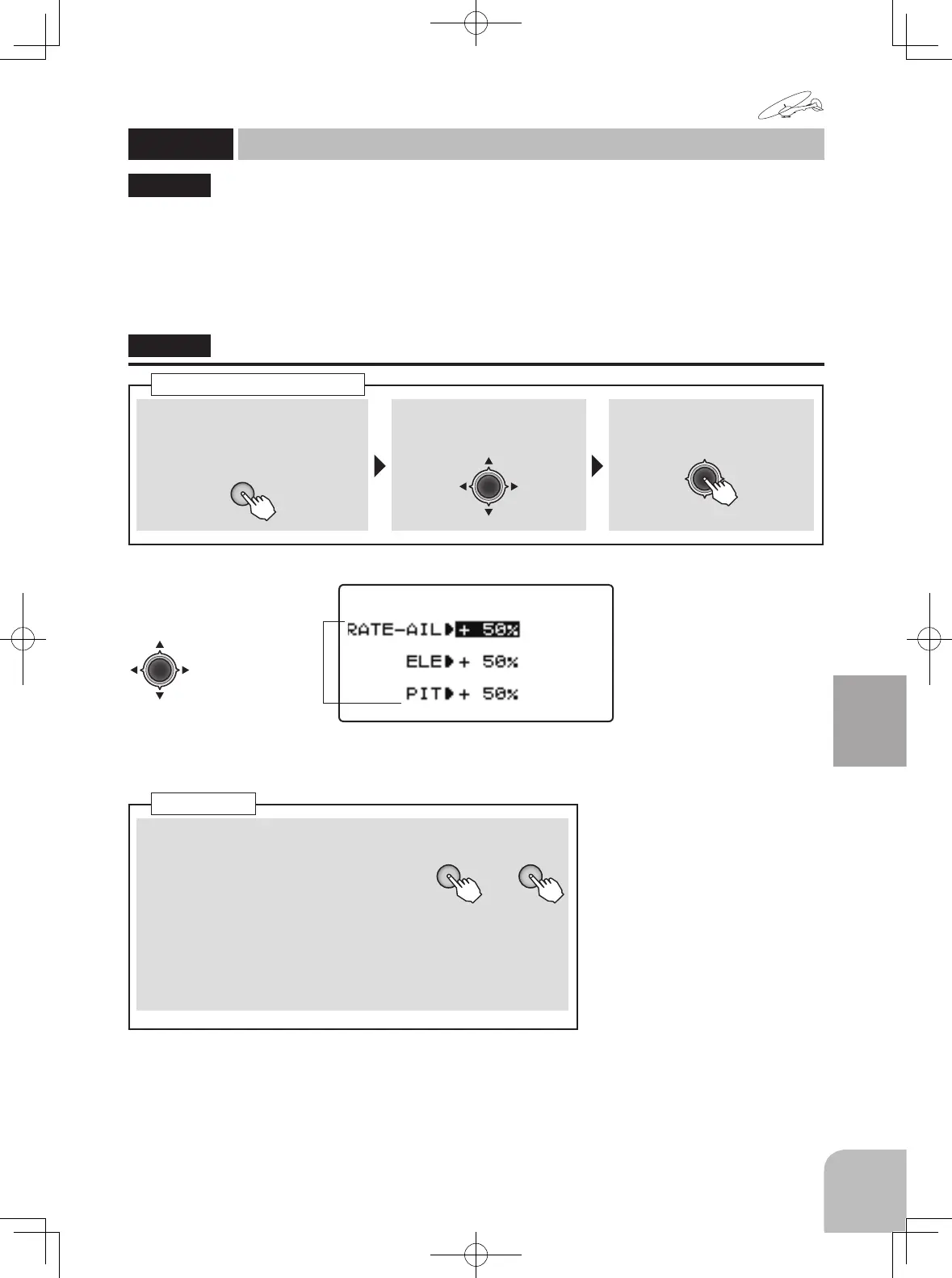

FUTABA T10J - Swash AFR

123
Helicopter
Function
Method
① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
This is the adjustable function rate (AFR) func-
tion when HR3, H-3, HE3, HN3, H-2, H-4, or H4X
is selected as the swash type. The ailerons, eleva-
tors, and pitch steering angle and direction can be
adjusted.
"SWASH AFR"
（When swash type is H-1, this setting screen is not displayed.）
■ Travel adjustment of each function
＋ －
or
① Select each function item of "RATE" and
set the rate by pressing the + key or –
key.
Range：-100 ～ +100%
Default：+50%
● When you want to return the set value to the initial value, press
the + key and – key simultaneously. However, polarity does not
return.
Swash AFR
● Select the setting item
with the Jog key.
Rete
● Depending on the swash type the
screen display is di󱐯erent.
● When the polarity is changed, the
direction of operation is reversed.
NOTE：If the steering angle is too large, linkage binding may occur .
SWASH AFR
Swash AFR
(HELICOPTER)
SWASH AFR
