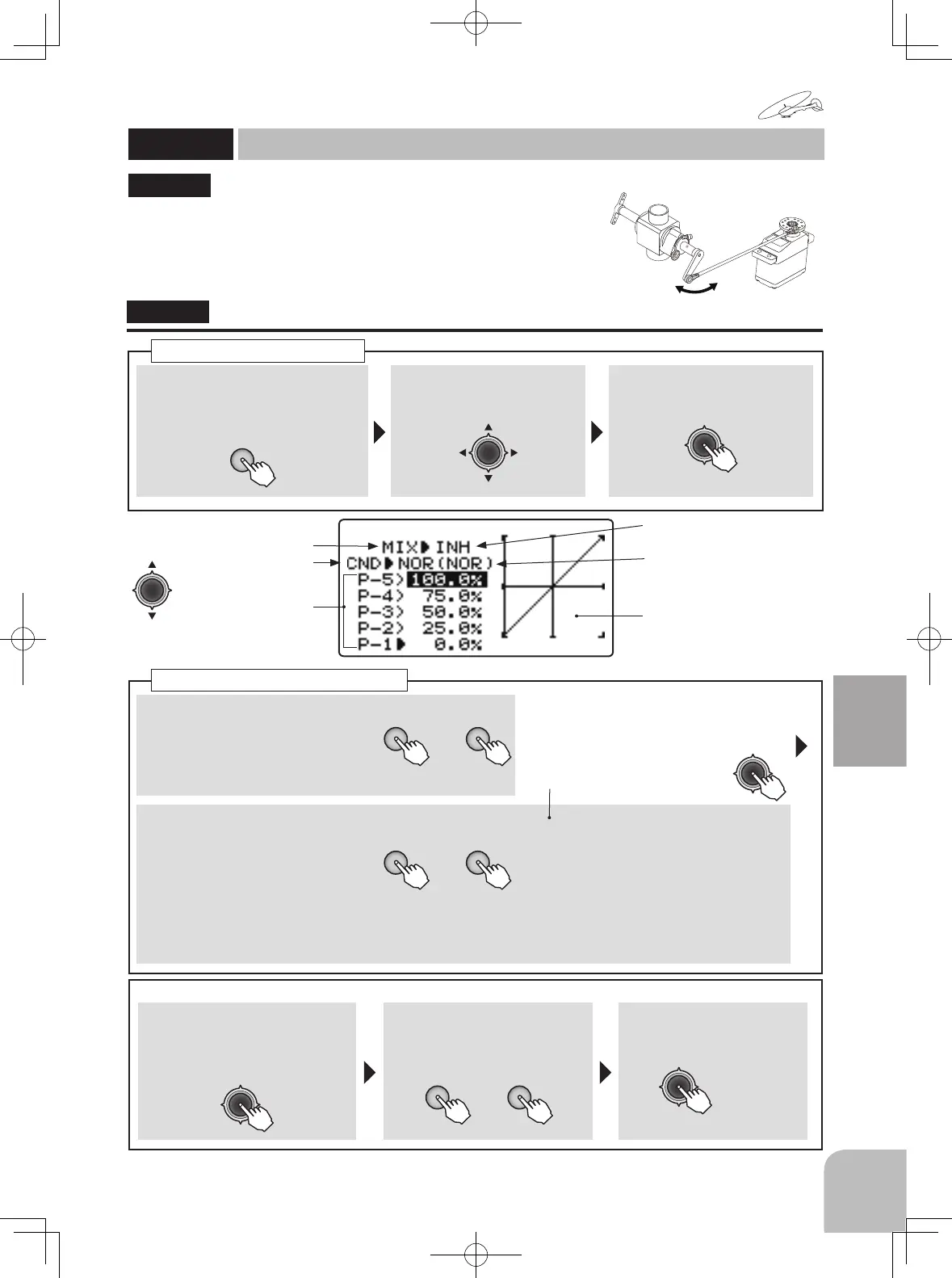

This mixing sets the mixture by a 5 point curve in relation to throttle
stick movement when the engine is equipped with a mixture control
system (needle control or other mixture adjustment). Normal condition
(NOR) idle up use (ID2) and idle up 3 (ID3) can be set independently.
The needle servo connects to CH8 of the transmitter.
Method
① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
"THR → NEEDL"
THR
→
NEEDL
Throttle → Needlemixing（
For helicopters
）
(HELICOPTER)
Activating the function
Condition
5 point curve
set
● Select the setting item
with the Jog key.
● When not using this function,
select INH.
（Present condition）
● The CURVE settings are
displayed by a curve.
■ Activating the function
＋ －
or
①
Select the "MIX" item and then
select the "ON" or "OFF" by
pressing the + key or – key.
● When you do not use a function, set to the "INH" side.
● When such, setting condition can be
chosen by pressing Jog key.
Range：NOR, I12, ID3
■ 5 point curve set
＋ －
or
ting
② Select the setting item of each
point (P-1 〜 P-5) with the Jog
key and set the travel of each
point by pressing the + key or –
key.
Range：0.0 ～ 100.0%
Default：
P-5: 100.0%
P-4: 75.0%
P-3: 50.0%
P-2: 25.0%
P-1: 0.0%
● When you want to return the set value
to the initial value, press the + key
and – key simultaneously.
Throttle → Needlemixing
■ Curve copying method
① Select the "CND" item and
switch to the curve copy
mode by pressing the Jog
key.
② Press the + key or – key and
select the copy destination
condition.
＋ －
or
③ Copy the condition by
pressing the Jog key for 1
second.
（1 second）
THR → NEEDL
