FUTABA T10J - Telemetry:distance

79
Common function
The Distance screen displays and sets altitude
data from an SBS-01G GPS Sensor (sold
separately), and allows the distance to the airborne
aircraft to be read by the transmitter. When the
aircraft flies inside or outside the set distance an
alarm and vibration alerts the pilot.
● Conversion of a display unit is performed by "TELEMETRY
UNIT" of "PARAMETER".

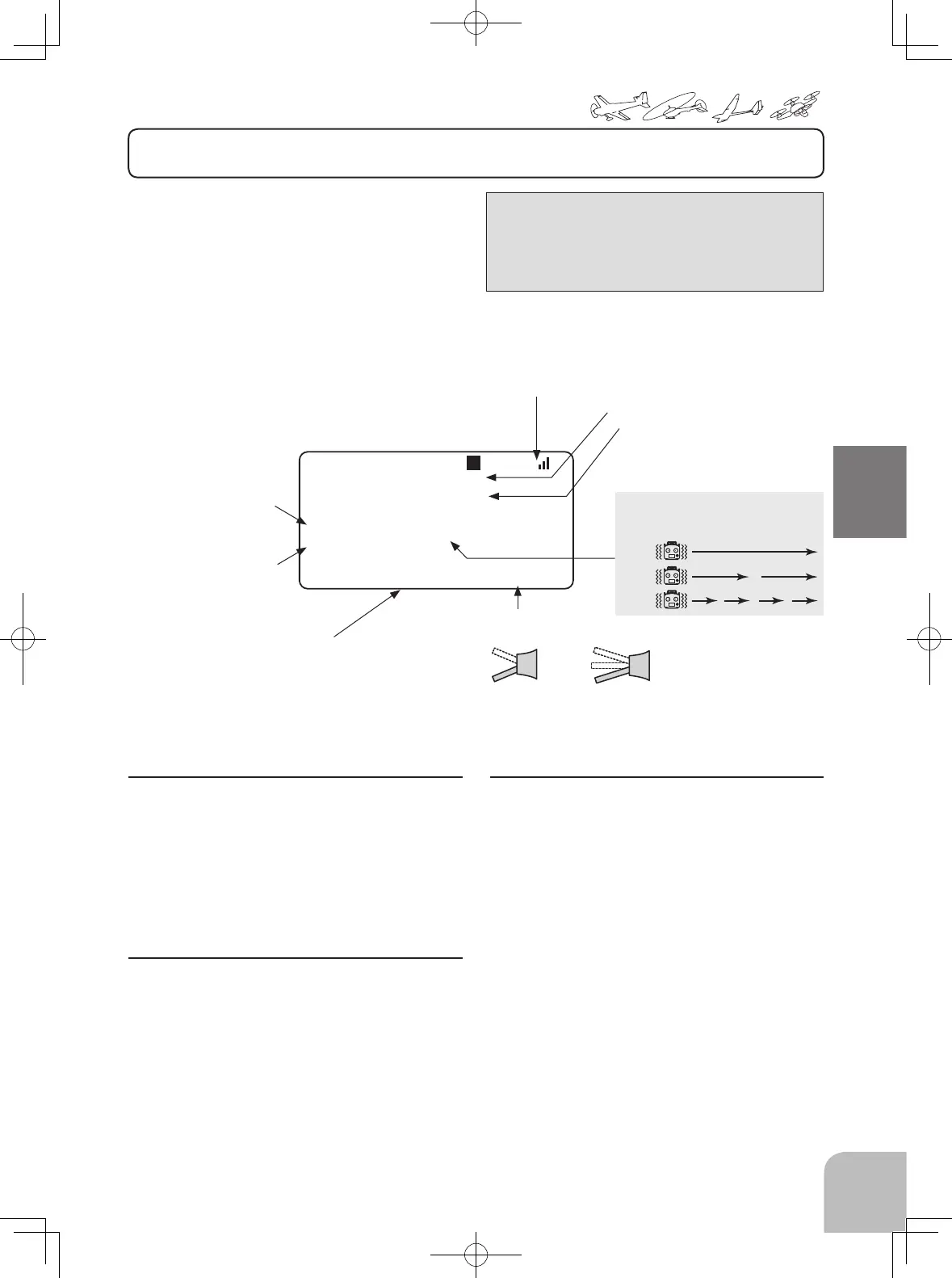

DISTANCE 1 2
(ALARM) (VIB) (LIMIT)
UP▶INH ▶OFF ▶ 200m
DN▶INH ▶OFF ▶ 0m
SPEECH▶ INH SW▶ NULL
REFERENCE▶ EXEC
0 m
0 m MAX=
G
*Positioning time of GPS
A short time is required until the positioning of the GPS
is established. In the meantime, don't move the model
during this process. Wait until the GPS sensor's LED turns
solid green. If it is blinking green it is still acquiring the
satellites signals.
●Select [DISTANCE] in the TELEMETRY screen and access
the setup screen shown below by press the Jog key.
●Current distance
●This indicates Maximum
Distance the aircraft ew to.
●The DN: an alarm is
generated when the
distance drops below
the set value.
●The UP: an alarm is
generated when
the set value is
exceeded.
Setting the reference position
1. Turn on the transmitter and the model with
the GPS sensor installed in it.
2. Wait for the GPS accuracy indicator to
display three bars.
3. Move the cursor to REFERENCE [EXEC] and
press the Jog key(1s or more press). The
models current position is now stored and the
distance is set to 0 m.
*Now, the position of the present model was set to 0 m.
Setting a "too far" alert distance
1. Move the cursor to the UP:(ALERT) item.
2. Select the ACT mode by press the +-key.
3. Move the cursor to the UP:(LIMIT)[value]item.
4. Ajust the rate by press the +-key.
Initial value: 200(m)
Adjustment range: 0~5000(m)
(UP:(LIMIT)
≧
DN:(LIMIT))
*When the + - key simultaneous press, the rate is reset to the
initial value.
(To terminate the input and return to the
original state, touch the END key.)
Setting a "too close" alert distance.
1. Move the cursor to the DN:(ALERT) item.
2. Select the ACT mode by press the +-key.
3. Move the cursor to the UP:(LIMIT)[value]item.
4. Ajust the rate by press the +-key.
Initial value: 0(m)
Adjustment range: 0~5000(m)
(UP:(LIMIT)
≧
DN:(LIMIT))
*When the + - key simultaneous press, the rate is reset to the
initial value.
(To terminate the input and return to the
original state, touch the END key.)
●This indicates the receiving accuracy from a GPS satellite. When
three bars are displayed, the GPS is ready for use. Pushing
[REFERENCE] sets the current aircraft position as the starting point.
*An GPS sensor must be installed in the aircraft.
DISTANCE : Display of SBS-01G(Option), and alarm setup
ON
2 Position 3 Position
OFF
ON
OFF
OFF
●Switch selection
TYPE 1
TYPE 2
TYPE 3
"VIB" type
If the following types are selected, the
transmitter will vibrate during the warning.
●You can hear the
Distance data through
an earphone or headset,
by Activating the Speech
function.
●Maximum date reset by
pressing the Jog key for 1
second.
