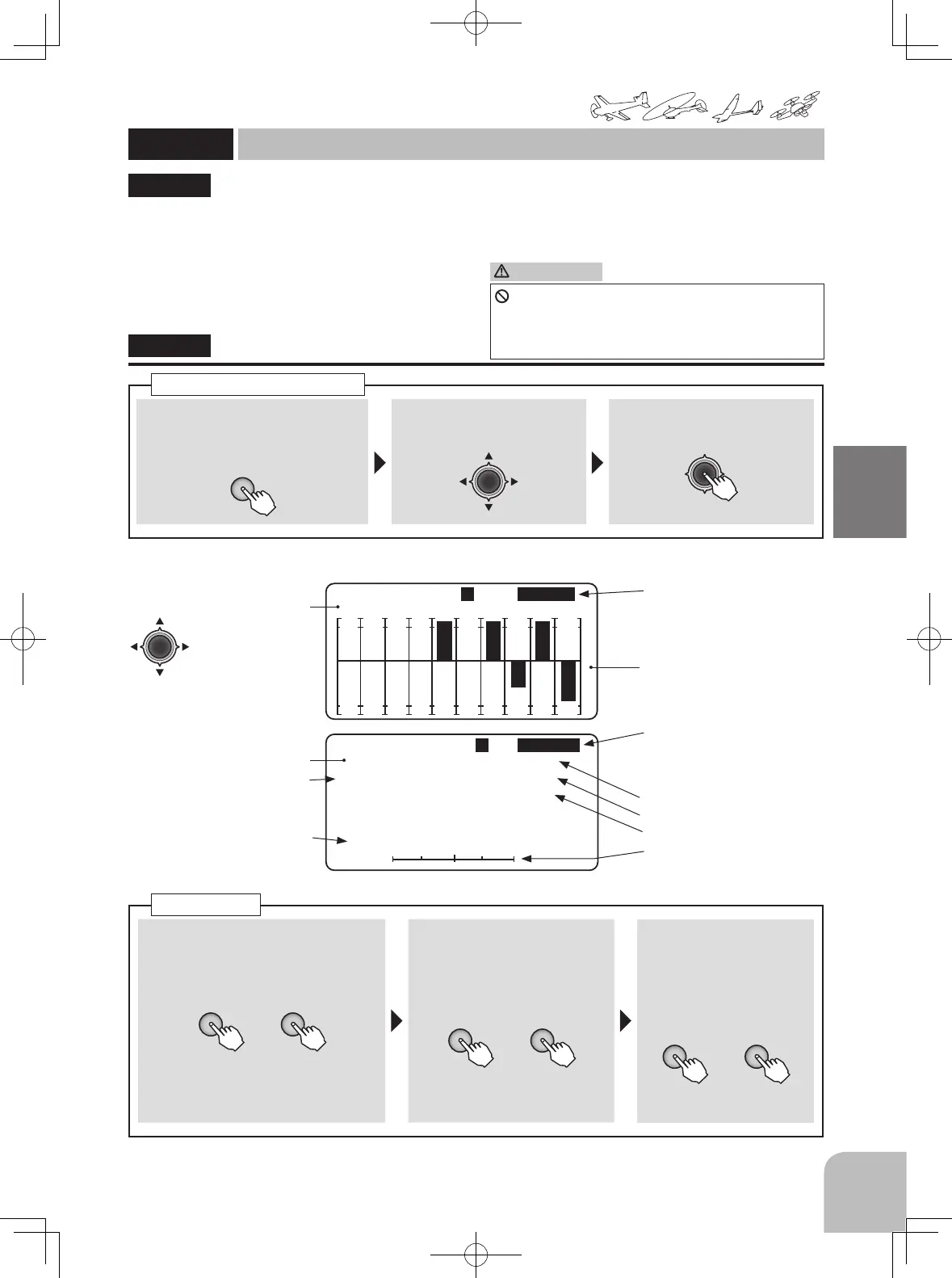

FUTABA T10J - Servo Monitor

49
Common function
Function
Method
① Call the menu screen from the
home screen by pressing the + key
for 1 second.
＋
② Select
from the menu with the Jog
key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
The servo display/servo test function displays
the CH1 to CH10 servo output bar graph and tests
servo operation.
●The servo display function can be used for a simple
operation check of such functions as the mixing
function.
●When the servo test function is turned on, the servo
moves to the left and right at the set period. A
variable speed LNR (linear) mode or xed speed
JMP (jump) mode can be selected. This can be
used to check the servo, etc. Operation ON/OFF
can also be selected for each channel.
"SERVO"
SERVO
Servo monitor ／ Servo test
(Common)
(Servo Monitor）
● Select the setting item
with the Jog key.
Switching to the servo test
screen
● Switch the screen by selecting
TEST and operating the jog
key to the left and right.
● The servo operating position
of each channel is displayed
on a bar graph.
(Servo Test）
Servo test ON/OFF
Channel Select
Screen change
● Where "GRPH" is chosen, a
Jog key is pressed in right or
left.
Type Select
Cycle Select
Speed setting
● Operation of a servo test
■ Type/cycle/speed setting
① Select the setting item (TYPE, CYCL,
SPD) with the Jog key and set the item
by pressing the + key or – key.
＋ －
or
（Range ／ Default）
TYPE：LNR, JMP ／ LNR
CYCL：1 〜 100 ／ 10（full speed at 1）
SPD：1 〜 100 ／ 7（full speed at 100）
■ Channel selection
② Select the channel you want to
test with the Jog key and select
ACT/INH by pressing the + key
or – key.
＋ －
or
Selection range：ACT, INH
Default：INH（only CH1 is ACT）
■ Servo test start/stop
③ Select the "TEST" item
with the Jog key and
start/stop the servo test
by pressing the + key or –
key.
＋ －
or
Selection range：ON, OFF
Default：OFF
Servo test
Using the servo test will move the servos to
their full throw. Do not use this with linkages
installed. Using it may damage the servo and
linkage.
SERVO 1 2 TEST▶
1 2 3 4 5 6 7 8 9 10
SERVO 1 2 GRPH▶
1 2 3 4 5 6 7 8－10
(■ACT □INH)
■ □ □ □ □ □ □ □
TYPE▶ LNR
CYCL▶ 10
SPD▶ 7
CH▶
TEST ▶ OFF
CAUTION
