FUTABA T10J - S.BUS2 System

Before use
35
S.BUS2 SYSTEM

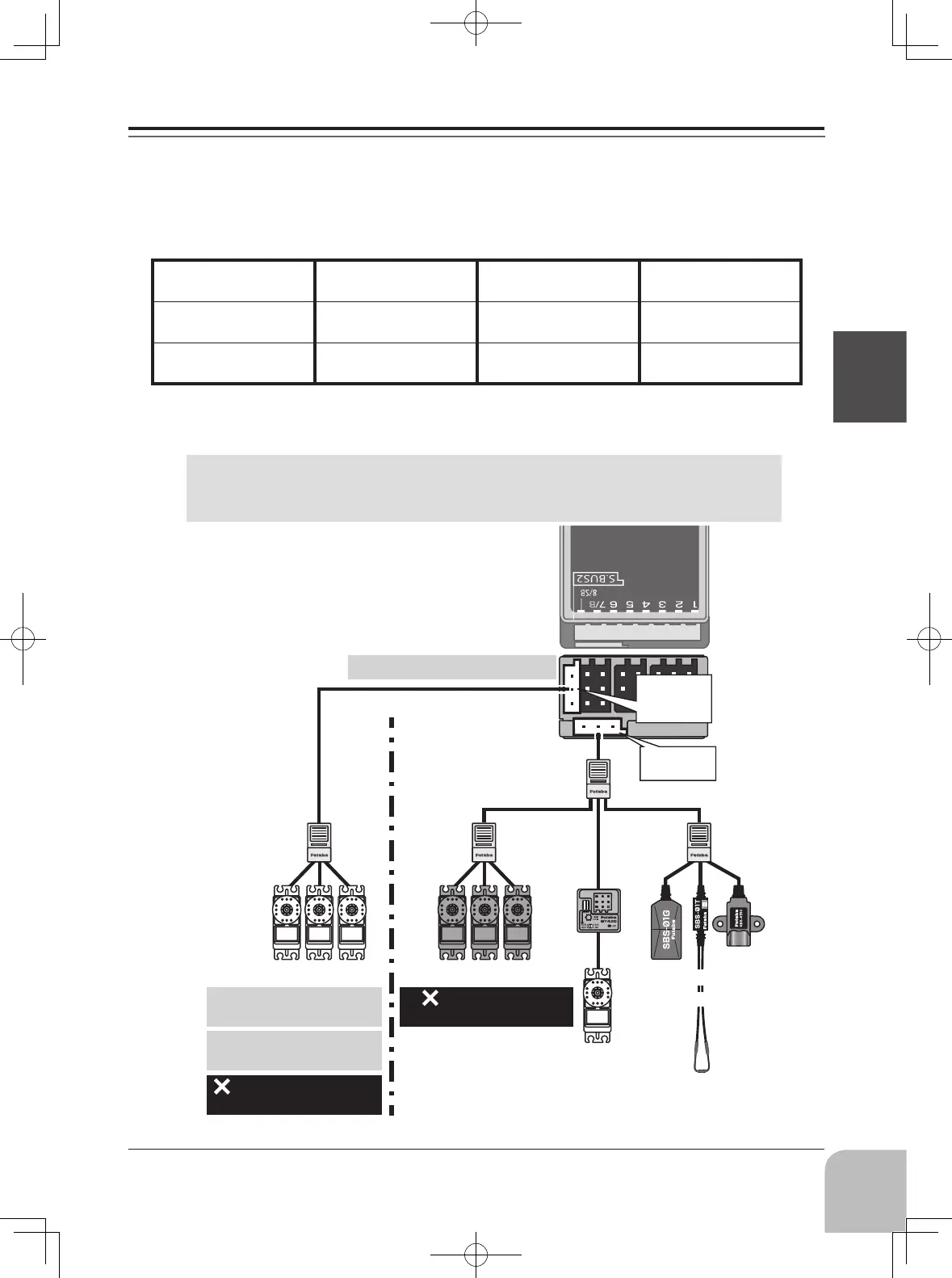

When using the S.BUS2 port, an impressive array of telemetry sensors may be utilized.
Receiver port
S.BUS Servo
S.BUS Gyro
S.BUS2
Servo
S.BUS2
Gyro
Telemetry sensor
S.BUS ○ ○ ×
S.BUS2
× （※） ○ ○
S.BUS2 TABLE
（※）
Don't connect S.BUS Servo,
S.BUS Gyro to S.BUS2 connector.
S.BUS2
Port
S.BUS
Port
(8/SB)
Hub
Hub Hub Hub
Rudder Servo
S.BUS2 ServoS.BUS Servo
S.BUS2 servo
Connection is possible
S.BUS2 gyro
Connection is possible
S.BUS servo
Connection is impossible
Telemetry sensor
Connection is impossible
S.BUS2
GYRO
CH Mode is set to ModeB [D].
＋
Telemetry
Sensor
S.BUS servos and gyros and S.BUS2 servos and gyros must be used in the
correct receiver ports. Please refer to the instruction manual to make sure
you connect to the correct one.
