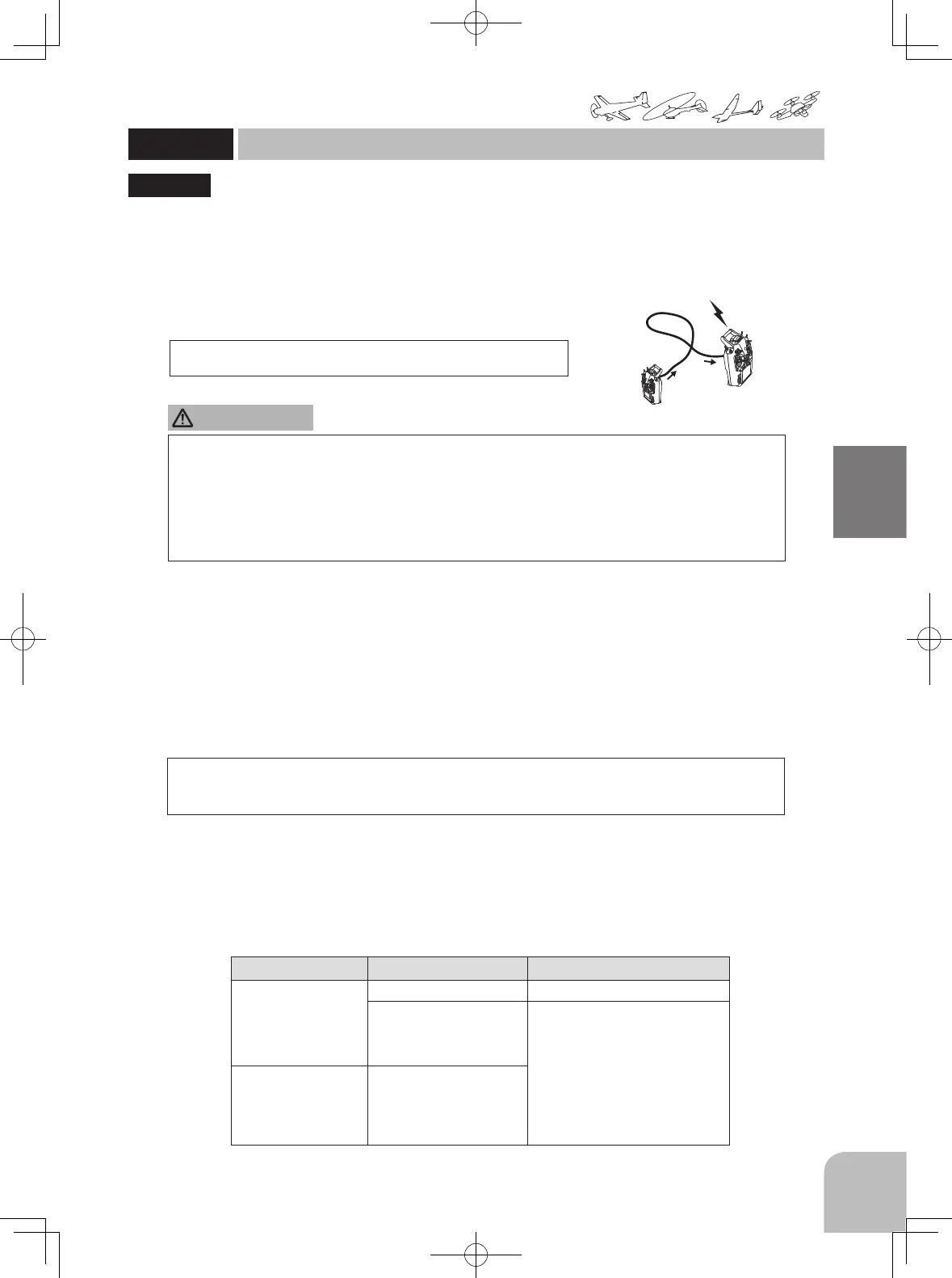

FUTABA T10J - Trainer

93
Common function
Function
Since the channel and operation mode used in training can be selected, the training difculty can be set
to match the student’s level.
The trainer function can be used by connecting the instructor’s transmitter to the student’s transmitter
using a special trainer cord (sold separately). Student operation is possible by instructor switch operation. If
the student enters a dangerous situation, control can be immediately switched to the instructor.
● Four operation modes can be selected at each channel.
● The trainer switch is set to switch H.
When the trainer function is used, the snap roll function is automatically
deactivated.
Use the trainer function under the following conditions:
● When the instructor uses a T10J transmitter, set the student’ s transmitter modulation to PPM (for
conventional frequency transmitter). (When the student uses a T10J transmitter, the modulation
mode does not have to be changed. A PPM signal is always output from the trainer jack.)
● Before ight always conrm that all the instructor and student channels operate normally as set.
● Always insert the trainer cord as far as it will go and take measures so that the cord will not work
loose during use.
● Always remove the high frequency module of the student’ s transmitter. (For module type)
● Never turn on the student’ s transmitter power switch.
Trainer function operation modes
● FNC mode: The channel set to this mode can be controlled by the student using the mixing set at the
instructor’ s transmitter. (Student settings are returned to their initial value in advance.)
● MIX mode: The channel set to this mode is controlled by mixing the instructor and student signals.
Correction rudder is applied by the instructor. When this mode is selected, the student’ s rate is
reduced to prevent servo overthrow. The student’ s rate can also be set. (The student’ s settings are
returned to their initial value in advance.)
● NOR mode: The channel set to this mode is controlled by signals from the student’ s transmitter. (The
instructor and student settings must be the same.)
●OFF mode: The channel set to this mode cannot be controlled by the student. It can only be controlled
by the instructor.
However, channels not provided at the student’ s transmitter are controlled by the instructor regardless of the above
settings.
When other models are selected, the trainer function is deactivated, but the channel settings remain.
Example of use
● When the FUNC mode is set at the stick channel, helicopter stick operation training is possible even
with a 4EX transmitter (4 channels for aircraft).
● Control by the instructor is possible by setting only the training channel matched to the student’ s
level to the NORM mode and setting the other channels to the OFF mode.
TRAINER
Trainer
(Common)
Teacher
Trainer code
Student
Instructor Student Trainer Cords
10J
10C, 9C, 7C, 6EX, 4EX
T12FG (FUTM4405)
18MZ,14MZ, 14SG,
FX-22, 12Z, 12FG,
8FG, 10J, 8J, 6J
T12FG (FUTM4405) and 9C
(FUTM4415) Trainer Cords
18MZ,14MZ,
14SG, FX-22, 12Z,
12FG, 8FG, 10C,
9C, 7C, 8J, 6J, 4EX
10J
◆ Trainer Cords
CAUTION
