FUTABA T10J Manual

Before use
19

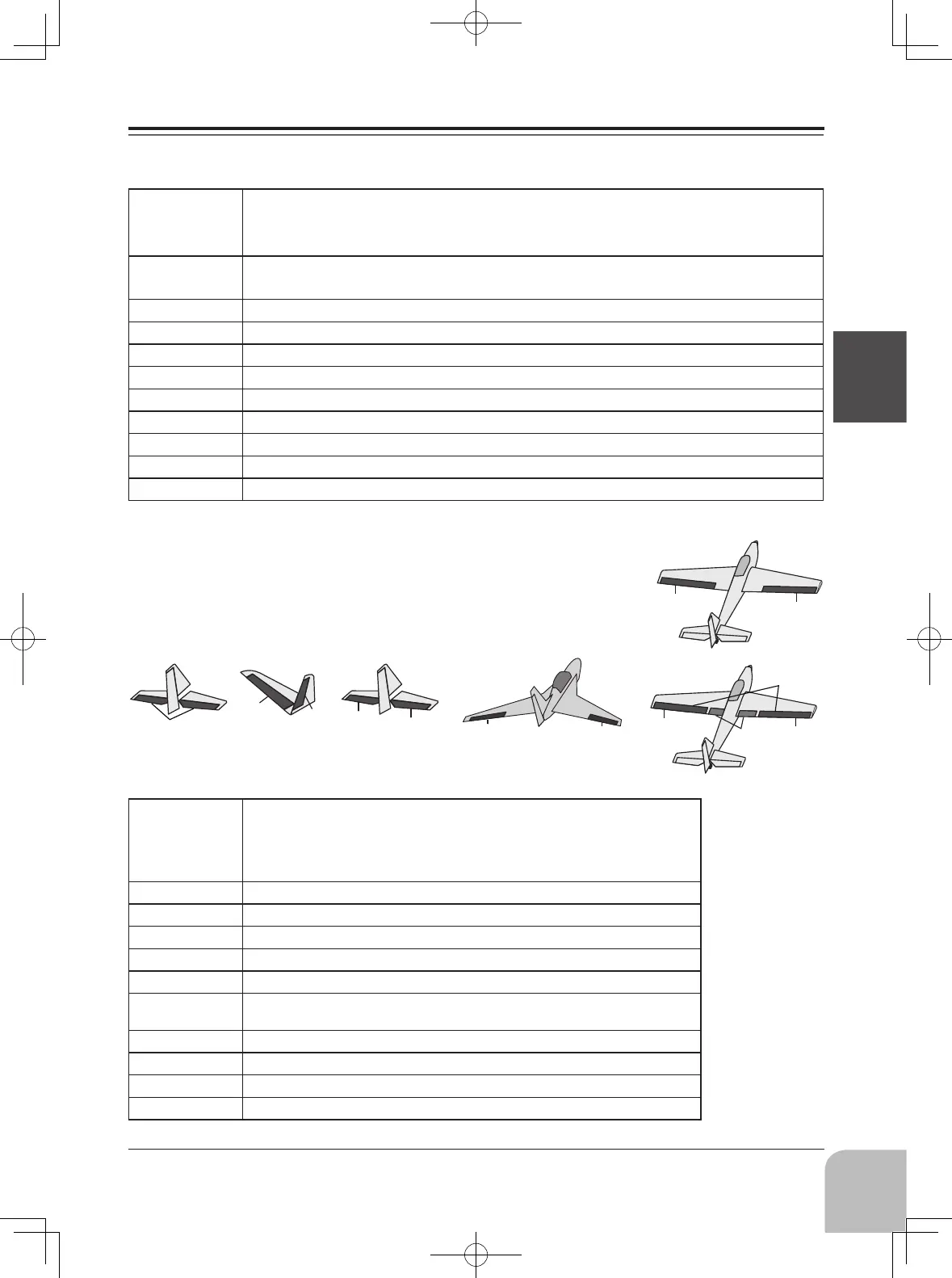

RECEIVER AND SERVO CONNECTIONS
Receiver
Output and
Channel
Aircraft (
ACRO
)
1 Ailerons/Aileron-1
1
/combined Flap-2 & Aileron-1
2
/combined Aileron-1 &
Elevator-2
5
2 Elevator/combined Aileron-2 & Elevator-1
5
3 Throttle
4 Rudder
5 Landing gear/Aileron-2
1,3
/combined Flap-1 and Aileron-2
2,3
6 Flap(s)/combined Flap-1 and Aileron-2
2
7 Aileron-2
1
8 Elevator-2
4
/Mixture control
9 AUX
10 AUX
1
Aileron Differential mode (
AILE-DIFF
).
2
Flaperon mode.
3
Using Second Aileron option, second Aileron servo output is sent
to channels 5 and 6. (
AILE-2
)
4
AILEVATOR
(dual elevator) mode.
5
ELEVON
mode.
Receiver
Output and
Channel
Multicopter (
MULTI COPT
)
1 Aileron (Multicopter Controller)
2 Elevator (Multicopter Controller)
3 Throttle (Multicopter Controller)
4 Rudder (Multicopter Controller)
5 Mode (Multicopter Controller)
6 AUX
*When using a "GYRO SENS" function, 6CH is used for Mode
(Multicopter Controller).
7 AUX
8 AUX
9 AUX
10 AUX
*Use the controller of multicopter corresponding to Futaba.
(Wing Type)
(Tail Type)
AIL2
(CH7)
FLP
(CH6)
(FLAP)
AIL1
(CH1)
(FLAPERON)
AIL2
FLP1
(CH6)
AIL1
FLP2
(CH1)
AIL
(CH1)
(NORMAL)
ELE
(CH2)
(AILVATOR)
ELE1
AIL3
(CH2)
ELE2
AIL4
(CH8)
(V-TAIL)
ELE1
RUD2
(CH2)
ELE2
RUD1
(CH4)
Aircraft
Multicopter
*When using 8 or more channels, use an S.BUS
function or use a second R3008SB and link
both to your transmitter.
AIL2
ELE1
(CH2)
AIL1
ELE2
(CH1)
(ELEVON)

FUTABA T10J Specifications

General

Channels	10
Frequency	2.4GHz
Model Memory	30
Display	LCD
Telemetry	Yes
Weight	590g
Trainer Port	Yes
Modulation	S-FHSS
Power Supply	6V to 7.4V (2S LiPo)
