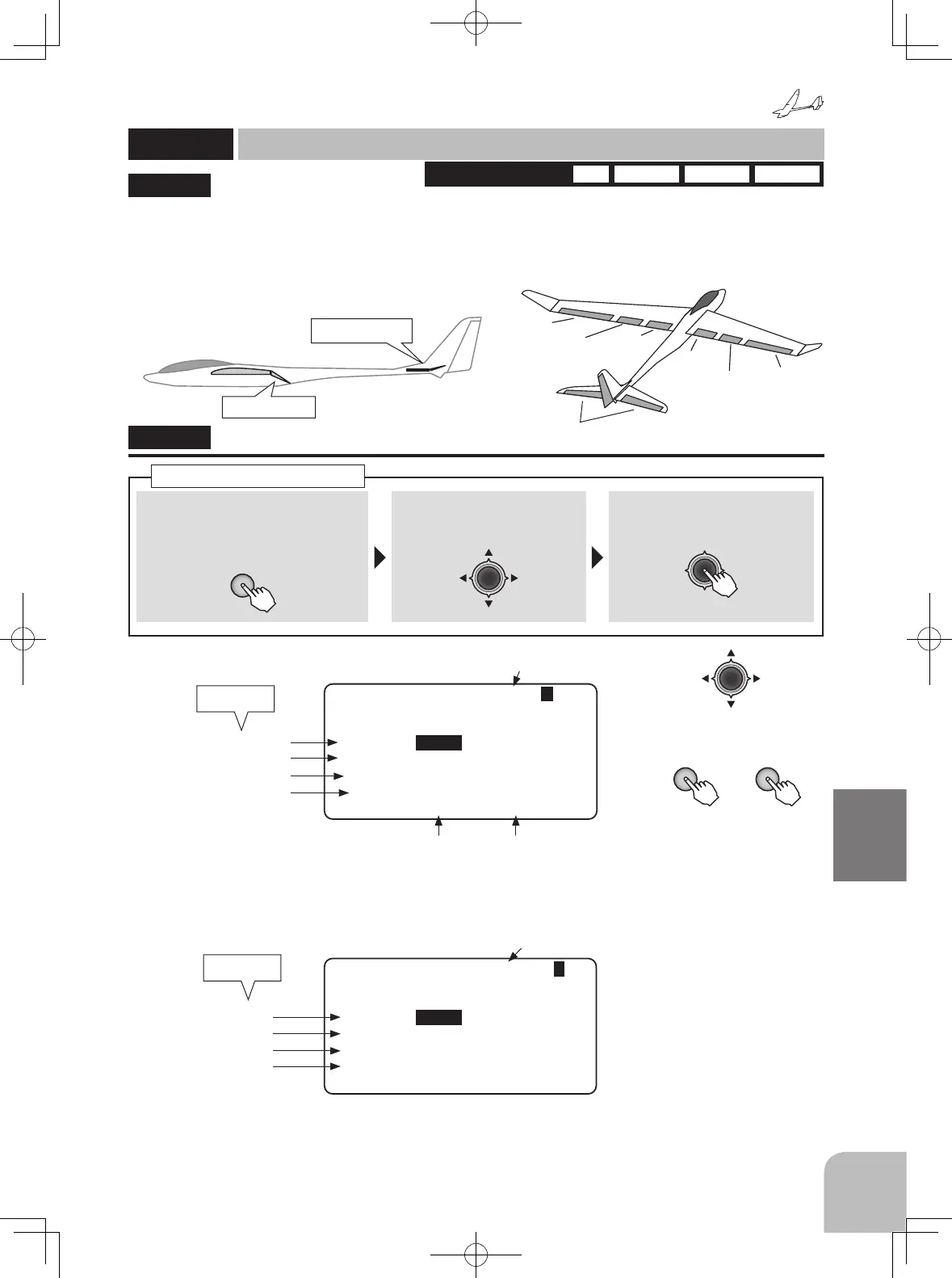

① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
1AIL 2AIL 2AIL+1F 2AIL+2F 2AIL+4FWING TYPE
● (RATE1) and (RATE2) show
the direction of elevator of
operation.
Aileron1
(CH1)
Aileron2
(CH7)
Flap4
(Brake Flap)
(CH9)
Flap3
(Brake Flap)
(CH8)
Flap2
(Camber Flap)
(CH6)
Flap1
(Camber Flap)
(CH5)
Elevator
(CH2)
"ELE → CAMBR"
ELE → CAMBR
Elevator → Camber mixing
(GLIDER)
Up the elevator
ap is down
ELE→CAMBR (NORM) 1 2
(RATE1) (RATE2)
FLP1 ▶ 0 ▶ 0
FLP2 ▶ 0 ▶ 0
FLP3 ▶ 0 ▶ 0
FLP4 ▶ 0 ▶ 0
ELE→CAMBR (NORM) 1 2
(RATE1) (RATE2)
AIL1 ▶ 0 ▶ 0
AIL2 ▶ 0 ▶ 0
MIX ▶ INH
SW ▶ SwA ▶ DOWN
RANGE▶ 0% ( 0%)
● Select the setting item
with the Jog key.
● The number is changed
by + key or – key.
● Current position of the
elevator stick
● Described on
the next page.
● Flap1
● Aileron1
● Camber MIX ACT/INH
Mixing rate
Mixing rate
● Flap2
● Aileron2
● Can be either set to a
switch or when NULL is
always active.
● Flap3
● Flap4
[ELE → Camber ２page]
（Currently selected condition）
（Currently selected condition）
＋ －
This function is used when you want to mix the
camber aps with elevator operation. When used,
the flaps are lowered by up elevator, and lift is
increased.
● In-ight mixing can be turned ON/OFF by assigning
this to a switch. (Always ON at SW [NULL] setting)
● The mixing rate can be adjusted.
● Setting so that the aps are not operated near the
center of the elevators is possible. (RANGE)
To Next Page
