FUTABA T10J Manual

76
Common function

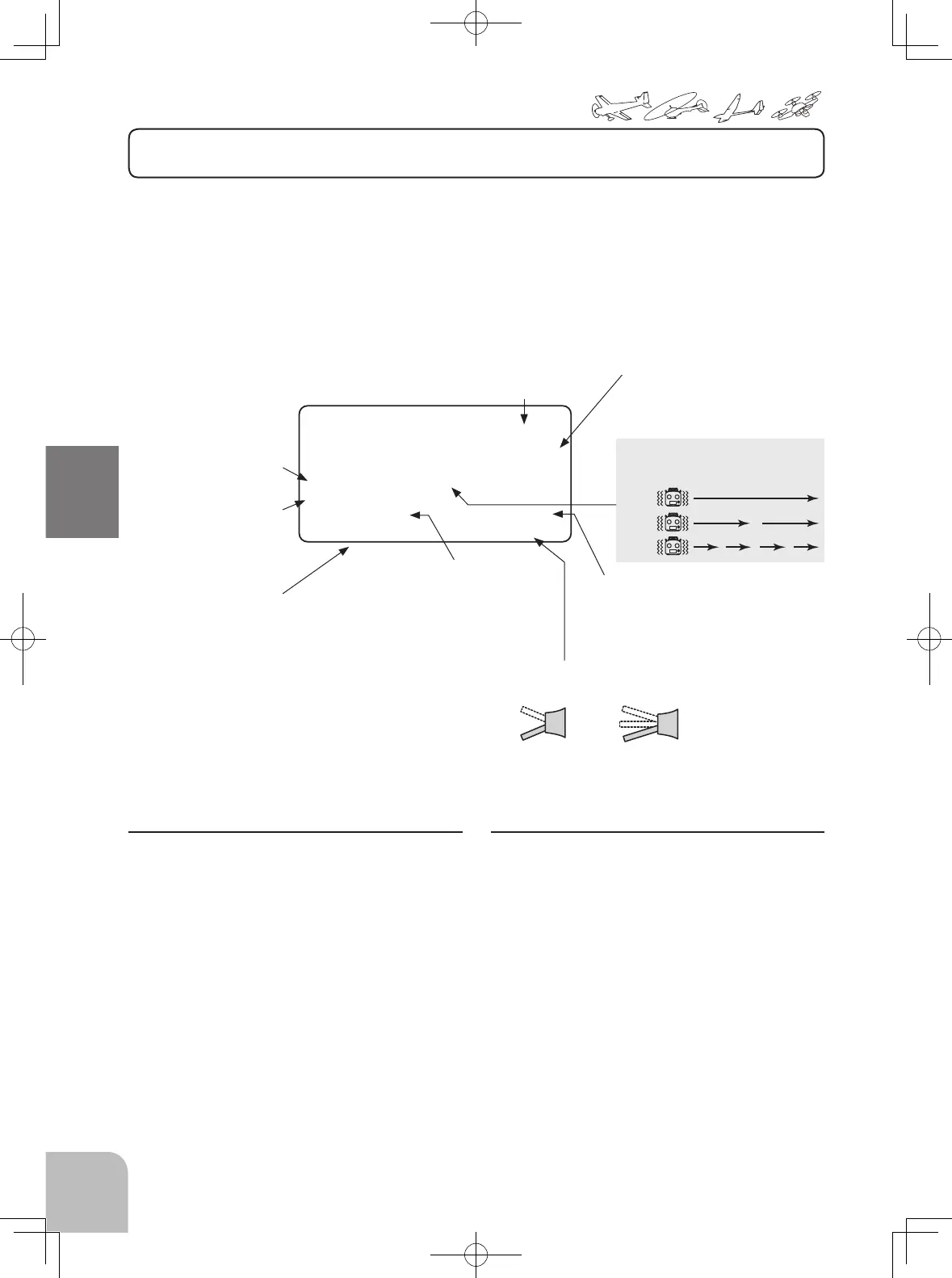

R.P.M : Display of SBS-01RM/RO(Option), and alarm setup
ON
2 Position 3 Position
OFF
ON
OFF
OFF
R.P.M
(ALARM) (VIB) (LIMIT)
UP▶INH ▶OFF ▶ 0
DN▶INH ▶OFF ▶ 0
TYPE▶ OPT. FIN▶ 0
SPEECH▶ INH SW▶ NULL
0 rpm
0 rpmMAX=
●You can hear the
RPM data through an
earphone or headset,
by Activating the Speech
function.
● Switch selection
TYPE 1
TYPE 2
TYPE 3
"VIB" type
If the following types are selected, the
transmitter will vibrate during the warning.
RPM is a screen which displays / sets up the
RPM information from an optional RPM sensor.
The RPM of the model (engine, motor, etc.)
which is ying can be shown.
If it becomes higher or lower than the setting an
alarm and/or vibration will alert you.
●Select [RPM] in the TELEMETRY screen
and access the setup screen shown
below by press the Jog key.
● RPM
●The maximum when
powering ON are shown.
●"MAG.(MAGNETIC)" or "OPT.
(OPTICAL)" is set according
to the sensor you use.
SBS-01RM : MAGNETIC
SBS-01RO : OPTICAL
●DN: Indicates that the
alarm will start when
the RPM falls below
the set value.
●UP: Indicates that the
alarm will start when
the RPM rises above
the set value.
Alert set : Over rotations
1. Move the cursor to the UP:ALERT item.
2. Select the ACT mode by press the +-key.
3. Move the cursor to the UP:(LIMIT) [value]item.
4. Ajust the rate by press the +-key.
Initial value: 2000rpm
Adjustment range: 0rpm~390,000rpm
(UP:(LIMIT)
≧
DN:(LIMIT))
*When the + - key simultaneous press, the rate is reset to the
initial value.
(To terminate the input and return to the
original state, touch the END key.)
Alert set : Under rotations
1. Move the cursor to the DN:ALERT item.
2. Select the ACT mode by press the +-key.
3. Move the cursor to the UP:(LIMIT) [value]item.
4. Ajust the rate by press the +-key.
Initial value: 0rpm
Adjustment range: 0rpm~390,000rpm
(UP:(LIMIT)
≧
DN:(LIMIT))
*When the + - key simultaneous press, the rate is reset to the
initial value.
(To terminate the input and return to the
original state, touch the END key.)
●In "MAGNETIC", the gear ratio
of your engine (motor) you are
using is entered.
●In "OPTICAL", the number of
blades("FIN") of the propeller ( r o
t o r ) your model is entered.
*A RPM sensor must be installed in the aircraft.
● Maximum
date reset by
pressing the Jog key for 1
second.

FUTABA T10J Specifications

General

Channels	10
Frequency	2.4GHz
Model Memory	30
Display	LCD
Telemetry	Yes
Weight	590g
Trainer Port	Yes
Modulation	S-FHSS
Power Supply	6V to 7.4V (2S LiPo)
