FUTABA T10J - Swash Ring

126
Helicopter
Function
Method

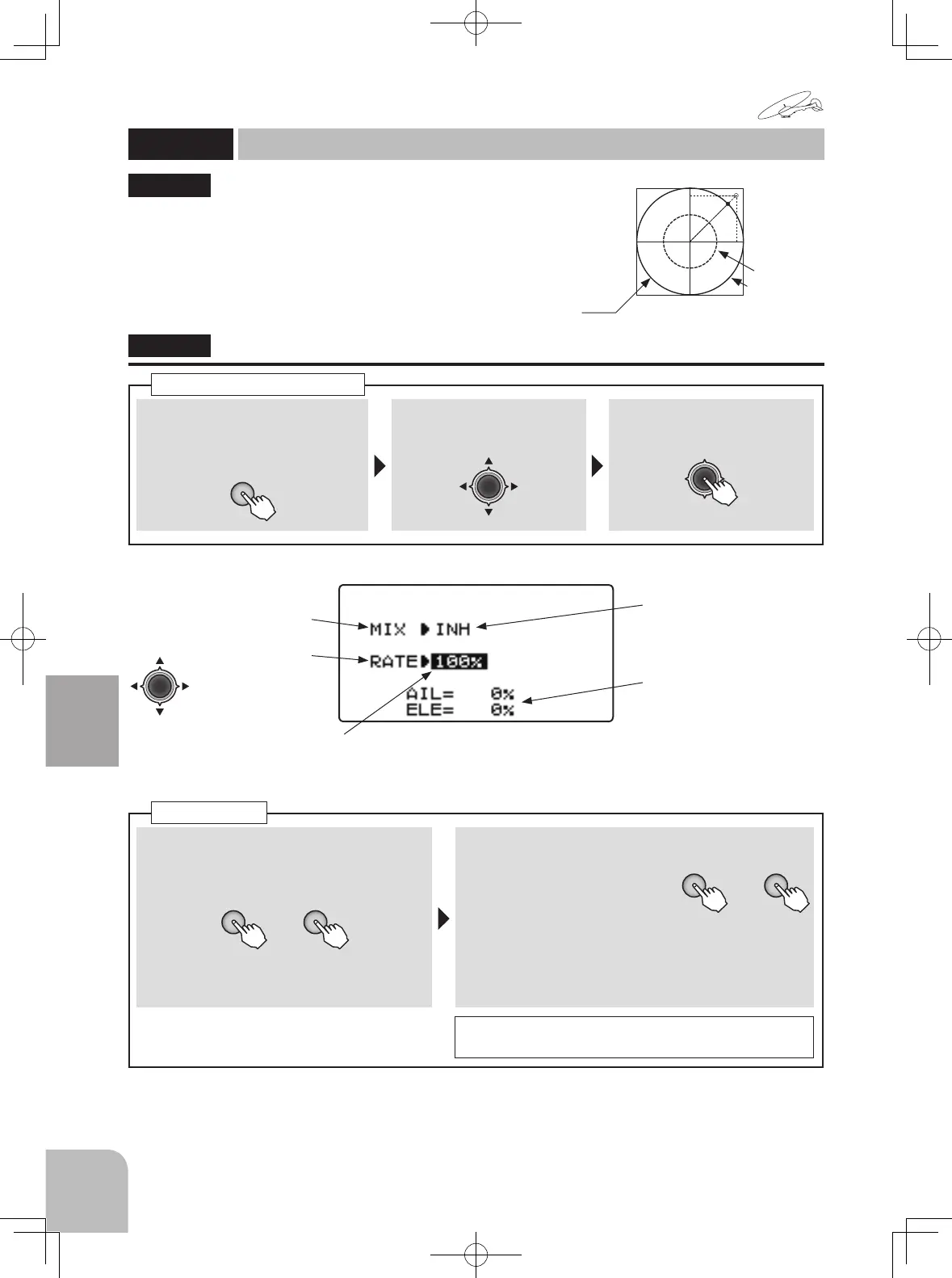

① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
This swash mixing function limits swash travel
to prevent damage to the switch linkage due to si-
multaneous aileron and elevator operation. If is ef-
fective in 3D aerobatics with a large steering angle.
"SWH.RING"
● Aileron and elevator stick operation is limited
to within the circle (swash mixing) in the gure
shown at the right. (When rate is 100%)
← AIL operation →
← ELE operation →
SwashRing
50%
100%
SWH.RING
Swash ring
(HELICOPTER)
■ Activating the function
① Select the "MIX" item and then select the
"ON" by pressing the + key or – key.
＋ －
or
● When you do not use a function, set to
the "INH" side.
■ Setup of rate
＋ －
or
② Select the "RATE" item and
then adjust the mixing rate
by pressing the + key or –
key.
Range：50 ～ 200%
Default：100%
● When you want to return the set value to the initial
value, press the + key and – key simultaneously.
NOTE：Adjust the swash mixing rate to the largest swash
inclination at which the linkage rod does not interfere.
Swash Ring
Activating the function
Swash Ring rate
● When not using this function,
select INH.
● Select the setting item
with the Jog key.
● Adjusts the operable range (swash mixing) of the
aileron and elevator sticks.
● Displays the actual aileron
and elevator combined
travel when the stick is
manipulated.
SWH.RING
