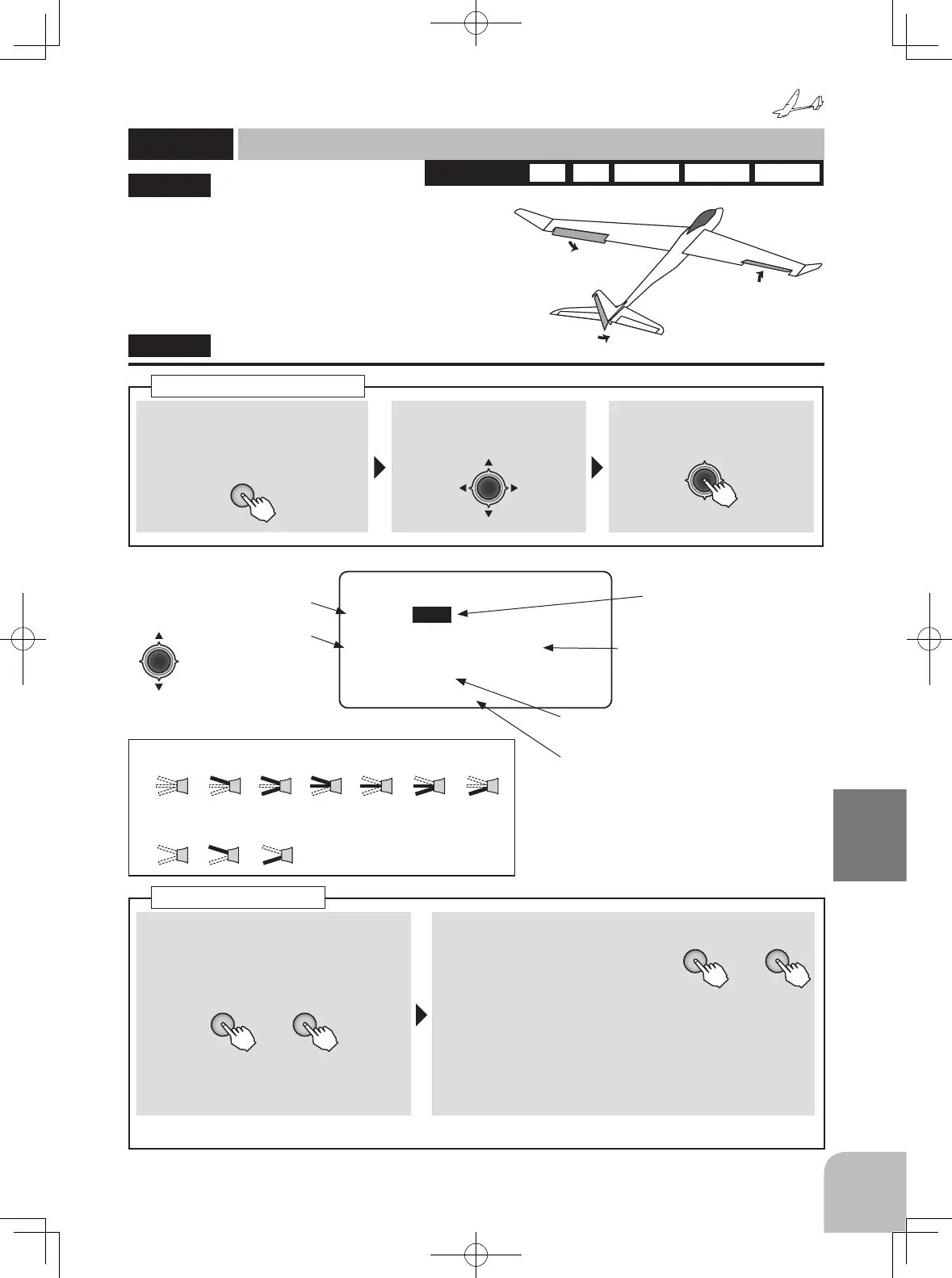

FUTABA T10J - AileronRudder

151
Glider
Function
Method
① Call the menu screen from the
home screen by pressing the +
key for 1 second.
＋
② Select
from the menu with the
Jog key.
③ Open the setting screen by
pressing the Jog key.
（1 second）
Calling the setting screen
1AIL 2AIL 2AIL+1F 2AIL+2F 2AIL+4FWING TYPE
■ Activating the function
① Select the "MIX" item and then select
the "ON" by pressing the + key or –
key.
＋ －
or
● When you do not use a function, set
to the "INH" side.
■ Mixing rate
＋ －
or
② Select the "RATE" item and
then adjust the mixing rate by
pressing the + key or – key.
Range：-100 ～ +100%
Default：0%
● When you want to return the set value to the initial value,
press the + key and – key simultaneously.However,
polarity does not return.
Aileron → Rudder
Use this mix when you want to mix the rudder
with aileron operation. This allows the aircraft to
bank at a steep angle.
●When the mixing direction is reversed by the
linkage, adjustments can be made by changing
the rate polarity.
"AIL → RUD"
AIL → RUD
Aileron → Rudder
(GLIDER)
Activating the function
Rate adjustment
● When not using this function,
select INH.
● Select the setting item
with the Jog key.
● The ON/OFF switch can be changed.
(Selected with the Jog key and
changed with the +key)
● Sets the ON/OFF direction of the
selected switch.
● When condition was used, the display
can be switched and each connection
can be set by switching the condition
switch.
エルロン→ラダー
MIX ▶ INH
RATE ▶ 0% (NORM)
POSI▶ DOWN
SW ▶ SWA
AIL → RUD
ON
ON
ON
ON
OFF
OFF
ON
ON
OFF
ON
ON
OFF
ON ON
OFF
OFF
ON
OFF
ON
OFF
OFF
NULL UP UP&DWN UP&CNT CENTER CNT&DN DOWN
● Switch ON/OFF 表示
3 Position Switch
ON
ON
ON
OFF
ON
OFF
NULL UP DOWN
2
Position Switch
