TRANSMITTER DISPLAYS & BUTTONS
When you rst turn on your transmitter, a conrmation double beep sounds, and the screen shown
below appears. Before ying, or even starting the engine, be sure that the model type and name
appearing on the display matches the model that you are about to y! If you are in the wrong model
memory, servos may be reversed, and travels and trims will be wrong, potentially leading to a crash.

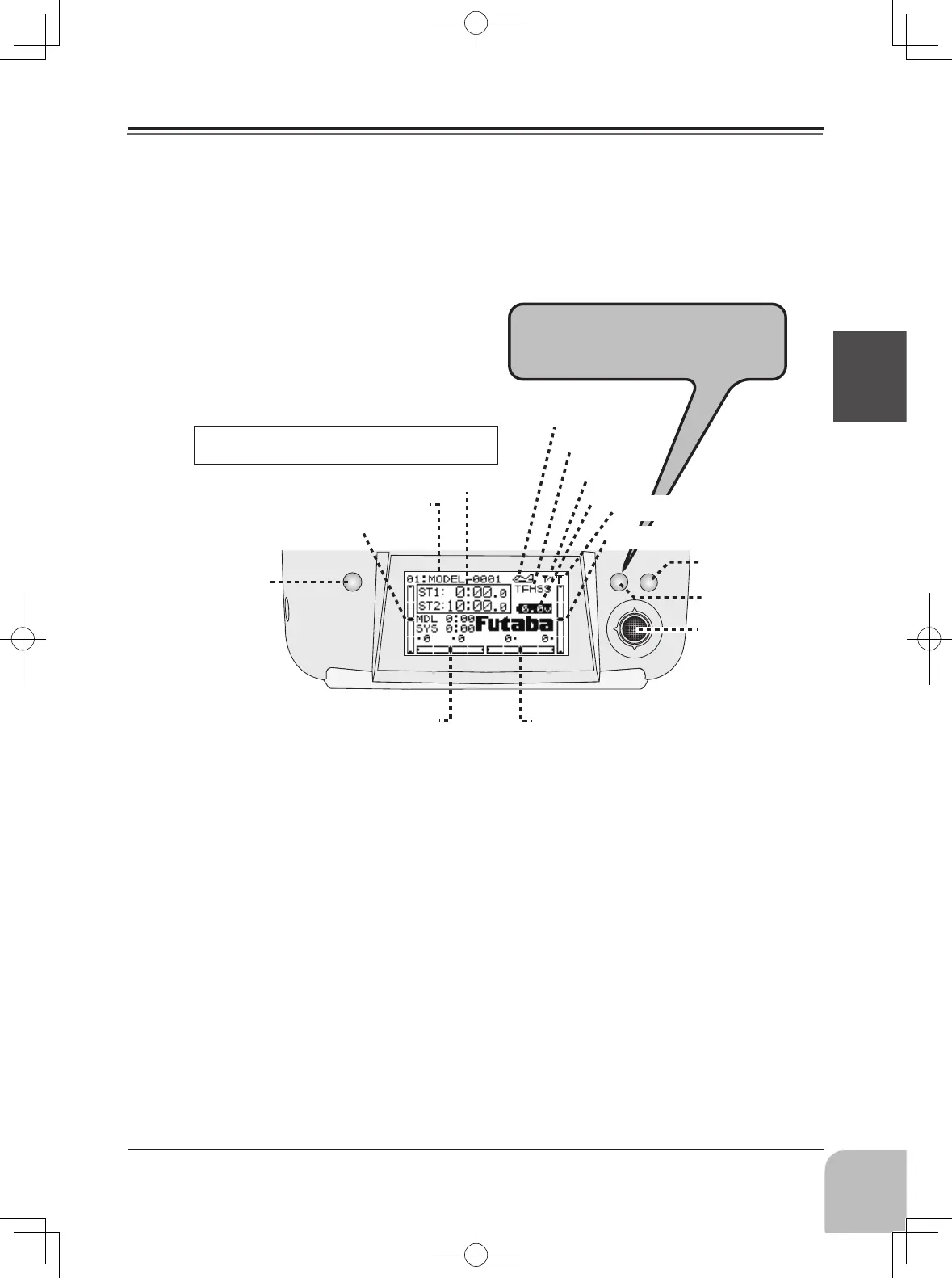

Edit buttons and Start-up Screen (appears when system is rst turned on):
JOG KEY:
Control JOG KEY to scroll up/scroll down/scroll left/scroll right and select the option to edit within a
function. When the menu has multiple pages, move the JOG KEY horizontally (left or right).
Press JOG KEY to select the actual function you wish to edit from the menu.
Press JOG KEY and hold one second to confirm major decisions, such as the decision to: select
a different model from memory, copy one model memory over another, trim reset, store channel
position in FailSafe, change model type, reset entire model, condition of a helicopter setup is changed.
An on screen inquiry will ask if you are sure.
Press JOG KEY again to accept the change.
＋
KEY:
Press and hold
＋
KEY for one second to open programming menus. It is used for changing a setup,
or a numerical increase. Changing the menus pages can also be performed.
－
KEY:
It is used for change of a setup, or reduction of a number. Change of the page of a menu can also be
performed.
END BUTTON:
Press END BUTTON to return to previous screen, close functions back to menus, and close menus to
start-up screen.
Rudder trim
display
Aileron trim
display
Timers
Throttle trim
display
Model number
and name
Jog key
END
Key
Total timer display <TIMER>
Shows the cumulated ON time. (hours:minutes)
Up/down timer display <ST1.ST2>
(minutes:seconds)
Model timer display <MDL>
Shows the cumulated ON time for each model.(hours:minutes)
System timer display <SYS>
Shows the cumulated ON time.(hours:minutes)
Resetting timers:
Select the desired timer with JOG KEY. The timer display
flashes. To reset the timer, press JOG KEY.
System
"S-FHSS" "FHSS"
Model type
Output display
－key
＋key
Press and hold ＋ KEY for one
second to open programming
menus.
Elevator trim
display
Battery
voltage
Telemetry
Receiving accuracy
