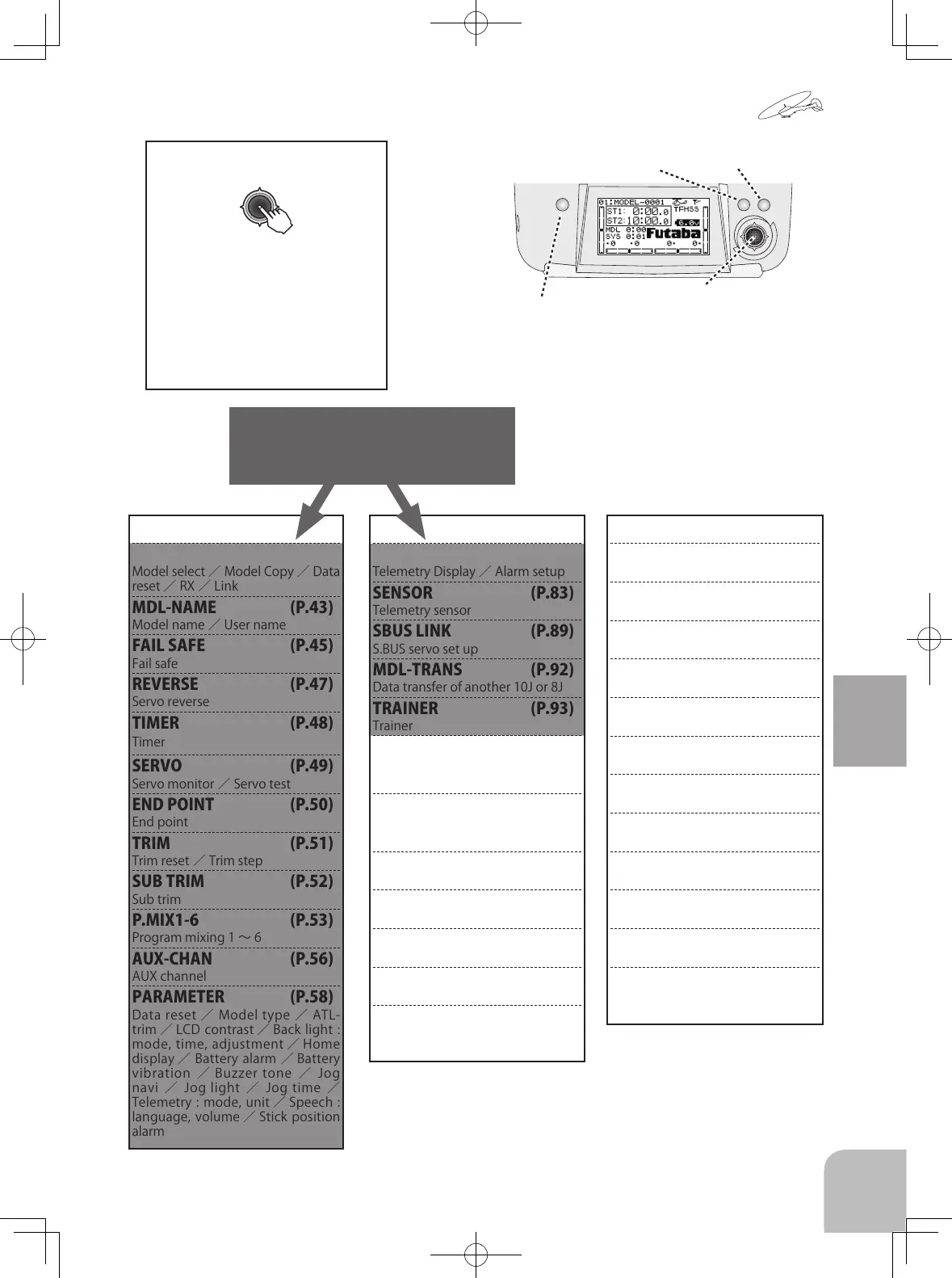

MENU1/3
MDL-SEL (P.40)
Model select ／ Model Copy ／ Data
reset ／ RX ／ Link
MDL-NAME (P.43)
Model name ／ User name
FAIL SAFE (P.45)
Fail safe
REVERSE (P.47)
Servo reverse
TIMER (P.48)
Timer
SERVO (P.49)
Servo monitor ／ Servo test
END POINT (P.50)
End point
TRIM (P.51)
Trim reset ／ Trim step
SUB TRIM (P.52)
Sub trim
P.MIX1-6 (P.53)
Program mixing 1 〜 6
AUX-CHAN (P.56)
AUX channel
PARAMETER (P.58)
Data reset ／ Model type ／ ATL-
trim ／ LCD contrast ／ Back light :
mode, time, adjustment ／ Home
display ／ Battery alarm ／ Battery
vibration ／ Buzzer tone ／ Jog
navi ／ Jog light ／ Jog time ／
Telemetry : mode, unit ／ Speech :
language, volume ／ Stick position
alarm
■ Function
MENU2/3
TELEMETRY (P.66)
Telemetry Display ／ Alarm setup
SENSOR (P.83)
Telemetry sensor
SBUS LINK (P.89)
S.BUS servo set up
MDL-TRANS (P.92)
Data transfer of another 10J or 8J
TRAINER (P.93)
Trainer
CONDITION
(Idle-up・
Throttlehold)
(P.122)
Condition
SWASH AFR
（H-1 removes）
(P.123)
Swash AFR
SWH.MIX (P.124)
Swash MIXing
SWH.RING (P.126)
Swash RING
OFFSET (P.127)
Trim oset
DELAY (P.128)
Delay
THR.CHT (P.129)
Throttle cut
（Condition switching at each
setting screen）
● Press the jog button for 1 second.
When setting conditions with the
following function, each setting can
be made by switching the condition
by pressing the Jog key for 1 second.
Throttle curve, Pitch curve,
Pitch → Rudder, Gyro sens, HI/
LO-Pitch, OFFSET, Throttle MIX,
THR → Needle, Swash MIX
MENU3/3
GYRO SENS (P.131)
Gyro mixing
D/R, EXPO (P.132)
Dual rate ／ EXPO
THR-CURVE (P.134)
Throttle curve
PIT-CURVE (P.136)
Pitch curve
REVO.MIX (P.138)
Revolution mixing (PIT to RUD)
THR HOLD (P.140)
Throttlehold
GOVERNOR (P.141)
Governor mixing
HOV-THR (P.143)
Hovering Throttle
HOV-PIT (P.144)
Hovering Pitch
HI/LO-PIT (P.145)
HI/LO-pitch trim
THR-MIX (P.146)
Swash → Throttle mixing
THR-NEEDL (P.147)
Throttle → Needle mixing
key ／ LCD
●Jog key
●
－ key●＋ key
●
END key
Refer to "Common Functions"
previously described for a
description of this function.
To Next Page
