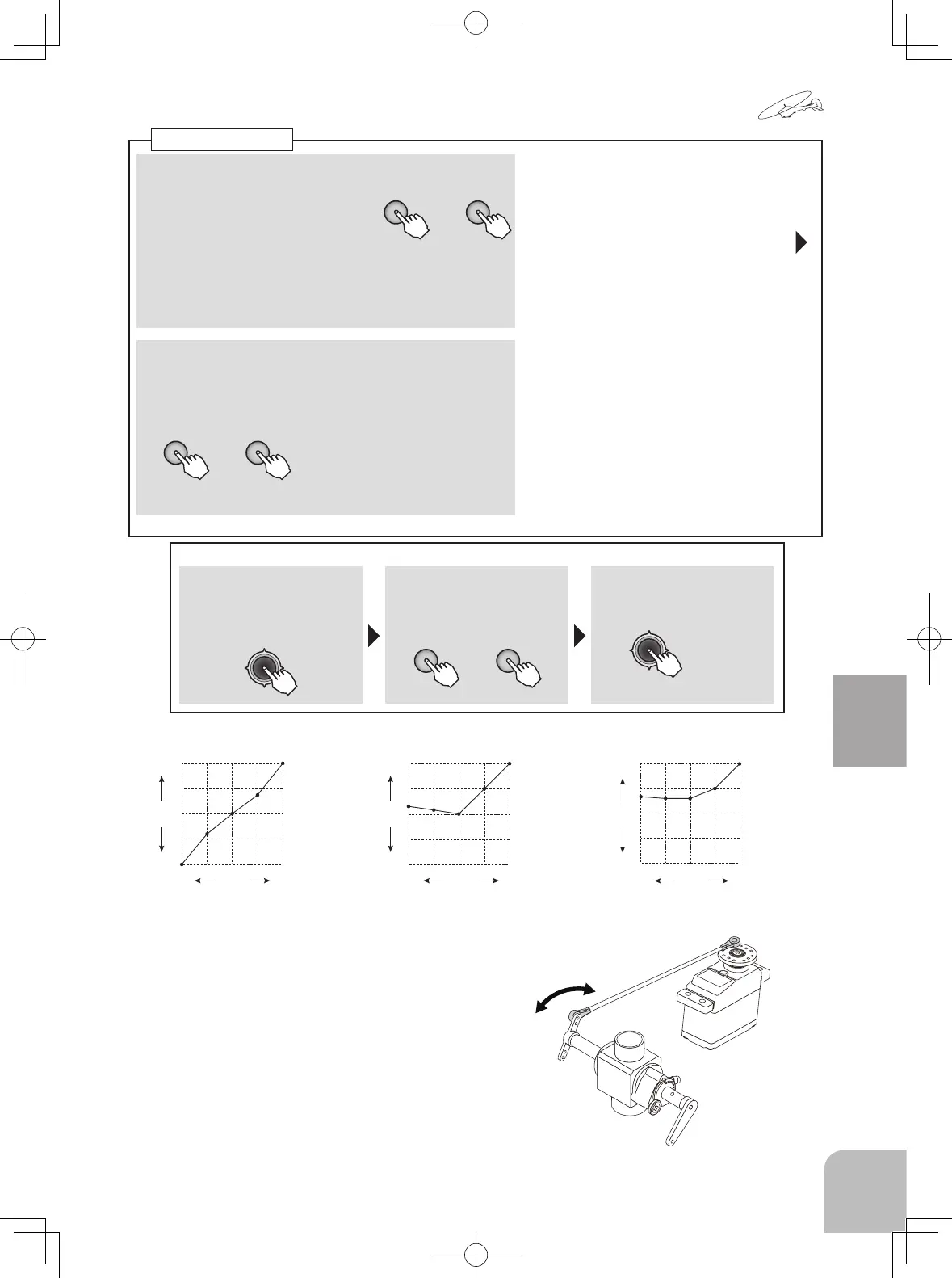

FUTABA T10J - Throttle and Pitch Curve Adjustments

135
Helicopter
● Throttle curve setting examples
（Normal） （Idle-up1） （Idle-up2）
■ Curve copying method
① Select the "CND" item
and switch to the curve
copy mode by pressing
the Jog key.
② Press the + key or –
key and select the copy
destination condition.
＋ －
or
③ Copy the condition by
pressing the Jog key for
1 second.
（1 second）
■ Activating the throttle curves (ID1/2/3)
＋ －
or
①
Select the "MIX" item and set to
"ON" or "OFF" by pressing the +
key or – key.
● For the normal condition, "---" is displayed. (Always ON)
● When you do not want to use an idle up curve, set to
"INH".
Range：NOR, ID1, ID2, ID3
■ 5 point curve setting
② Select the setting item of each point (P-1 〜 P-5)
with the Jog key and set the travel of each point by
pressing the + key or – key.
Range：0 ～ 100%
Default：
P-5: 100%
P-4: 75%
P-3: 50%
P-2: 25%
P-1: 0%
●
When you want to return the set value to
the initial value, press the + key and – key
simultaneously.
Throttle curve
0
100
50
25
75
P1 P2 P3 P4 P5
%
STICK
RATE
（The example of a setting ）
P5=100.0%
P4= 65.0%
P3= 50.0%
P2= 30.0%
P1= 0.0%
0
100
50
25
75
P1 P2 P3 P4 P5
%
P5=100.0%
P4= 75.0%
P3= 50.0%
P2= 54.0%
P1= 56.0%
STICK
RATE
（The example of a setting ）
0
100
50
25
75
P1 P2 P3 P4 P5
%
P5=100.0%
P4= 75.0%
P3= 65.0%
P2= 65.0%
P1= 67.0%
STICK
RATE
（The example of a setting ）
NOTE：Set the actual value of the throttle curve according to the fuselage
specications.
＋ －
or
