Audio Fault Mode—specifies the reporting level the system uses to report audio-related faults.
Station Fault Mode—specifies the reporting level the system uses to report station faults.
RTU Settings (Excluding SVS)

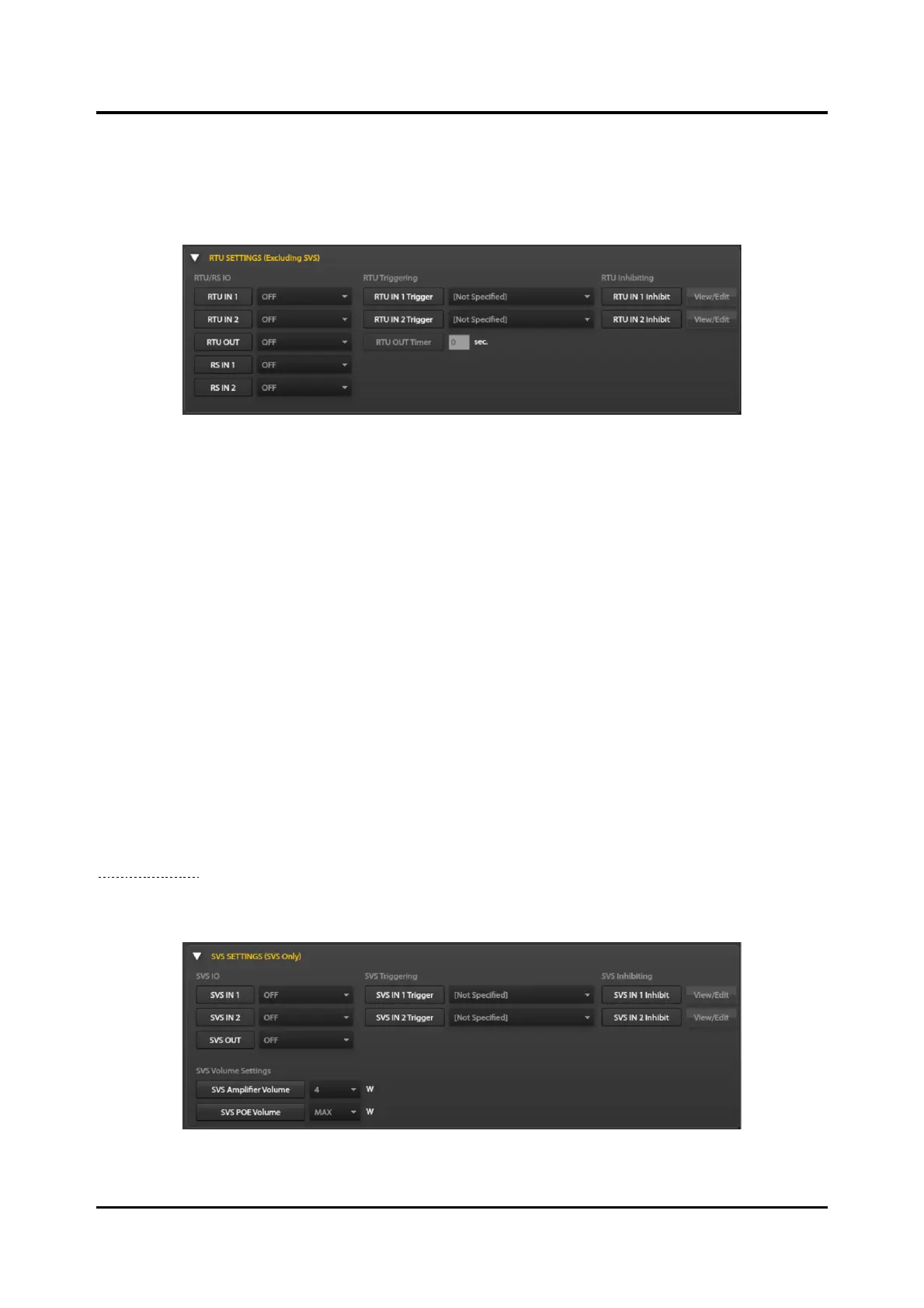

Figure 116. RTU Settings (Excluding SVS) Pane
RTU RS IO
RTU IN 1 & RTU IN 2—specifies the normal operating mode (OFF, NO, NC, NO_S, NC_S, MNO_S,
SB_S, HV_S). The station’s valid options at the station level of the configuration limit the available
options. All options are available at the remaining configuration levels.
RTU OUT—specifies what activates the RTU output on the station.
RS IN 1 & RS IN 2—specifies the remote station inputs as NO (normally open), or NC (normally
closed).
RTU Triggering
RTU IN 1 Trigger and RTU IN 2 Trigger— specifies the action taken or triggered when the RTU input
is activate. Selections include: Global Mutes, ACKs, CANCELs, and E3 events.
RTU OUT Timer—specifies the RTU output period. Enter zero to activate the RTU output for the
duration of the trigger.
RTU Inhibiting
RTU IN 1 Inhibit & RTU IN 2 Inhibit—specifies the inhibit groups that affect the RTU inputs (see the
Inhibit Groups section).
SVS Settings (SVS Only)
Figure 117. SVS Settings (SVS Only) Pane
