Volume Level—gain of the selected input.
Max Duration—maximum duration of the input broadcast.
Start Trim—recording delay at the beginning of a record/playback event.
Stop Trim—amount of playback audio removed at the end of the playback.
Multicast Group—IP address of the multicast input.
Multicast Port—IP port of the multicast input.
Zones
Use the ZONES configuration screen to create and manage communication zones in an Elemec3 system.
A zone is a set of output destinations for events. The destination types that zones include are amplifier
channels, configured zone(s), outputs, output groups, logic flags, and IP destinations.

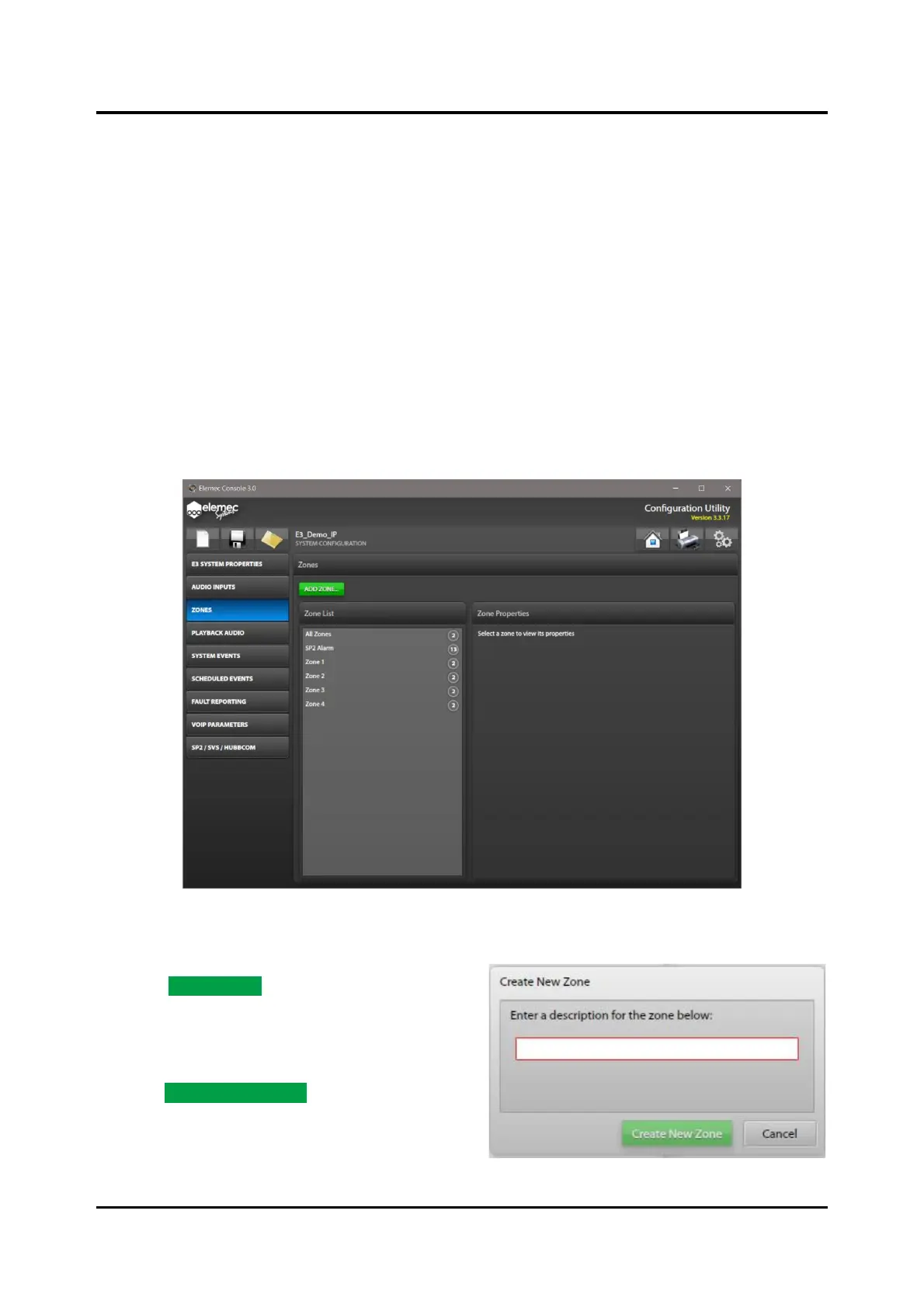

Figure 74. Zone Configuration
Add Zones
1. Click ADD ZONE… to open the CREATE NEW
ZONE dialog box
The CREATE NEW ZONE dialog box opens.
2. Enter the zone description
3. click CREATE NEW ZONE to continue to the
ZONE BUILDER screen.
