SMTP From—sending SMTP address from the E3 system.
SMTP To—address configured to receive email from the E3 system.
SMTP Password—password required to authenticate the SMTP From account on the SMTP server.
SNMP Setup—System Only
The parameters under this heading are view only parameters, inherited from the SYSTEM PROPERTIES
screen GLOBAL SYSTEM SETTINGS pane (see the Global Settings section).
SNMP Server—IP address of the SNMP server
SNMP Port—IP port address of the SNMP service on the SNMP server.
RTU/RS IO—See the
RTU Settings (Excluding SVS) section.
SVS I/O Settings—See the SVS Settings (SVS Only) section.
SP2 Configuration Assets
SP2 configuration assets are multicast sockets, relay groups, and VLC levels, for the SP2 configuration in
the E3 system.
Multicast Sockets

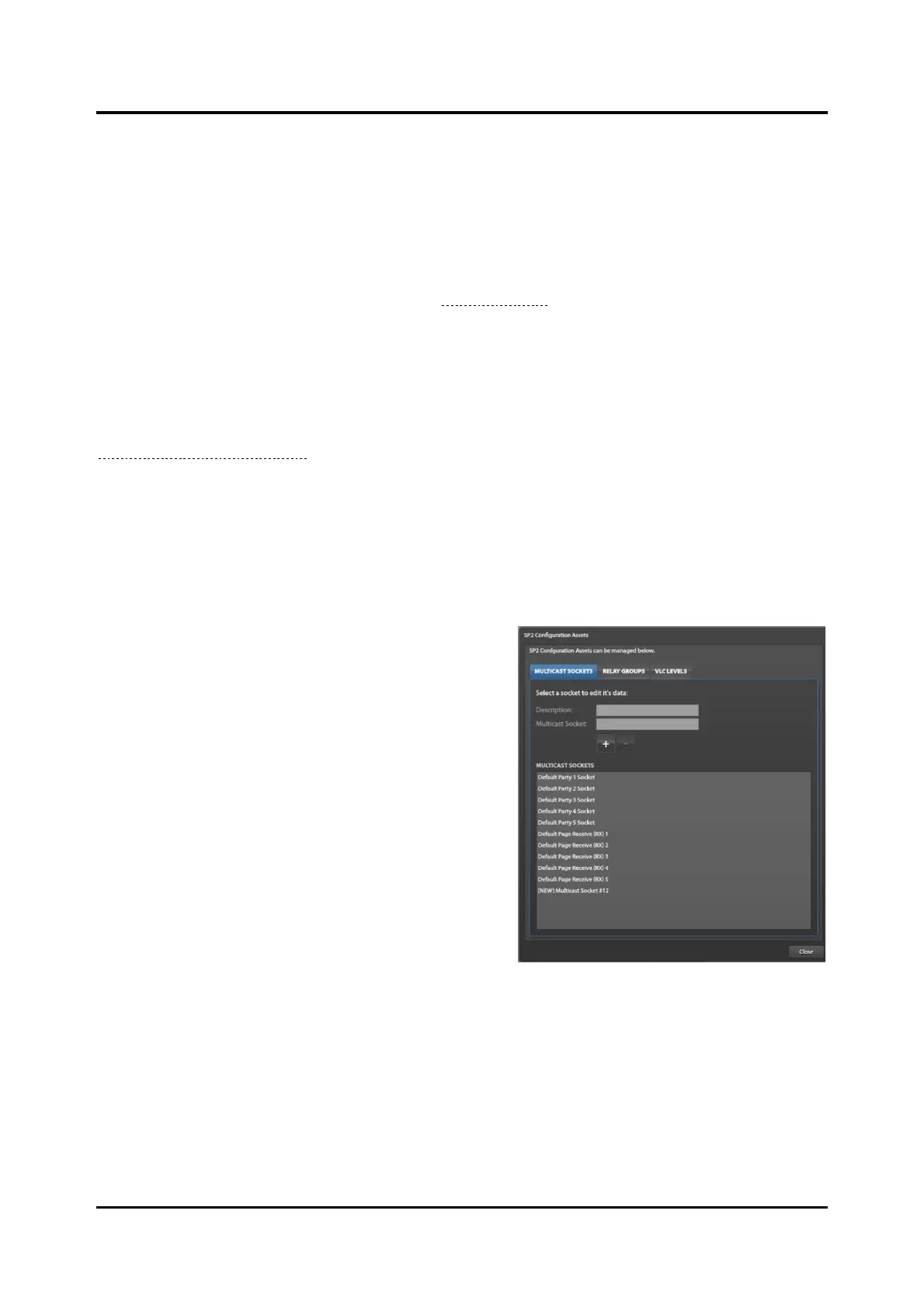

Configure multicast sockets for each page and party line:
1. Create additional multicast sockets by clicking the +
ADD SOCKET button and entering a description and a
valid multicast socket address.
Valid multicast sockets must have IP addresses and
ports in the following range: (239.1–127|129–255.0–
255.0–255: 0–65534).
2. Delete manually created multicast sockets by clicking
the – DELETE SOCKET button.
The five, default page and party sockets cannot be
deleted.
