• Enabling the DTMF ZONE SELECT for the telephone interface, immediately broadcasts the selected
event after entering a valid zone. Disabling zone selection or not entering a valid zone broadcasts the
event to the event’s default zone.
• The Ellipsis buttons provide shortcuts to the EVENT BUILDER screen to configure the event that the
selected DTMF activates (see the EVENT BUILDER under the System Events section).
Volume Level—telephone interface audio gain setting.
Max Duration—maximum duration of a single telephone interface broadcast.
Start Trim—recording delay at the beginning of a record/playback event.
Stop Trim—how much playback audio to remove at the end of the playback. The STOP TRIM duration is
dependent on the operation of the PBX at call termination.
Ring Count: (A System)—number of rings before the telephone interface answers. Selecting the VoIP
telephone interface option replaces this setting with the VOIP TELEPHONE INTERFACE PROPERTIES button
(see the VoIP Telephone Interface Setup section).
DTMF Zone Selection—number of DTMF digits for zone selection. (Configure the DTMF zone
selection codes using the ZONE CONFIGURATION screen (See Page 67.))
VoIP Telephone Interface Setup
VoIP Telephone Interface Properties—Configure the IP PABX (registrar) when using the VoIP
telephone interface for proper registration of the E3 controller. The IP address and port number of the IP
PABX must be known along with the username and password assigned to the E3 controller telephone
interface. Enter this information on the VOIP TELEPHONE INTERFACE SETUP screen shown here:

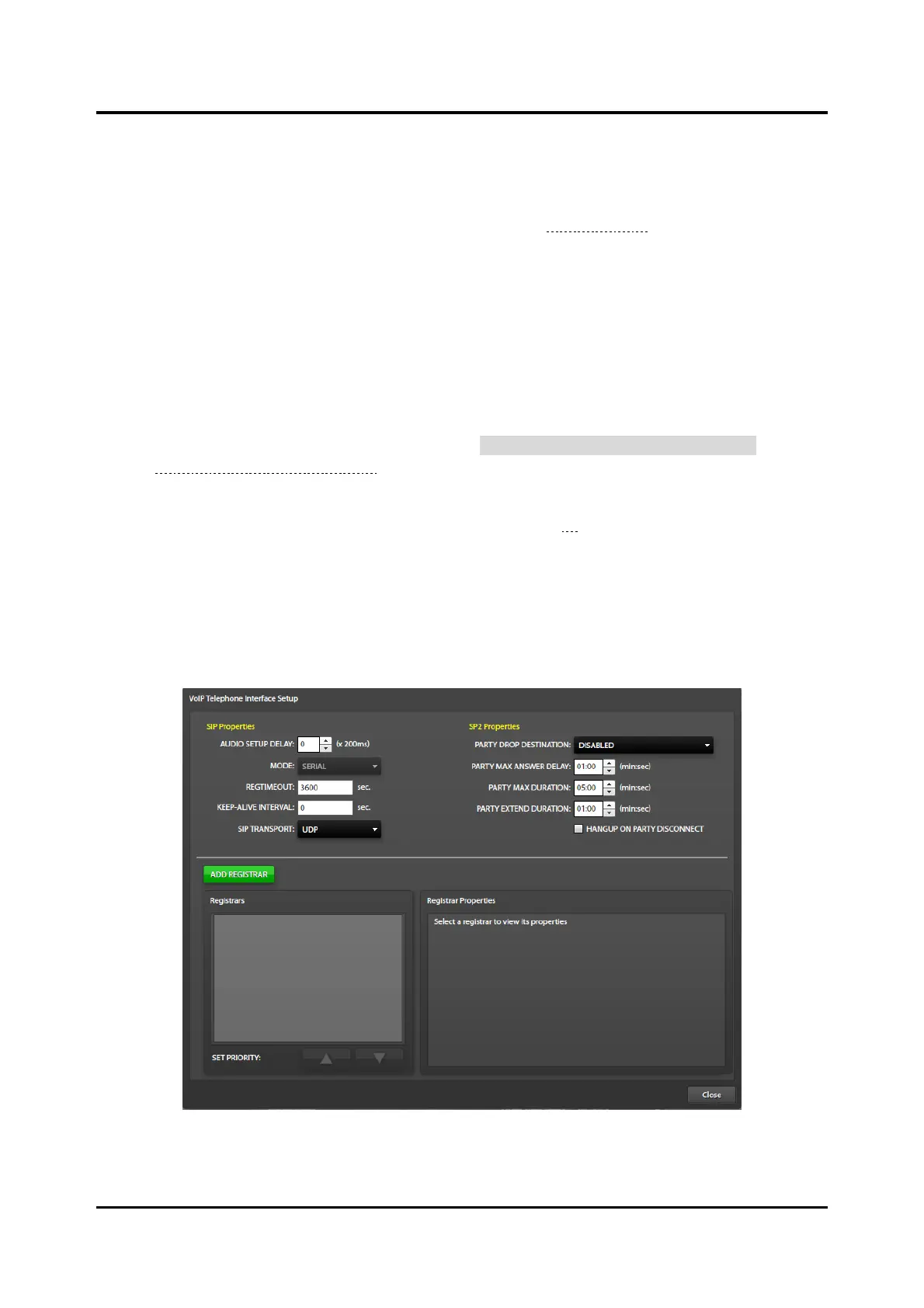

Figure 69. VoIP Telephone Interface Setup
