Select a Group—Select a group from the 16 available groups when the SP2 stations need the same
parameters configured at this level in the hierarchy.

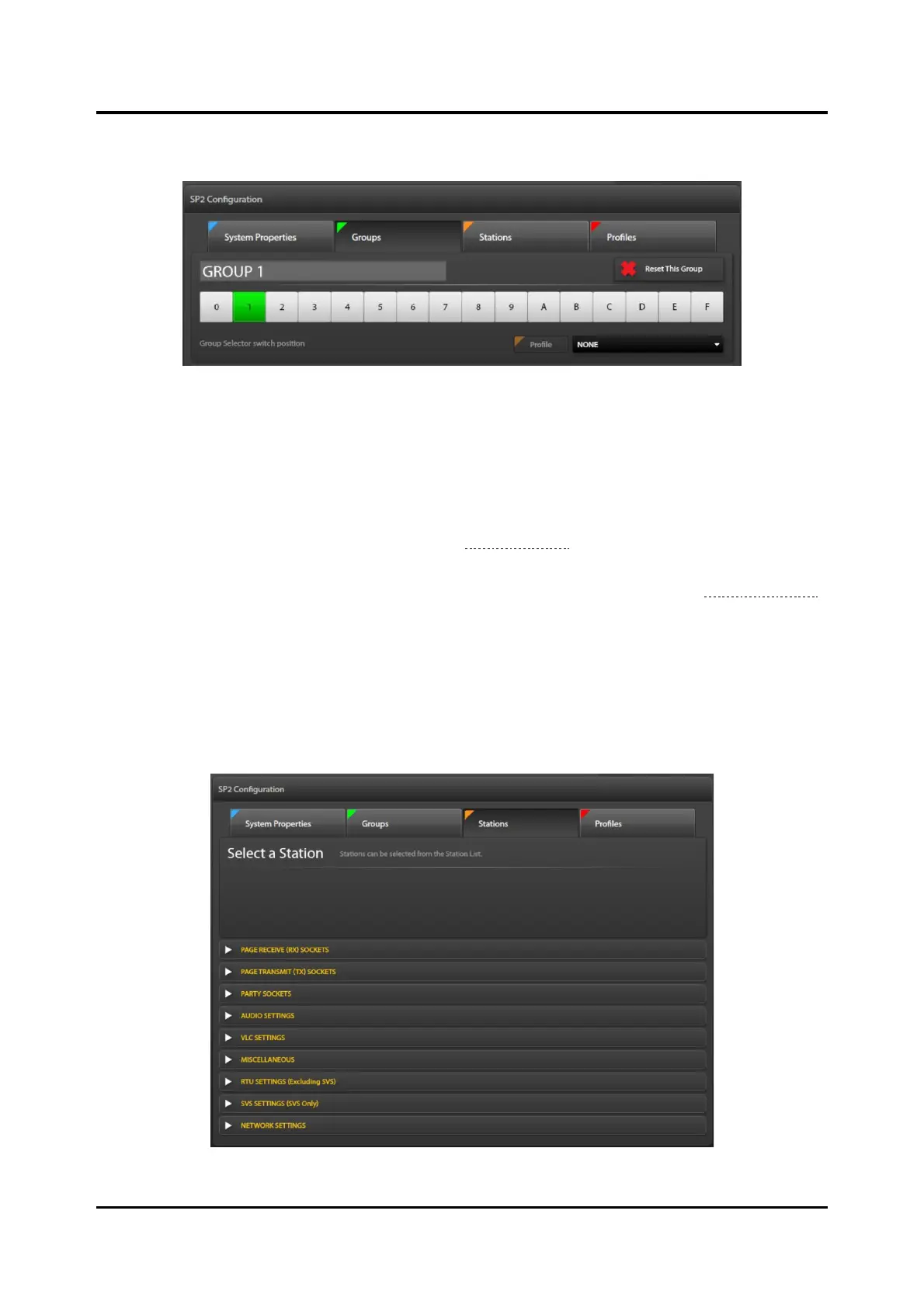

Figure 104. Group 1 Selected
Group 1—The currently selected group appears above the group selection buttons.
Reset this Group—removes all attribute settings configured for the selected group.
Profile—Assign a profile, as required, to SP2 stations with the same group selector switch position.
Profiles provide a method of assigning profile specific values to attributes at the group and station
levels of the hierarchy. To assign a profile to a group, click the PROFILE field label and select profile
one through nine from the dropdown list (see the Profiles Screen section).
Collapsed Parameter Panes—Below the SP2 group information pane are the collapsed parameter panes.
Click the arrow to expand the pane containing parameters needing modification (see the Parameter Panes
section).
Stations Screen
Click the STATIONS button, at the top of the screen, to access the parameter panes at the stations level.
The STATIONS screen permits configuration of attributes for individual SP2/SVS/HUBCOM stations in
the E3 system. The STATION VIEW PANE works with the STATION LIST to open the properties of
individual stations in the configuration.
Figure 105. Station View Screen (No Station Selected)
