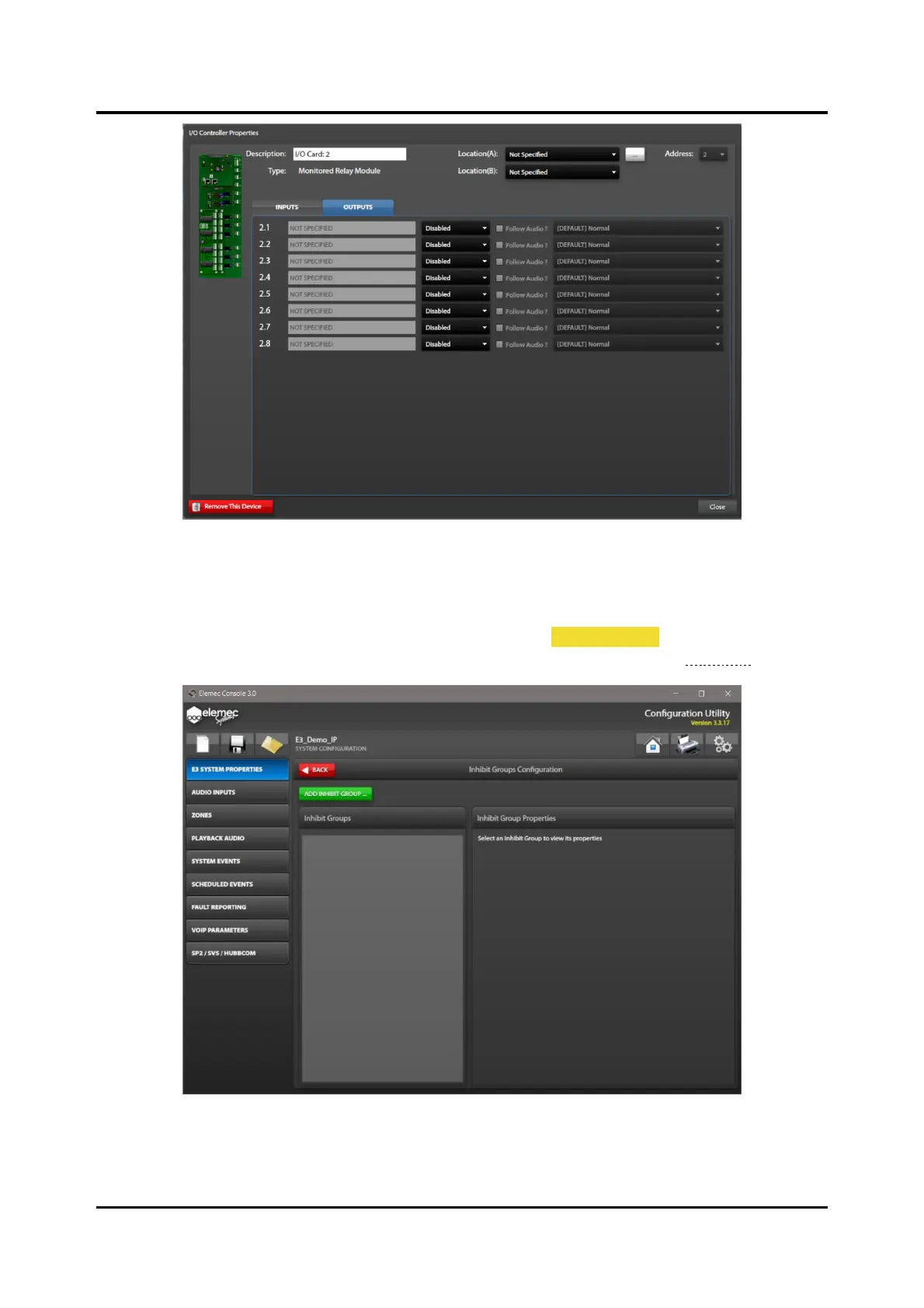

Figure 55. I/O Controller Output Contact Definitions
Inhibit Groups
Inhibit groups allow for selectively inhibiting inputs to the Elemec3 system. Configure system inputs to
trigger an inhibit group that inhibits all inputs in the group. Click INHIBIT GROUPS to access the INHIBIT
GROUP CONFIGURATION screen from the I/O CONTROLLERS SUMMARY screen (see Figure 47).
Figure 56. Inhibit Groups Configuration
