Direct Chain—initiate the event in the DO: drop down list.
The chained event initiates either immediately or when the parent event completes. Selecting Manual
Cancel or Manual Ack, prevents initiation of the chained event when cancelling or acknowledging the
parent event.
Conditional Chain—initiate one of two events in the DO: drop down list based on the status of the
trigger selected in the IF: drop down list.
The dropdown list contains inputs, outputs, and logic flags. The chained event initiates either
immediately or when the parent event completes. Selecting Manual Cancel or Manual Ack prevents
initiation of the chained event when cancelling or acknowledging the parent event.
Event Groups
An event group is a collection of playback events that require different mix/attenuation properties than a
standard event. Use event groups to sequence alarms when multiple events are active simultaneously.
The maximum number of event groups is 16. There are three types of event groups; standard, sequenced,
and contingent override.

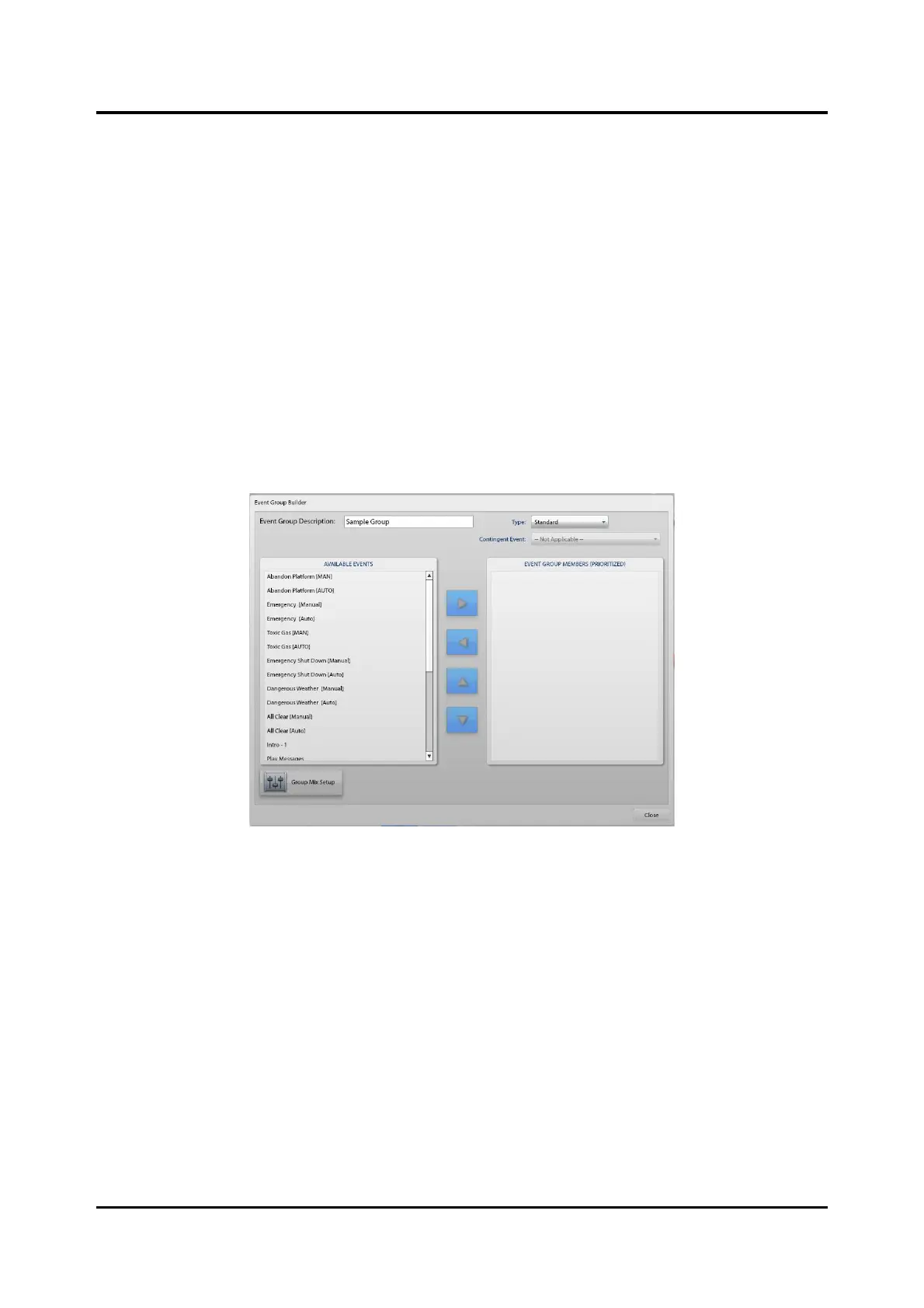

Figure 90. Event Group Builder
Event Group Description—user-defined unique description of the event group. This name identifies the
event group in all areas of the system.
Type: (of Event Group)
• Standard—included events can have mix/attenuation properties that differ from the Global
Mix/Attenuation properties. Use standard event groups for various scenarios when the
implementation requires unique Mix/Attenuation properties.
• Sequenced—active events play in sequence if more than one event in the group becomes active.
Active events in the group will effectively take turns playing as long as they are active.
• Contingent Override—initiate an alternate event if more than one event in the group becomes
active.
The contingent event must have a higher priority than the group. For example, if multiple fire
alarm events within the group initiate; the contingent event overrides the active events within the
group.
