GE CARESCAPE ONE - Respiration Measurement Setup; Preparing the Patients Respiration Electrode Sites; Respiration Equipment to Patient Connection with CARESCAPE ONE; Respiration Lead and Breath Detection

Impedancerespiration
Respirationmeasurementsetup

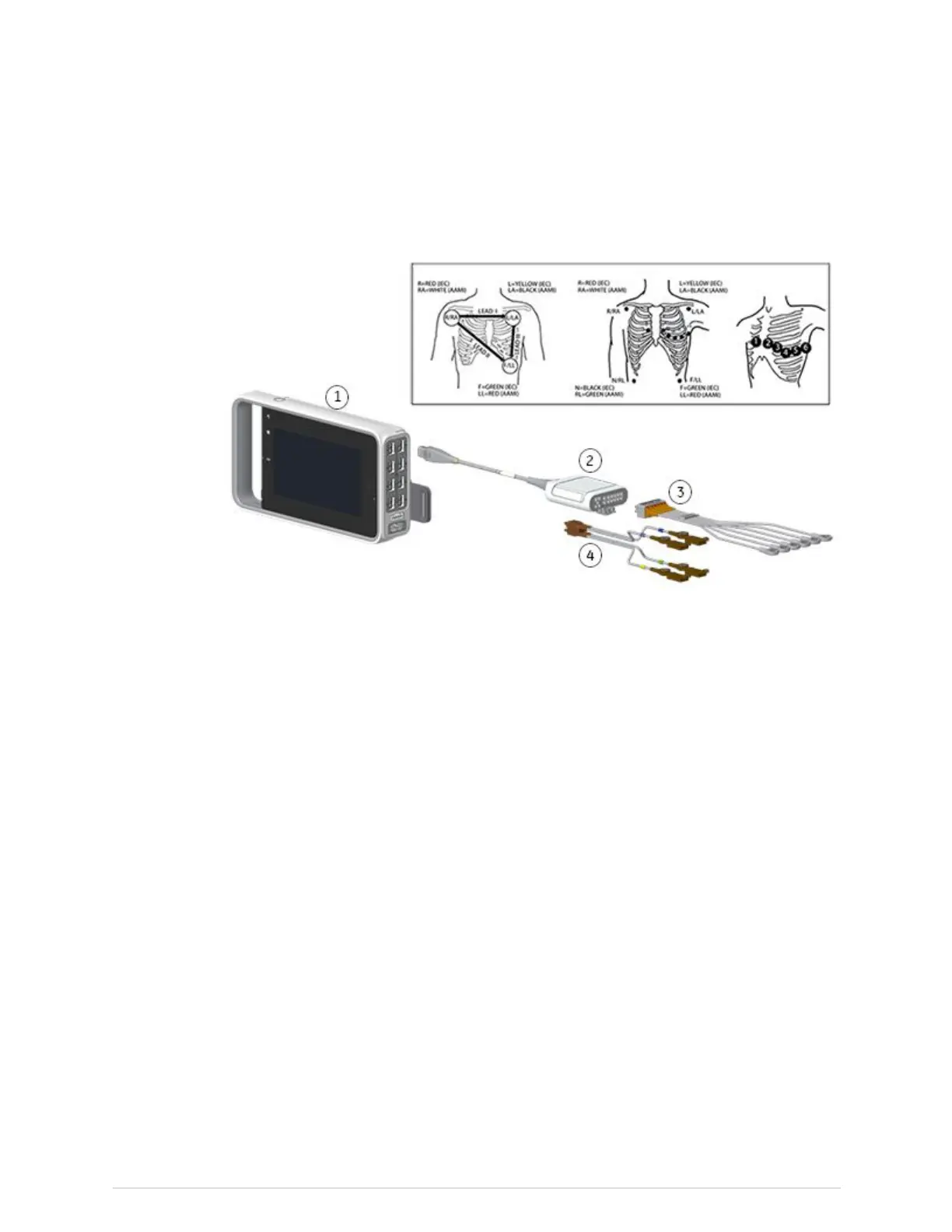

Respirationequipmenttopatientconnectionwith
CARESCAPEONE
1.CARESCAPEONE
2.CARESCAPEECG
3.AAMI/AHAorIEC3-leadwire,5-leadwire,or6-leadwireset
4.AAMI/AHAorIECprecordialleadsleadwireset
Preparingthepatient’srespirationelectrodesites
Excessivebodyhairorskinoilreduceselectrodecontactwiththeskinanddecreases
thequalityofelectrodesignal.
Whenpreparingtheelectrodesites,avoidobviouslayersoffatandmajormuscles.
1.Shaveanyhairfromtheelectrodesite.
2.Gentlyrubthesurfaceoftheskintoincreasecapillarybloodow.
3.Cleantheskinwithalcoholoramildsoapandwatersolutiontoremoveskinoil
anddeadorabradedskincells.
4.Drytheskincompletelybeforeapplyingtheelectrodes.
Respirationleadandbreathdetection
RespirationleadsidentifytheECGleadsusedforrespirationmeasurement.Each
respirationleadissuitedforspecicbreathdetectionconditions:
2094480-001CARESCAPEONE125
