CO₂
●Forinformationonmaterialsusedinaccessoriesandtheirbiocompatibility,refer
totheinstructionsforuseintheaccessorypackage.
●Thewatertrapiscontainedwithinthesamplelines.
●Placetheairwayadapterwithallsamplingportsupwards.
●Alwayscheckthetightnessofallconnections.
●Materialsusedinaccessoriesarenottoxic.Accessoriesdonotcontainnatural
rubberlatex.Alsoseetheinstructionsforuseintheaccessorypackage.
●Thesystemautomaticallyperformsbarometricpressurecompensationtomeet
thestatedaccuracyoftheLoFloSidestreamModule.
●Nitrousoxide,elevatedlevelsofoxygen,helium,xenon,halogenatedhydrocarbons,
andbarometricpressurecaninuencetheCO
2
measurementwithRespironics
LoFlo.
●Ifnitrousoxideisused,alwaysuseN
2
Ocompensation.
CO₂measurementsetup

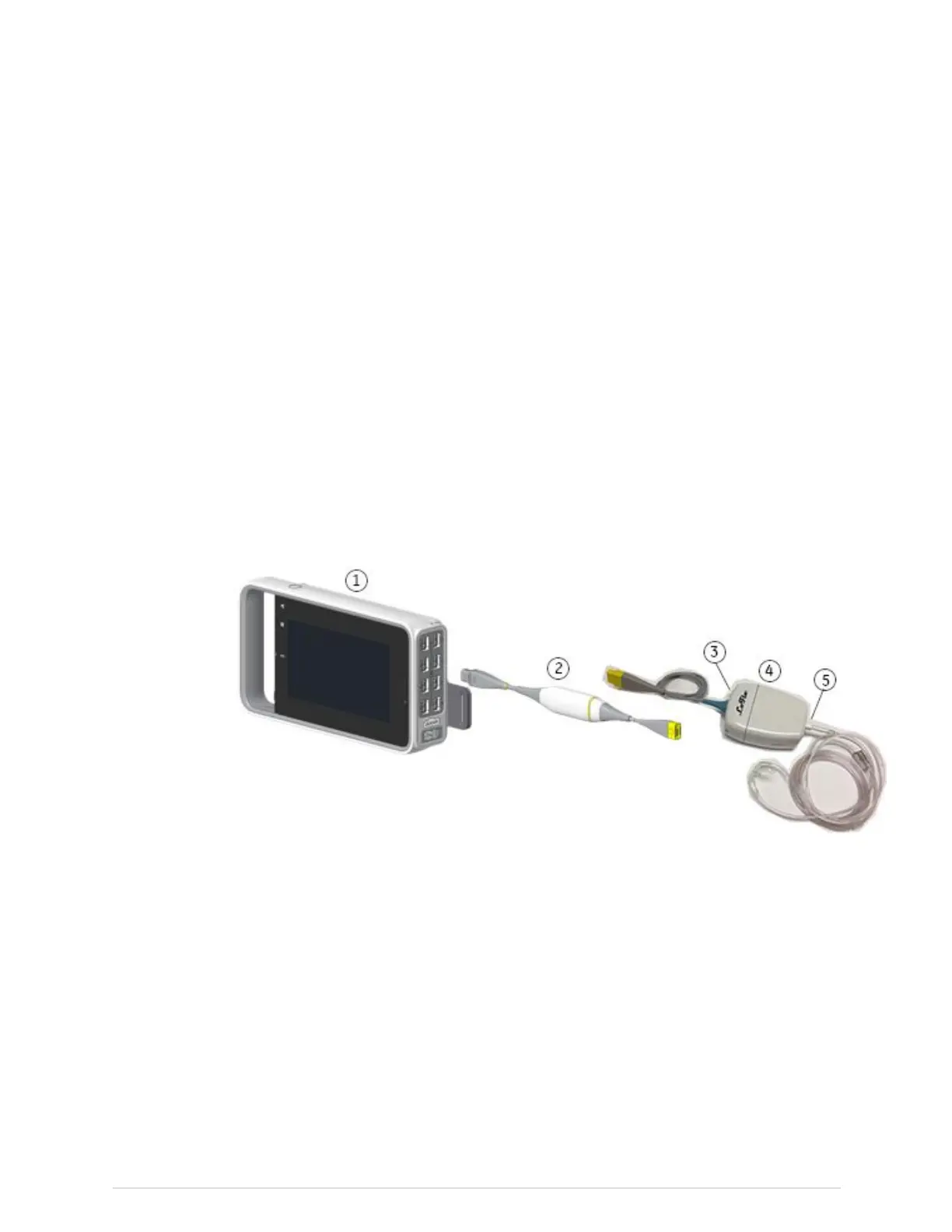

EquipmentconnectionwithCARESCAPECO
2
Forintubatedandnon-intubatedpatients.
1.CARESCAPEONE
2.CARESCAPECO
2
3.Exhaustport
4.LoFloSidestreamModule
5.Accessoryport(forsamplelines,nasalcannulas,etc.)
PreparingthesetupforCARESCAPECO
2
1.ConnecttheLoFloSidestreamModuletoCARESCAPECO
2
.
2.ConnectCARESCAPECO
2
totheCARESCAPEONE.
3.ConnectthesamplelinetotheLoFloSidestreamModule.
4.ZerotheLoFloSidestreamModule.
2094480-001CARESCAPEONE187
