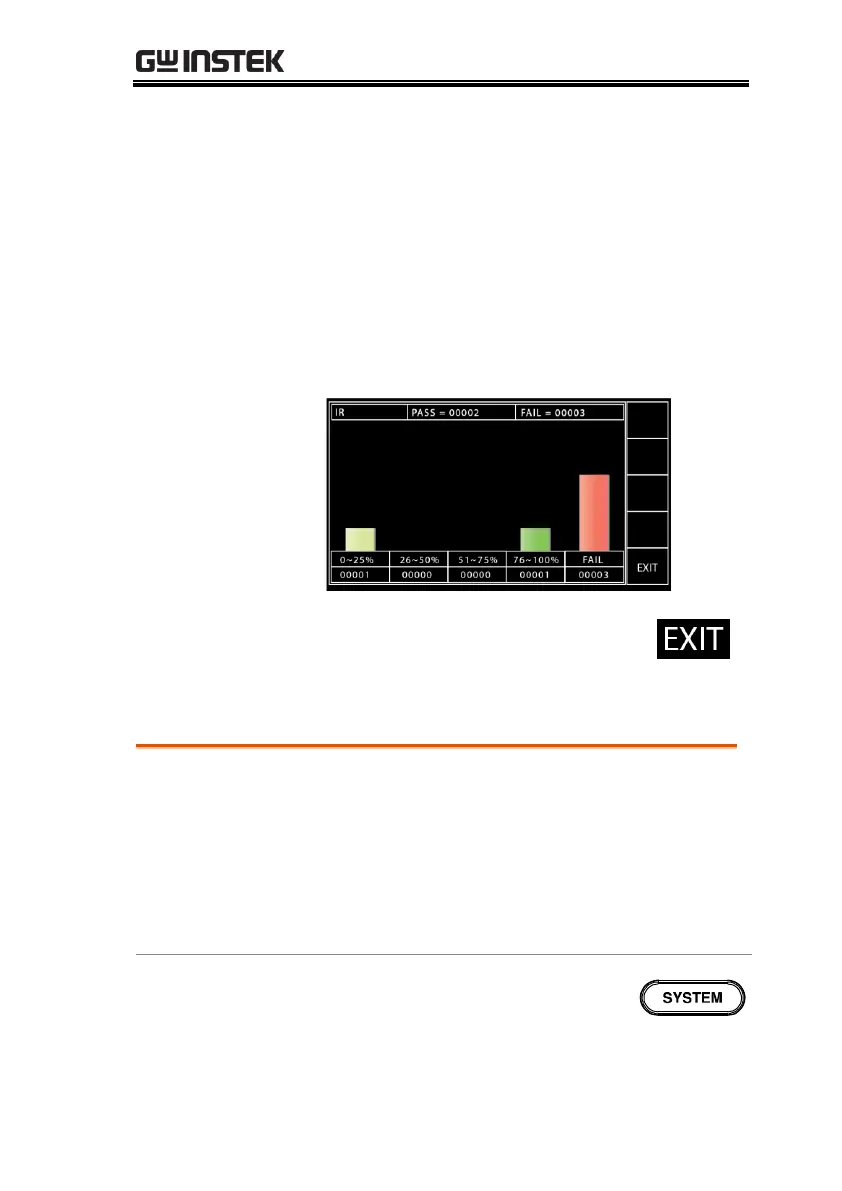

5. The distributions of PASS and FAIL statistics are
well illustrated in the histogram with table
display in which the upper side reads the
individual PASS and FAIL amounts for test
function. The mid and lower side depicts FAIL
amounts in the far-right red strip with number
below, whilst the PASS amounts are described in
strips of different colors with numbers below
indicating the percentage of varied measured
values in relation to the set HI & LOW range.
6. Press the EXIT soft-key to exit from
the STATISTICS page.
USB Disk Settings
The measurements data can be stored in the
connected USB disk. In this section user can
determine a user-defined name for data to be
saved into the inserted USB disk. It is noted that
only USB1.1 or 2.0, FAT16 or FAT32, capacity <=
32GB can support this function. Refer to page 15
for details on USB port in the front panel.
1. Press the SYSTEM button on the
front panel when the tester is
under READY status in either
MANU or AUTO test.
