GETTING STARTED
17

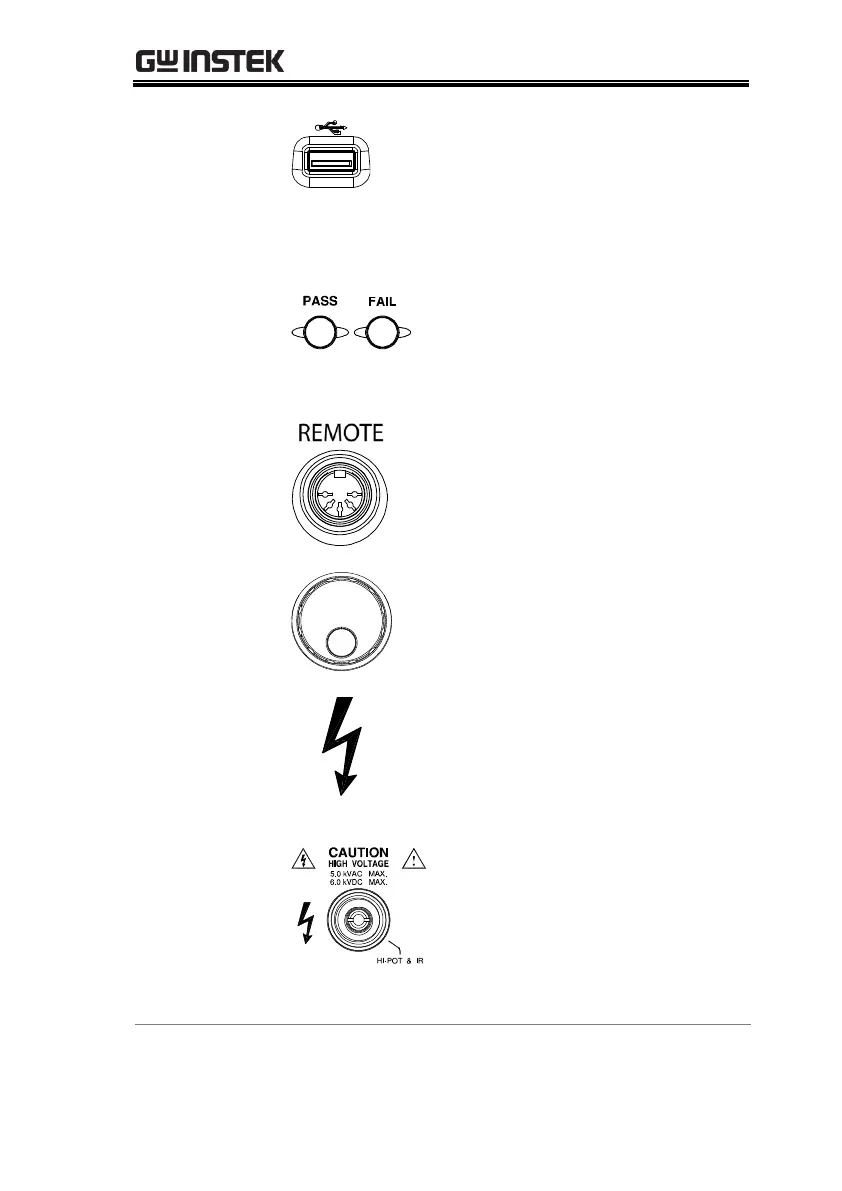

USB Host Port
It can connect with USB flash drive
for data and log import/export
and for firmware update. Also, it is
able to connect with USB disk for
screenshot hardcopy and barcode
scanner for convenient tests.
Pass/Fail
indicators
The PASS and FAIL indicators
light up upon a PASS or FAIL test
result at the end of a manual test
or automatic test.
REMOTE
terminal
The REMOTE terminal is used to
connect to a remote controller.
Scroll wheel
The scroll wheel is used to edit
parameter values.
HIGH VOLTAGE
indicator
The HIGH VOLTAGE indicator
will light up red when an output
terminal is active. Only after the
test has finished or stopped will
the indicator turn off.
HIGH VOLTAGE
output terminal
The HIGH VOLTAGE terminal
output is used for outputting the
testing voltage in ACW, DCW and
IR tests. The terminal is recessed
for safety. This terminal is used in
conjunction with the RETURN
terminal.
