TEST Status
(Orange Color)

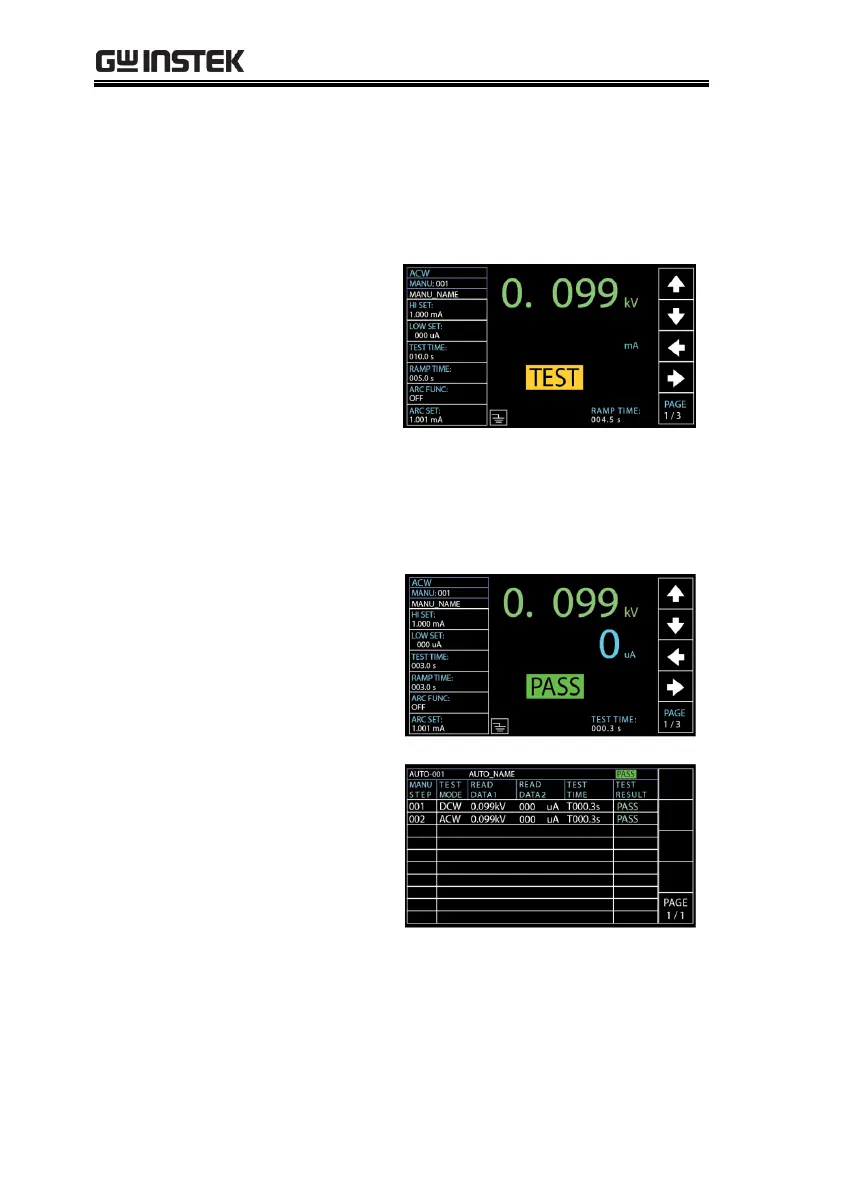

TEST status is active when a MANU test or
AUTO test is running. Pressing STOP will
cancel the MANU test or the remaining steps in
an AUTO test instantly. The TEST status in
AUTO test is identical with that of MANU test.
TEST status
in MANU
and AUTO
test
PASS Status
(Green Color)
When a MANU test result is within the range of
HI and LOW sets, the PASS status is shown on
display. For AUTO test, the PASS status only
shows when all the affiliated test steps are passed.
PASS status
in MANU
test
PASS status
in AUTO
test
