GW Instek GPT-10000 Series User Manual

OPERATION
99

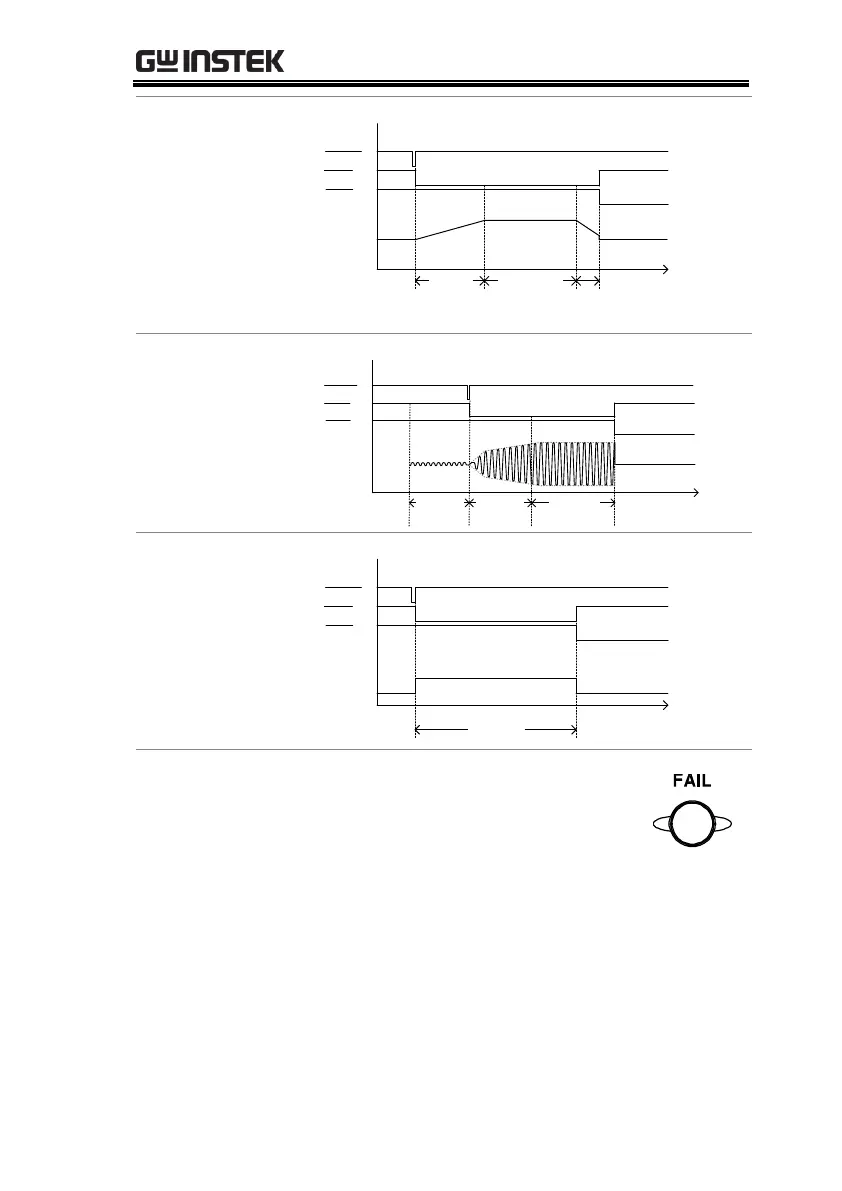

IR PASS Timing
Output V
time
START
TEST
PASS
RAMP
UP
TEST TIME
RAMP DOWN
& DISCHARGE
GB PASS Timing
START
PASS
Output I
TEST
Contact
RAMP Test
time
Time 0.1s 0.1s UP Time
CONT PASS
Timing
Output I
time
START
TEST
PASS
Test Time
FAIL Judgment
1. When the test is judged as FAIL,
FAIL will be displayed on screen,
the buzzer will sound and the
FAIL indicator will be lit red.
As soon as a test is judged FAIL,
power is cut from the terminals.
