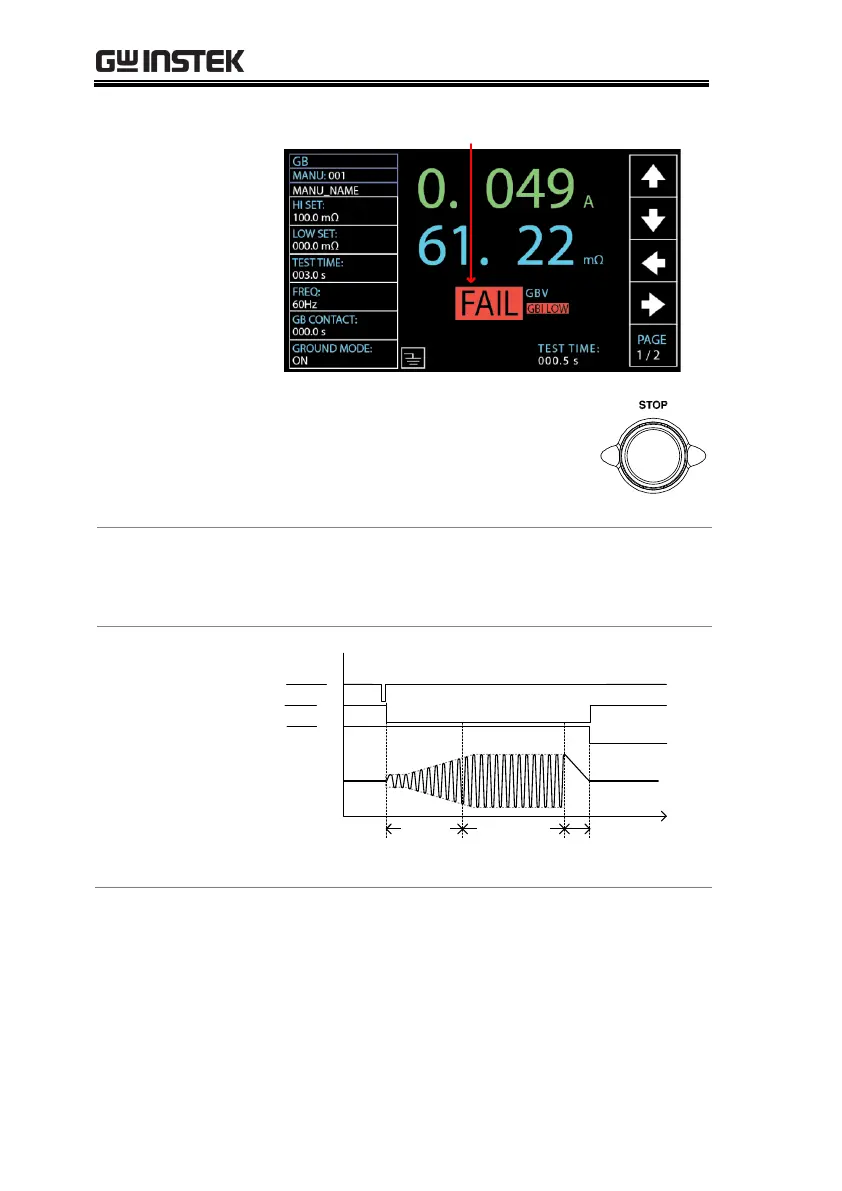

FAIL Judgment
2. The FAIL judgment will be held on
the display until the STOP button
is pressed. Pressing the STOP
button will return the tester back to
the READY status.
FAIL Timing
Diagrams
The timing diagrams below show the ACW, DCW,
IR, GB and CONT timing for the START status,
TEST status and FAIL judgment.
ACW FAIL Timing
DISCHARGE
Output V
time
START
TEST
FAIL
RAMP
UP
TEST TIME
