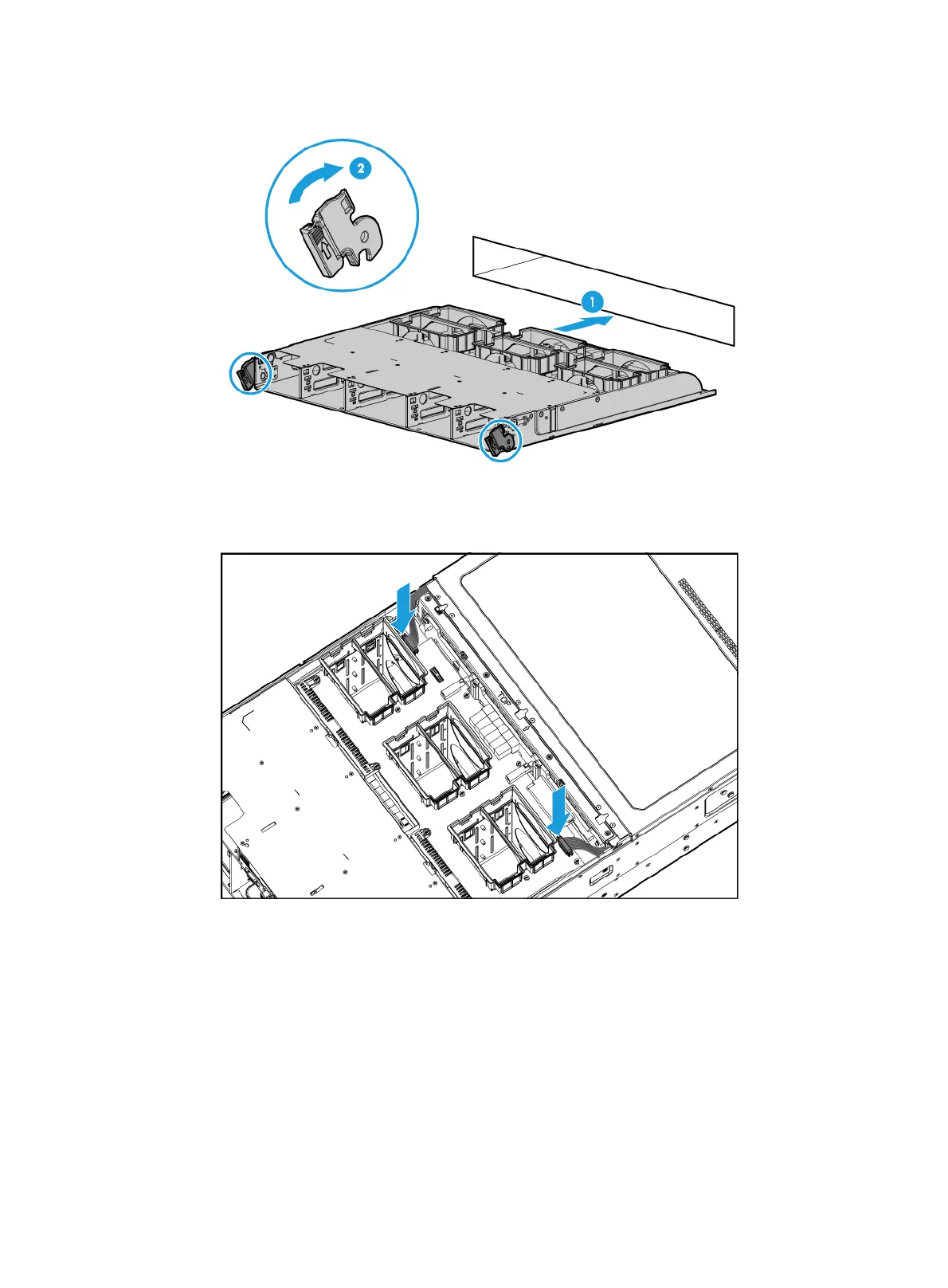

Figure 7-52 Installing the PDB
d. Connect cables to the PDB, as shown in Figure 7-53.
Figure 7-53 Connecting cables to the PDB
2. Install the management module. For more information, see "Installing the management
module."
3. Install the removed power supplies. For more information, see "Installing power supplies."
4. Install the removed fan modules. For more information, see "Replacing a fan module."
5. Install the po
wer supply air baffle. For more information, see "Replacing the power supply air
baffle."
6. Install the ch
assis access panel. For more information, see "Replacing the chassis access
panel."
7. Rack-mount the server. For more information, see "Installing the server."
8. Connect the power cord. For more information, see "Connecting the power cord."
9. Powe
r on the server. For more information, see "Powering on the server."
