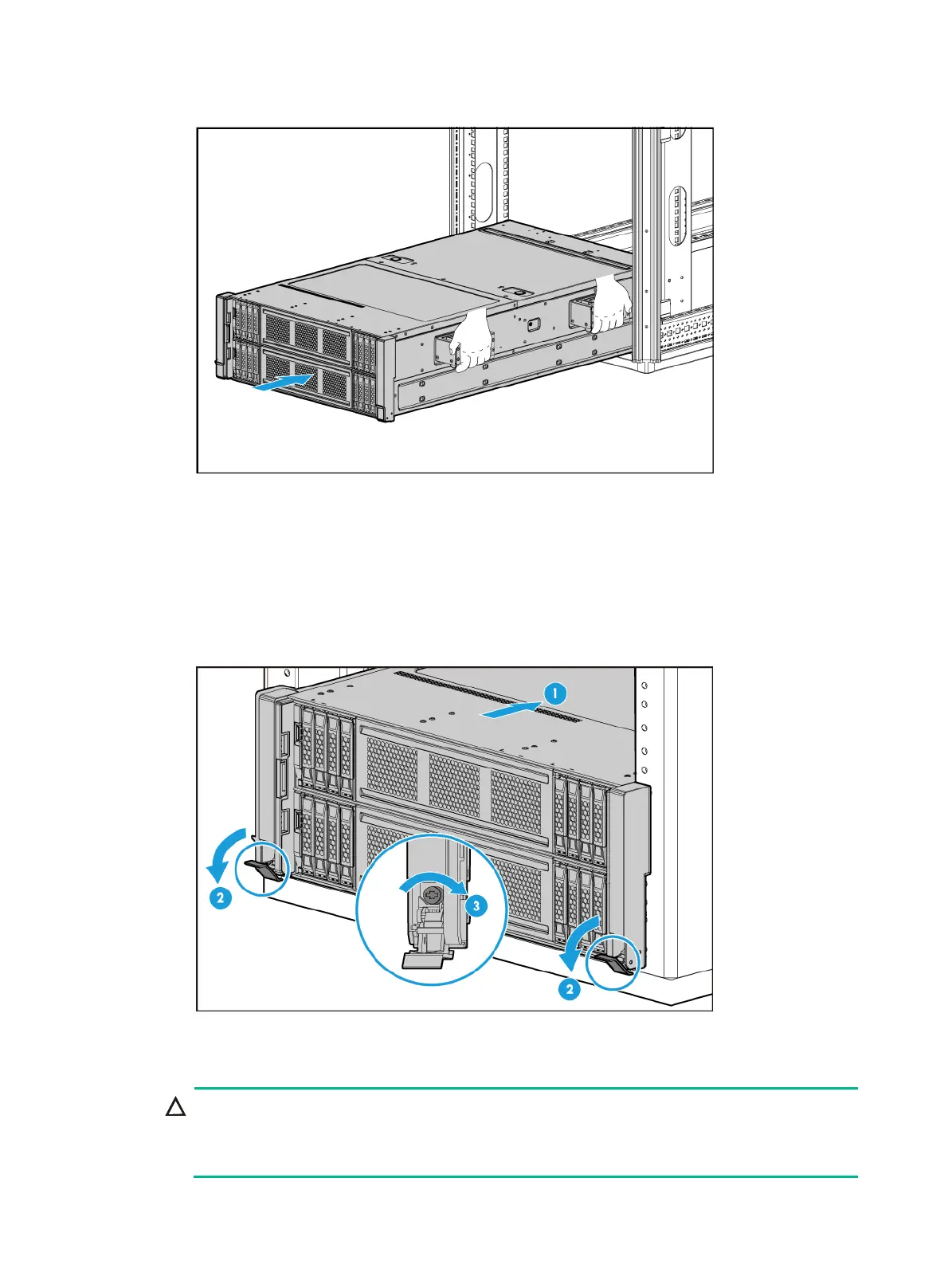

Figure 3-2 Rack-mounting the server
6. Secure the server, as shown in Figure 3-3:
a. Push the server until the chassis ears are flush against the rack front posts, as shown by
callout 1.
b. Unlock the latches of the chassis ears, as shown by callout 2.
c. Fasten the captive screws inside the chassis ears and lock the latches, as shown by callout
3.
Figure 3-3 Securing the server
7. Install the removed compute modules. For more information, see "Installing a compute
module."
CAUTION:
To avoid errors such as drive identification failure, make sure each compute module is installed
into the correct slot. You can view the compute module label pasted on the module's package to
determine the correct slot.
