3-4

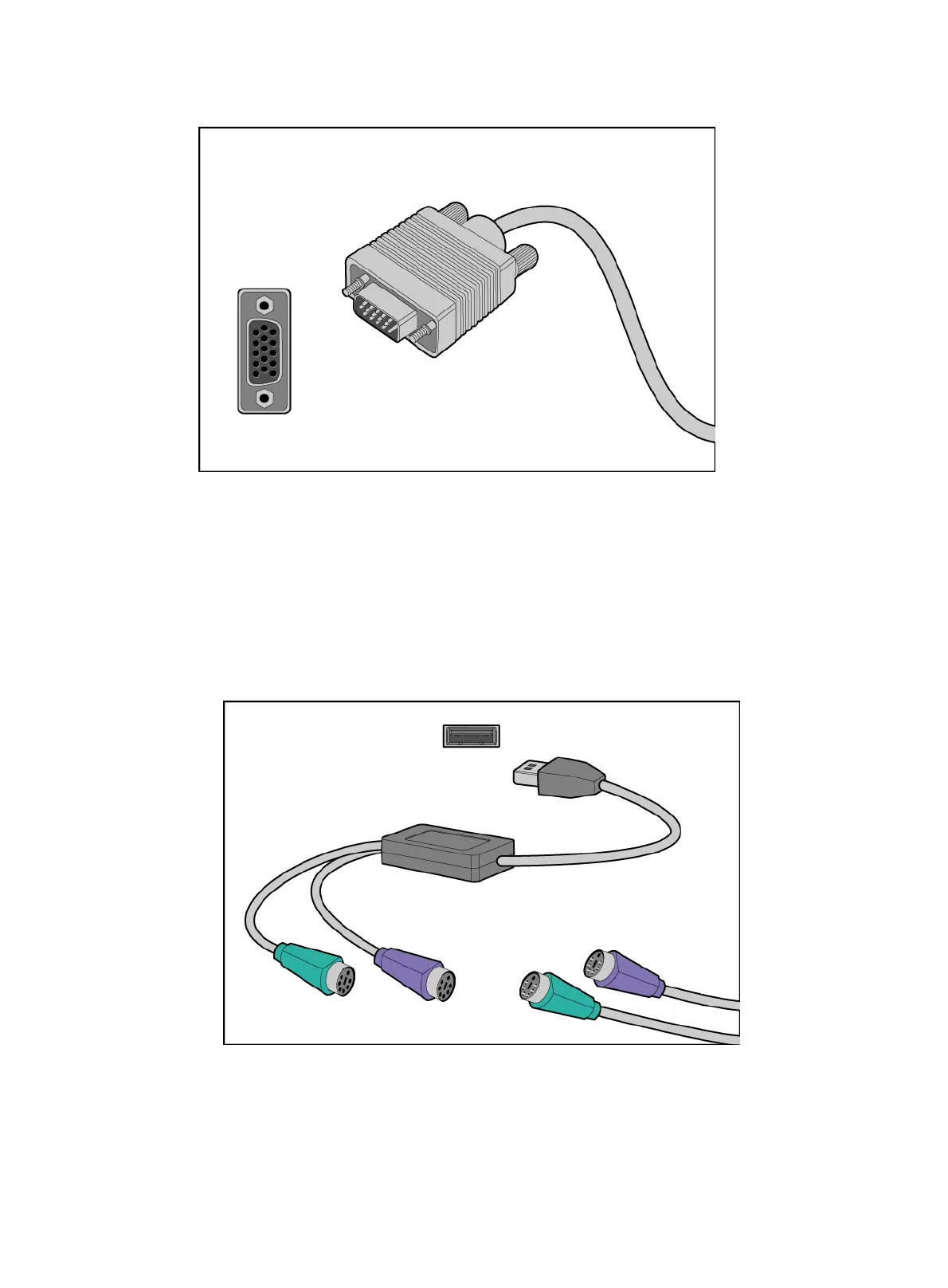

Figure 3-4 Connecting a VGA cable
2. Connect the other plug of the VGA cable to the VGA connector on the monitor, and fasten the
screws on the plug.
3. Connect the mouse and keyboard.
{ For a USB mouse and keyboard, directly connect the USB connectors of the mouse and
keyboard to the USB connectors on the server.
{ For a PS2 mouse and keyboard, insert the USB connector of the USB-to-PS2 adapter to a
USB connector on the server. Then, insert the PS2 connectors of the mouse and keyboard
into the PS2 receptacles of the adapter.
Figure 3-5 Connecting a PS2 mouse and keyboard by using a USB-to-PS2 adapter
