6-2
For efficient use of storage, use drives that have the same capacity to build a RAID. If the drives
have different capacities, the lowest capacity is used across all drives in the RAID. Whether a
drive with extra capacity can be used to build other RAIDs depends on the storage controller
model. The following storage controllers do not allow the use of a drive for multiple RAIDs:
{ RAID-LSI-9361-8i(1G)-A1-X.
{ RAID-LSI-9361-8i(2G)-1-X.
{ RAID-LSI-9460-8i(2G).
{ RAID-LSI-9460-8i(4G).
{ RAID-P460-B4.
{ HBA-H460-B1.
If the installed drive contains RAID information, you must clear the information before
configuring RAIDs. For more information, see the storage controller user guide for the server.
Procedure
1. Remove the security bezel, if any. For more information, see "Replacing the security bezel."
2. Press the latch on the drive blank inward with one hand, and pull the drive blank out of the slot,
as shown in Figure 6-2.

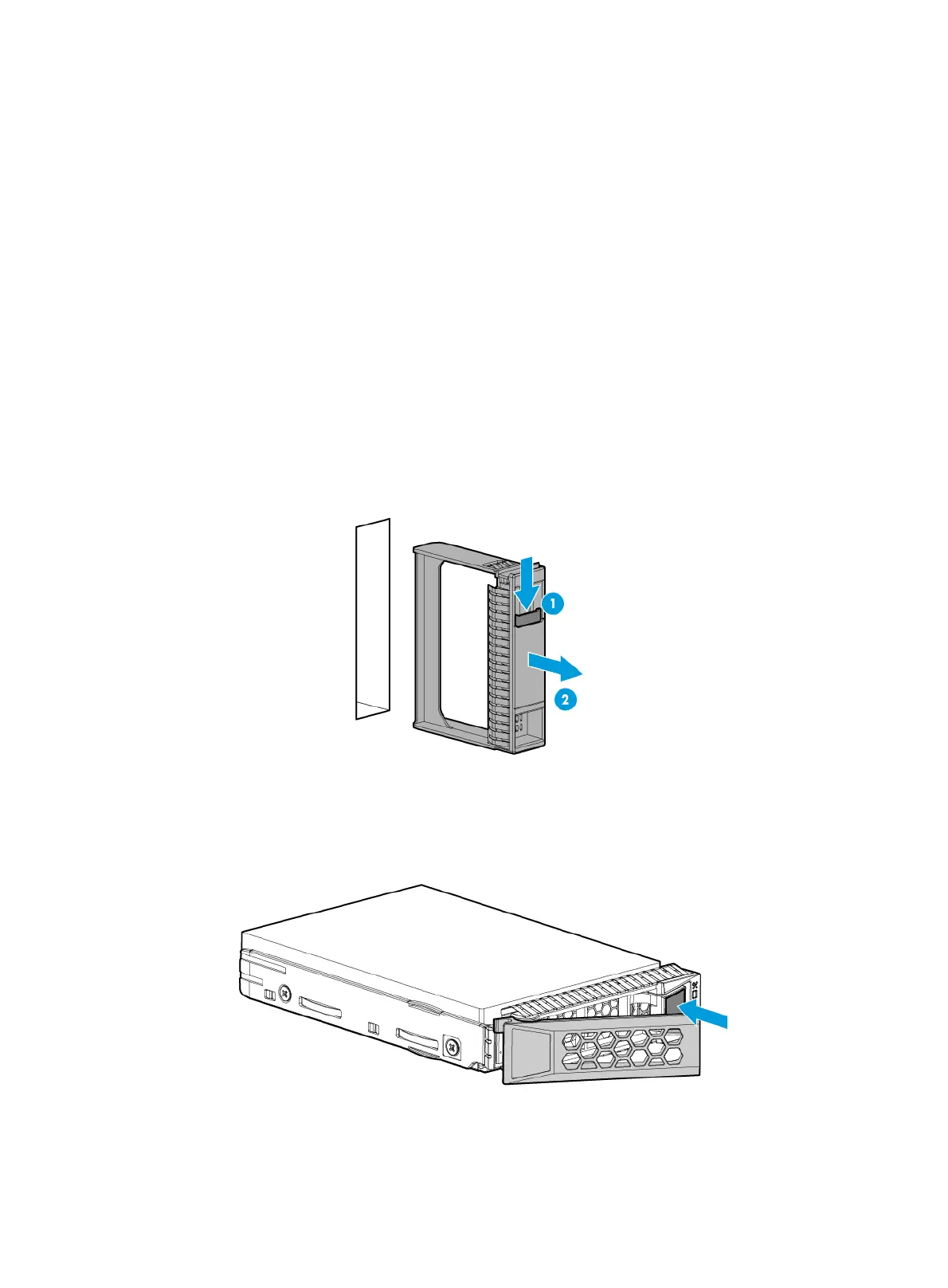

Figure 6-2
Removing the drive blank
3. Install the drive:
a. Press the button on the drive panel to release the locking lever.
Figure 6-3 Releasing the locking lever
b. Insert the drive into the slot and push it gently until you cannot push it further.
c. Close the locking lever until it snaps into place.
