6-28

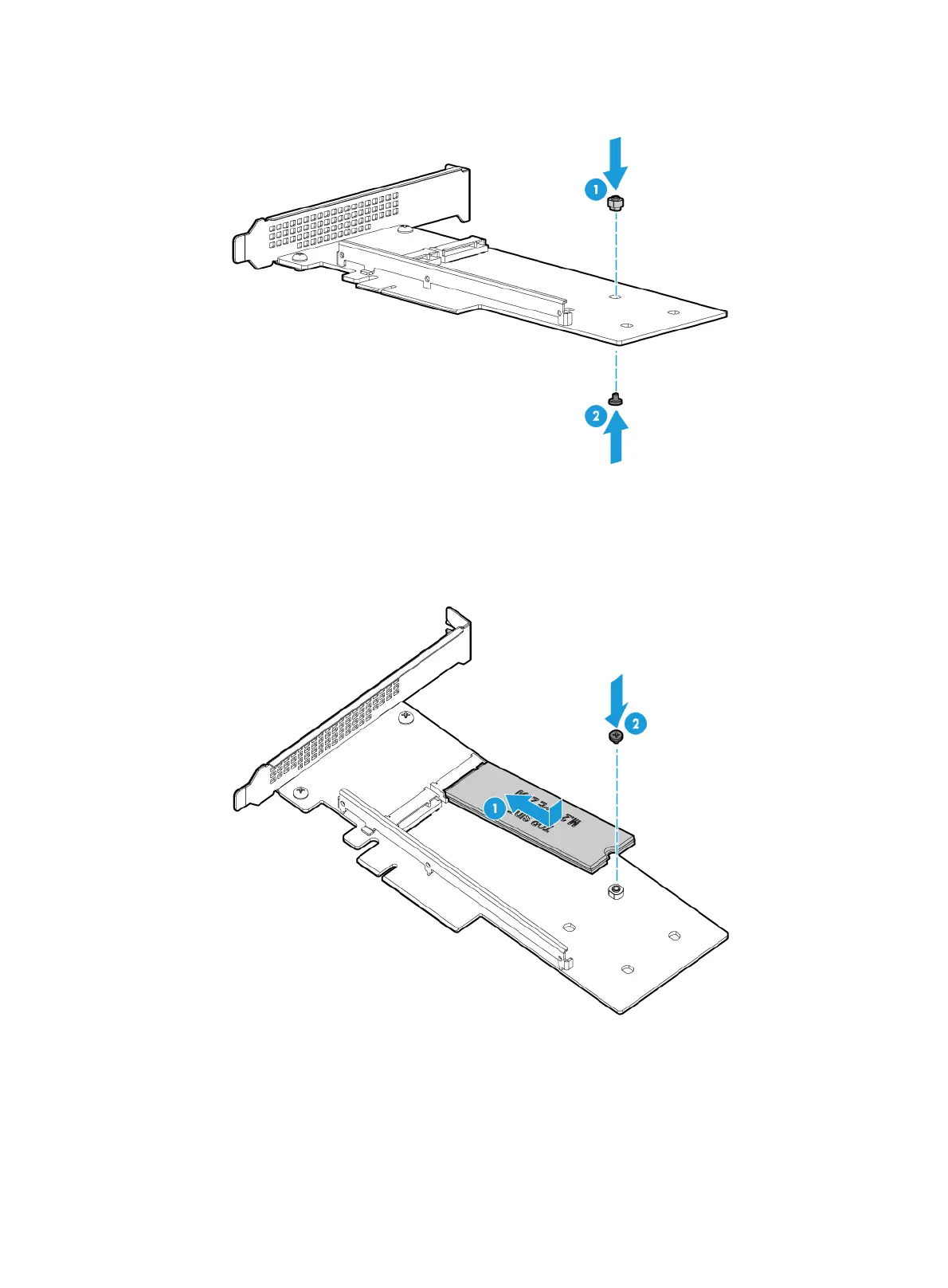

Figure 6-33 Installing the internal threaded stud
b. Insert the connector of the SSD into the socket, and push down the other end of the SSD.
Then, fasten the screw provided with the transfer module to secure the SSD into place, as
shown in Figure 6-34.
Figure 6-34
Installing a PCIe M.2 SSD to the M.2 transfer module
8. Install the M.2 transfer module to the riser card. For more information, see "Installing a riser
card and a PCIe module in a compute module."
9. Install the riser card to the compute module. For more information, see "Installing a riser card
and a PCIe m
odule in a compute module."
10. Install the compute module access panel. For more information, see "Replacing a compute
module a
ccess panel."
