Cutter holder 5.0 mm
07781-0010400

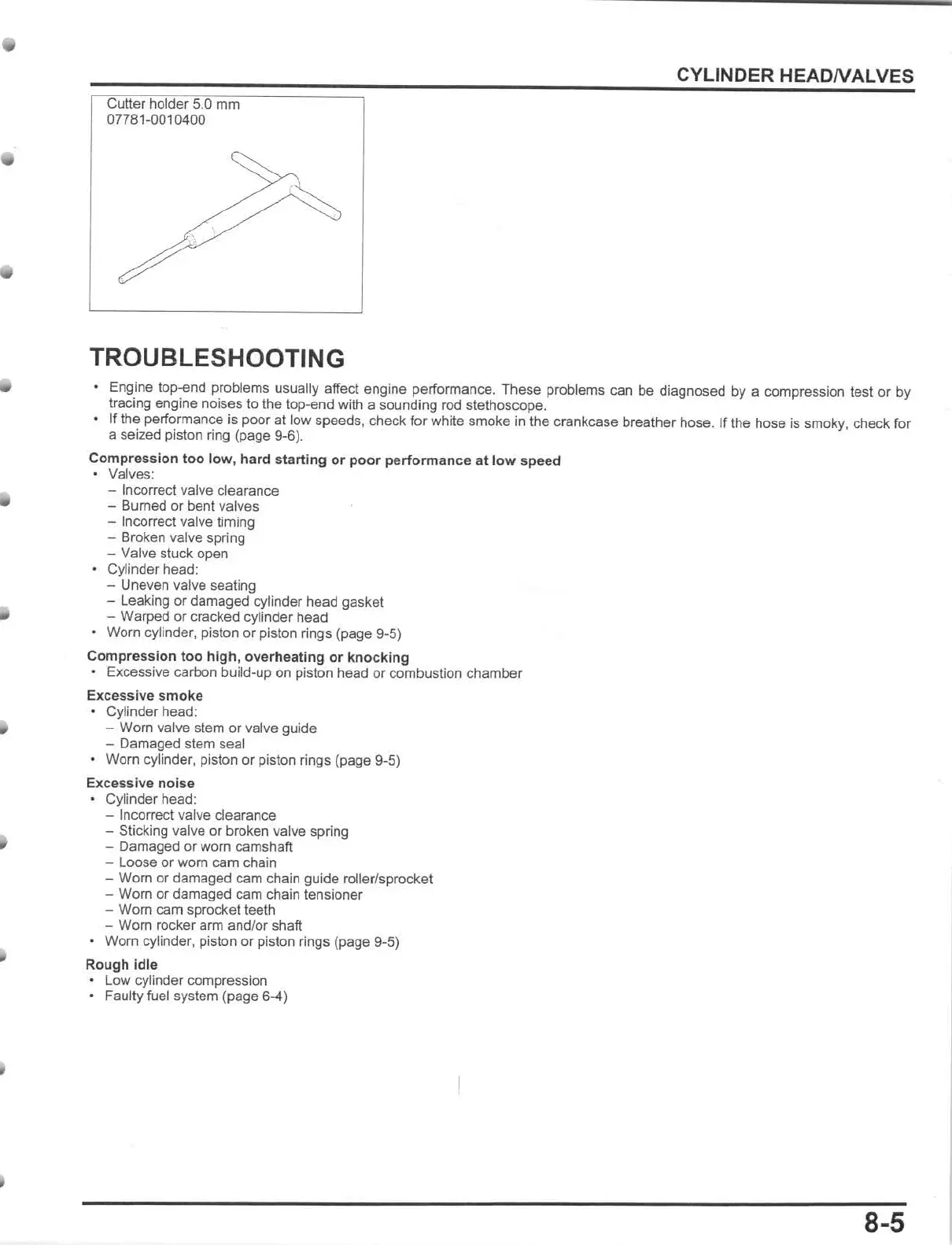

TROUBLESHOOTING
CYLINDER HEADNALVES
Engine lop-end problems usually affect engine performance. These problems can be diagnosed by a compression lest or by
traci
ng engine noises to the top-end with a sounding rod stethoscope.
If the performance is poor at low speeds, check for white smoke in t he crankcase breather hose. If the hose is smoky, check for
a seized piston ring (page 9-6).
Compression too low, hard starting or poor performance at low speed
Valves:
- Incorrect valve clearance
- Burned or bent va l ves
- Incorrect valve t iming
- Broken valve spring
- Valva stuck open
Cylinder head:
- Uneven valve sealing
-
leaking or damaged cylinder head gasket
- Warped
or cracked cylinder head
Worn cylinder, piston or piston rings (page 9-5)
Compression too high , overheating or knocking
• Excessive carbon buiid·up on piston head or combustion chamber
Excessive smoke
Cylinder head:
- Worn valve stem or valve guide
- Damaged stem seal
Worn cylinder, piston
or piston rings (page 9·5)
Excessive noise
Cylinder head:
- Incorrect valve clearance
- Sticking valve or broken valve spring
- Damaged or worn camshaft
- Loose or worn cam chain
- Worn or damaged cam chain guide roner/sprocket
- Worn or damaged cam chain tensioner
- Worn
cam sprocket teeth
- Worn rocker arm andlor shaft
Worn cylinder, piston or piston rings (page 9-5)
Rough idle
low cylinder compression
• Faulty fuel system (page 6-4)
8-5
