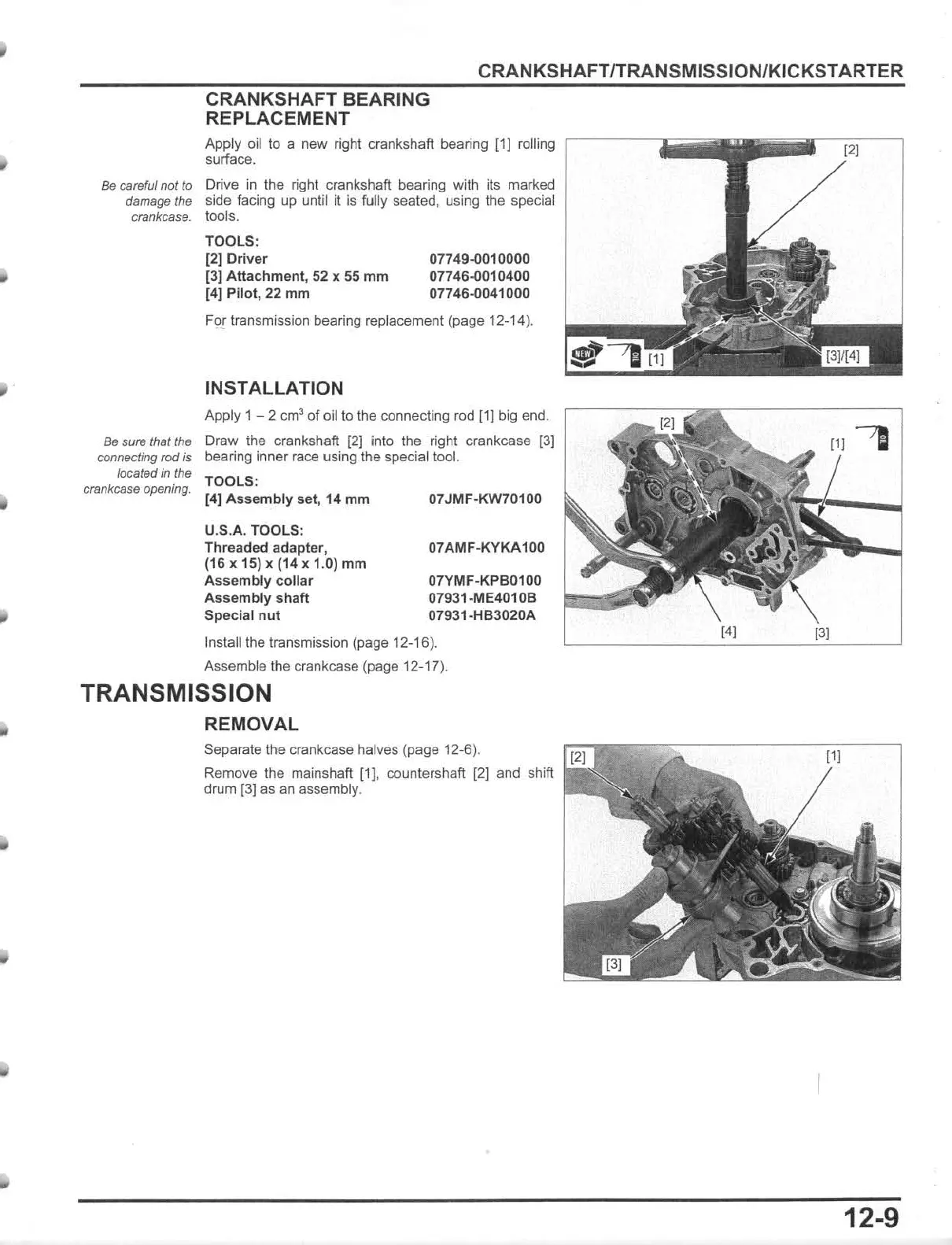

CRANKSHAFTfTRANSMISSION/KICKSTARTER
CRANKSHAFT BEARING
REPLACEMENT
Apply oil to a new right crankshaft bearing
[1)
rolling
surface.
Be
careful
not
/0
Dr
ive
in
the
righ
t crankshaft bearing
wi
th its marked
damage the side facing up until it is fully seated, using the special
crankcase.
tools.
Be
sure
that
the
conflfJCting
rod ;s
located in the
crankcase opening.
TOOLS:
[2] Driver
[3]
Attachment
,
52
x 55
mm
[4J
Pilot
, 22 mm
07749-0010000
07746-0010400
07746-0041000
For transmission bearing replacement (page 12-14),
INSTALLATION
Apply 1 - 2 cm
3
of
oil to the connecting rod [1] big end.
Draw the crankshaft [2] into the right crankcase
(3)
bearing inner race using the special tool.
TOOLS:
[4]
Assembly
set
, 14 mm
U.S.A. TOOLS:
Threaded adapter,
(16 x 15) x (14 x 1.0)
mm
As
sembly
collar
Assembly
shaft
Special
nut
07JMF·KW70100
07AMF·KYKA100
07YMF·KPB0100
07931·ME4010B
07931·HB3020A
Install the transmission (page 12·16).
Assemble the crankcase (page 12-17).
TRANSMISSION
REMOVAL
Separate the crankcase halves (page 12·6).
Remove the mainshaft [1]. countershaft [2] and shift
drum [3]
as
an
assembly.
12-9
