Honda CRF110F - Cam Chain Guide Sprocket Removal

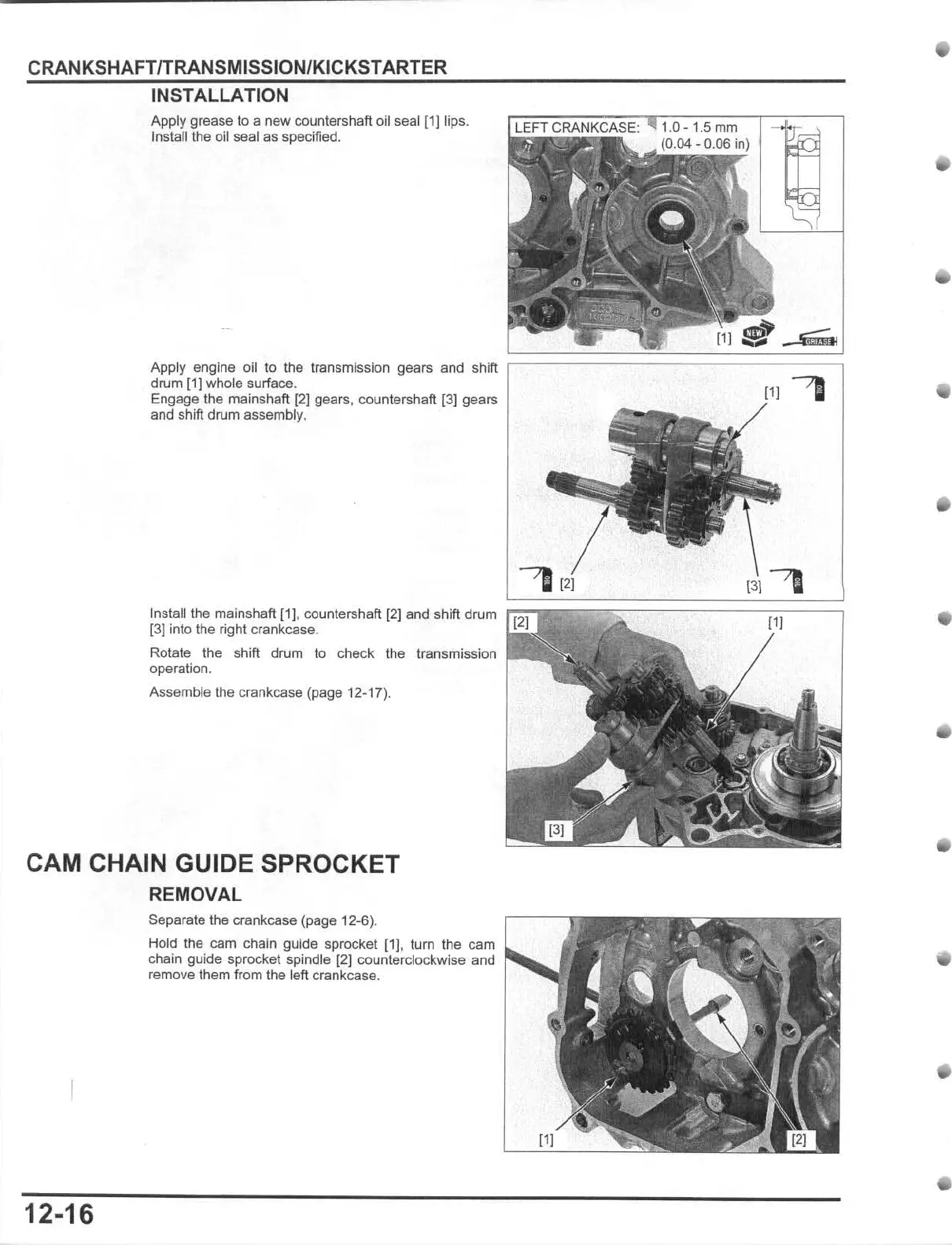

CRANKSHAFTITRANSMISSION/KICKSTARTER
INSTALLATION
App ly grease to a new counlershafl oil seal [1jlips .
Install the oil seal
as specified.
~========== ==== - = ~ ~
Apply engine oil to the transmission gears and shift I
I'
drum [1 ) whole surface.
Engage the mains haft {2] gears, counlershaft [3] gears
and shift drum assembly.
13] ,
Install the mainshaft (1]. counlershaft (2] and shift drum ~::;:;:::;:::~======:::::;::::=~
[3) into the right crankcase.
Rotate the shift drum to check the transmission
operation.
Assemble the crankcase (page 12-17).
CAM CHAIN GUIDE SPROCKET
REMOVAL
12·16
Separate the crankcase (page 12-6 ).
Hold the cam chain guide sprocket {1 j. tum the cam
chain guide sprocket spindle 12] counterclockwise and
remove them from the left crankcase.
•
