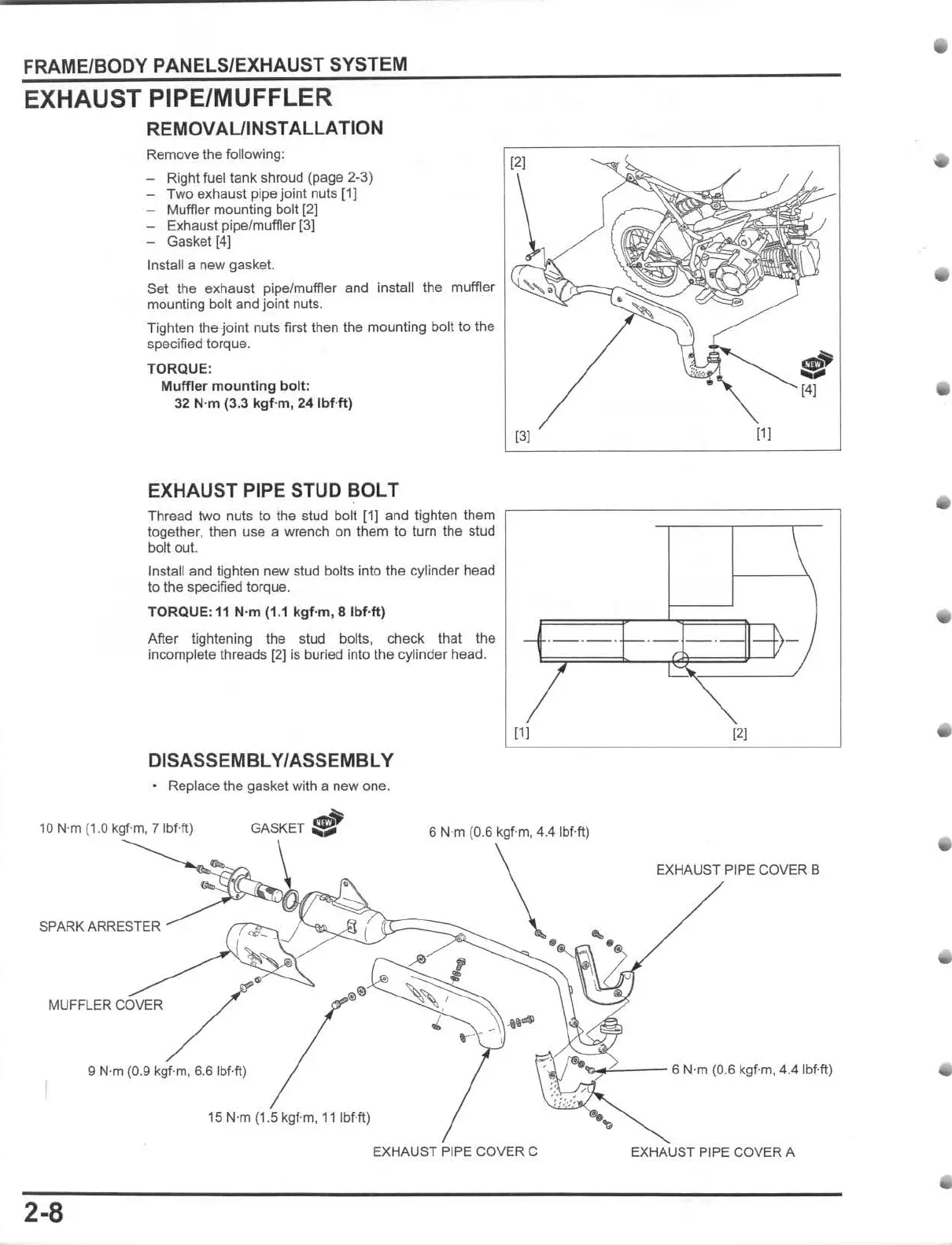

FRAME/BODY PANELS/EXHAUST SYSTEM
EXHAUST PIPE/MUFFLER
REMOVAUINSTALLATION
Remove the following:
- Righi fuel tank shroud (page
2-3)
- Two exhaust pipe joint nuts [11
- Muffler mounting bolt (2]
- Exhaust pipe/muffler [3]
- Gasket 14]
Install a new gasket.
Set the exhaust pipe/muffler and install the muffler
mounting bolt and join t nuts.
Tighten the joint nuts first then the mounting bolt to the
specified torque.
TORQUE:
Muffl er mo unt Ing bo lt :
32 N'm (3.3 kgf'm, 24 IbHt )
EXHAUST PIPE STUD BOLT
Thread two nuts to the stud bolt [1] and tighten them
together. then use a wrench on them to tum the stud
bailout.
Install and lighten new stud bolls into the cylinder head
to the specified torque.
TORQUE: 11 N'm (1 .1 kgf' m, 8 Ib H t)
After tightening the st ud botts, check thai the
incomplete threads [2J is buried into the cylinder head.
DISASSEMBLY/ASSEMBLY
• Replace the ga sket wi th a new one.
(3)
1,(
10 N'm (1.0 kgf'm, 7 IbHt)
GASKET $"
6 N'm (0.6 kgf.m. 4.4 IbUt)
SPARK ARRESTER
MUFFLER COVER /
9 N'm (0.9 kgf·m. 6.6 IbHt)
2-8
\.
EXHAUST PIPE COVER C
!$!"
....
141
\
+-
II 1\
\21
EXHAUST PIPE COVER B
~ '--- 6 N'm (0.6 kgf.m, 4.4 IbHt)
EXHAUST PIPE COVER A
