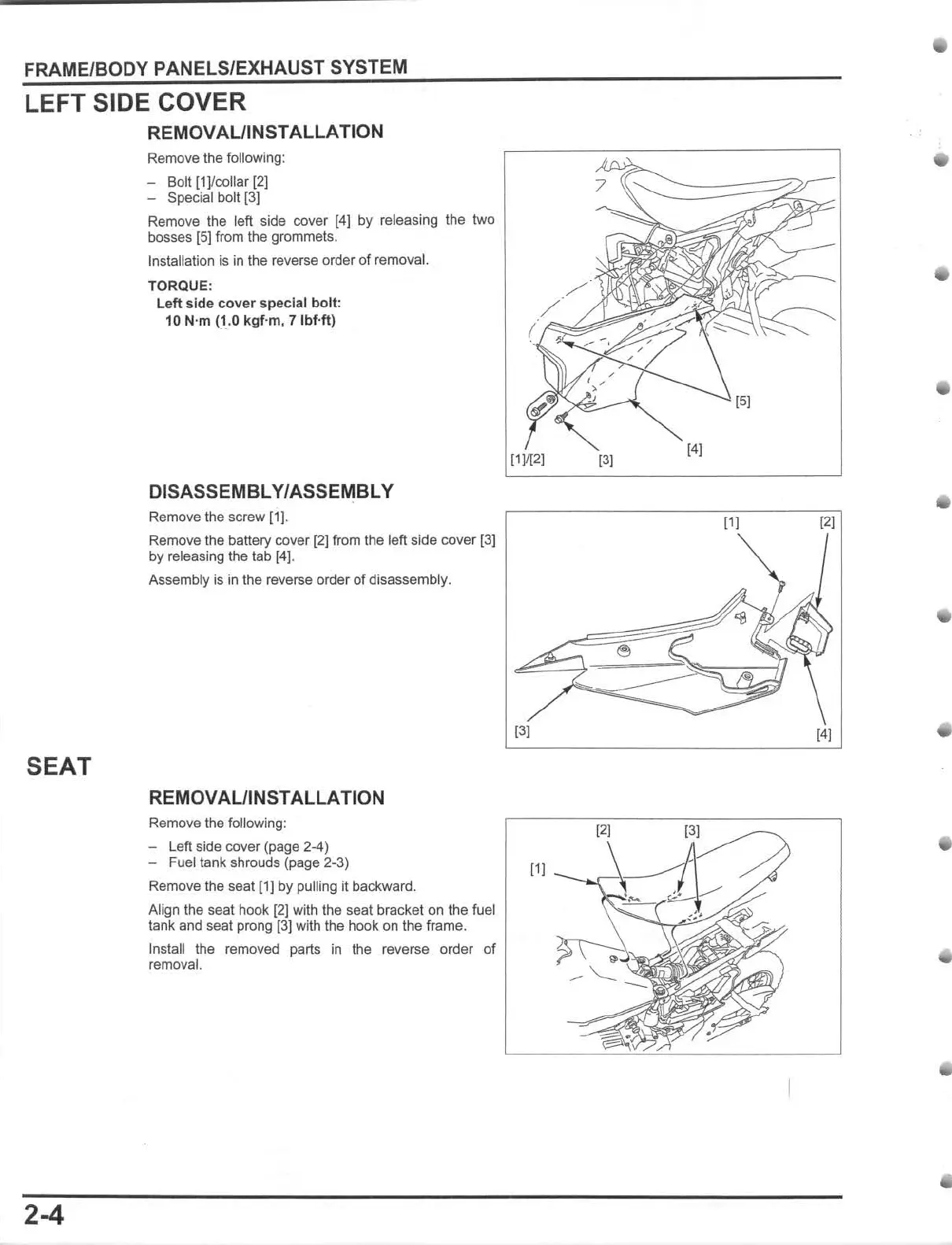

FRAME/BODY PANELS/EXHAUST SYSTEM
LEFT SIDE COVER
REMOVAUINSTALLATION
SEAT
2-4
Remove the following:
- Boll [1¥collar [2]
- Special bolt
[3]
Remove the left side cover
(4]
by
re
leasing the two
bosses
IS]
from
the grommets.
Inslallation
is
in the reverse
order
of removal.
TORQUE
:
Le
ft
side cover special bolt:
10
N'm (1.0
kgf
-m,
7lbHt)
DISASSEMBLY/ASSEMBLY
Remove the
screw
[1
].
Remove the battery
cover
[2] from t
he
left
side
cover
[3]
by releasing the tab
[4]
.
Assembly
is
in the reverse
orde
r
of
disassembly.
REMOVAUINSTALLA TION
Remove the following:
-
left
side cover (page 2-4)
- Fuel tank shrouds (page 2-3)
Remove the seat 11] by pulling it backward.
Align the seat
hook
12]
with the seat bracket on the fuel
tank and seat prong [3J with the
hook
on the frame.
Install the removed parts in the reverse order
of
removal.
•
)1)1]2)
13)
14)
•
11)
12)
13)
141
/1)
---r--\'
--~
