CLUTCH/GEARSHIFT LINKAGE
10-8

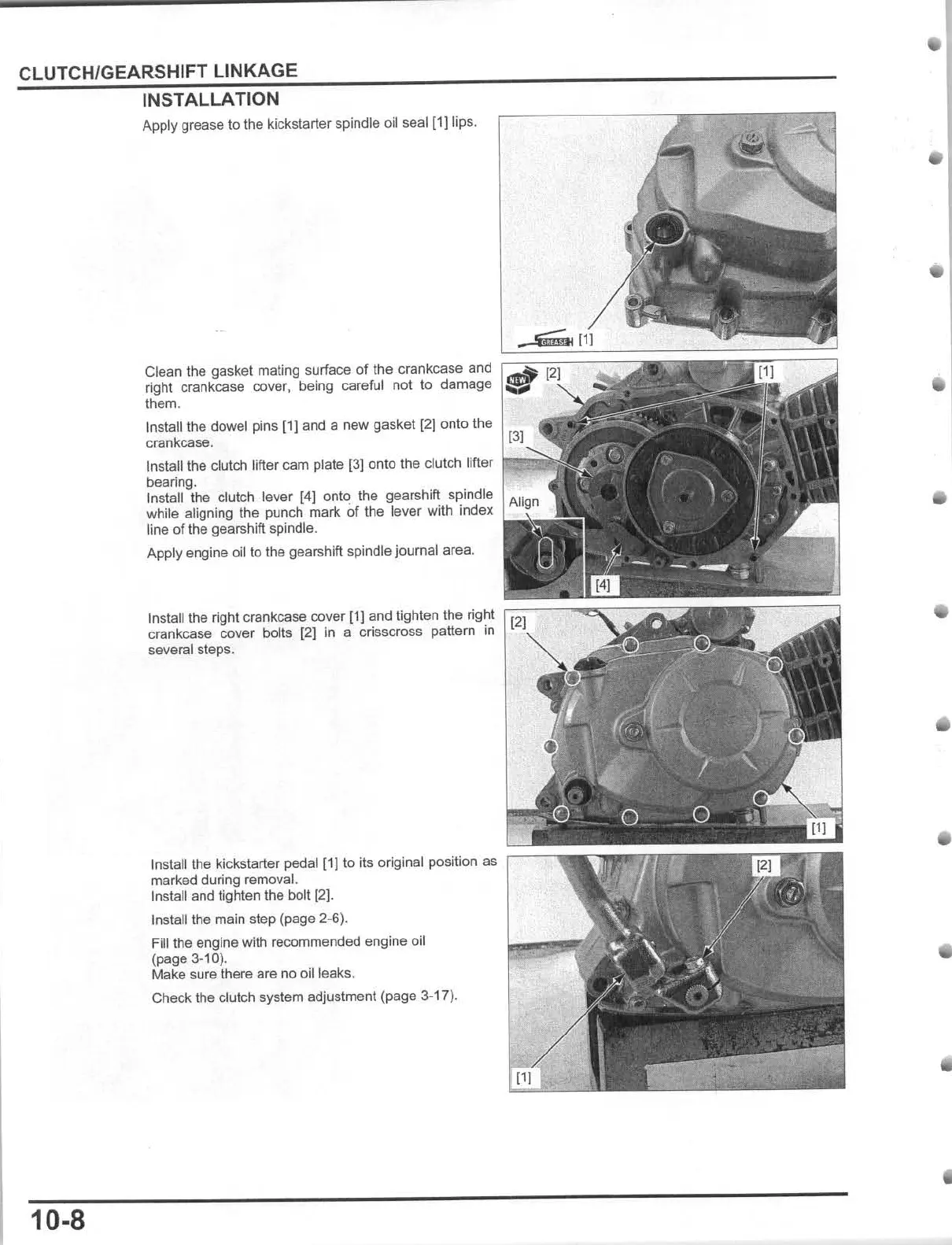

INSTALLATION
Apply grease to the kickstarter spindle oil seal
[1jlips.
Clean the gasket mating surface
of
the crankcase and
righ
t
crankcase
cover,
being
careful
not to damage
them.
Install the dowel pins
(1)
and a new gasket [2]
on
lo
the
crankcase.
InstaU
the clutch lifter cam plale [3] onlo the clutch lifter r-"';::;;'
bearing.
Install
the
clutch
lever
(4]
onto
th
e gearshift spindle
white aligning the punch mark
of
the lever with Index
line
of
the gearshift spindle.
Apply
engine
oil
to
the
gearshift spindle
Journal
area.
Install the right crankcase cover
11]
and tighten the right r -
--
...
"--=-
cran
kca
se
cover bolls
[2)
In a crisscross pattern
in
several sleps.
Install the kickstarter pedal (1) to its original position
as
marked
during
removal.
Install and tighten the boll [2].
Install the main step (page 2-6).
Fililhe
engine with recommended engine oil
(page 3-10).
Make sure there are no oil leaks.
Check the clutch system adjustment (page 3-17).
