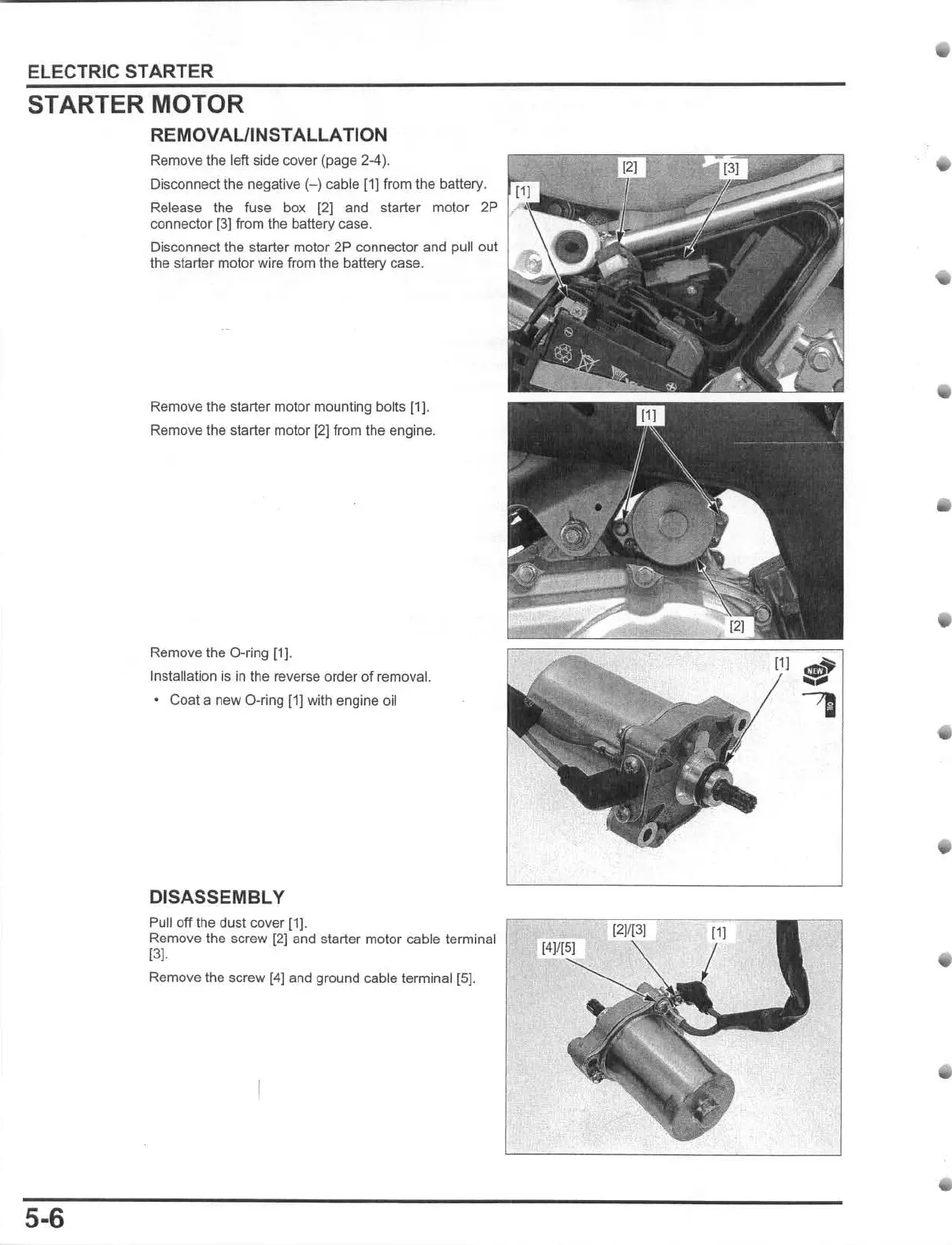

ELECTRIC STARTER
STARTER MOTOR
REMOVAUINSTALLATION
Remove the left side cover (page 2-4).
5·6
Disconnect the negative H cable {1} from the battery.
Release
the
fuse
box
[21
and
starter motor
2P
connector
(3]
from the battery case.
Disconnect the starter motor 2P connector and pull out
the starter
motor
wire from the battery case.
Remove the starter motor mounting bolts
(1
J.
Remove the starter motor (2] from the engine.
Remove
the
O-ring
[1
J.
Installation is in the reverse
order
of
removal.
•
Coat
a
new
D-ring
[1
) with
engine
oil
DISASSEMBLY
Pull
off
the
dust
cover [1}.
Remove the screw [2] and starter motor cable terminal
131·
Remove the screw [4] and ground cable terminal IS].
